FRONT HUB(KDX125-B4)
KDX125-B4 KDX125SR 1993 FRANCE

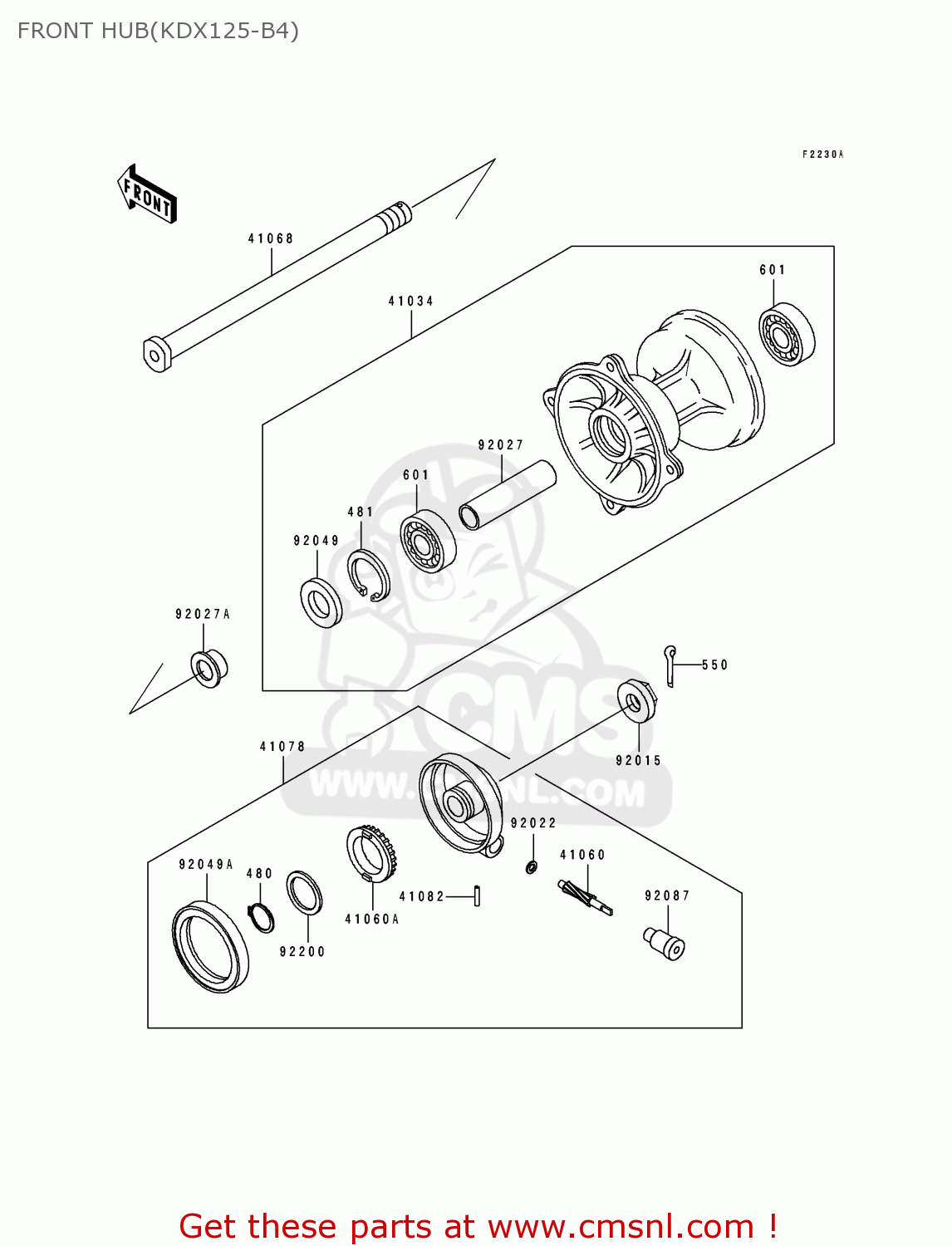

Front hub(kdx125-b4) diagram KDX125-B4 KDX125SR 1993 FRANCE
FRONT HUB(KDX125-B4) KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
480
480J2400
ref: 480
CIRCLIP-TYPE-C,24MM
€ 3.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
41034
410341217
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 485.50
41060
410601145
ref: 41060
GEAR-METER SCREW,8T
€ 16.50
41060A
410601146
ref: 41060A
GEAR-METER SCREW,24T
€ 26.00
41068
410681309
ref: 41068
AXLE,FR
€ 46.00
41078
410781096
ref: 41078
CASE-ASSY-METER GEAR
€ 94.00
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92022
920221511
ref: 92022
WASHER,5X9.5X0.8
€ 2.50
92027
920271958
ref: 92027
COLLAR,15.2X19X75
€ 30.00
92027A
920271959
ref: 92027A
COLLAR,L=12
€ 10.50
92049
920491176
ref: 92049
SEAL-OIL,MH20354.5
€ 10.00
92049A
920491399
ref: 92049A
SEAL-OIL,SDD 50 62 7
€ 13.00
92087
920871060
ref: 92087
BUSHING-METER GEAR
€ 12.50
92200
922001137
ref: 92200
WASHER,24X31X0.8
€ 2.50
