ELECTRICAL EQUIPMENT
KDX125-B4 KDX125SR 1993 FRANCE

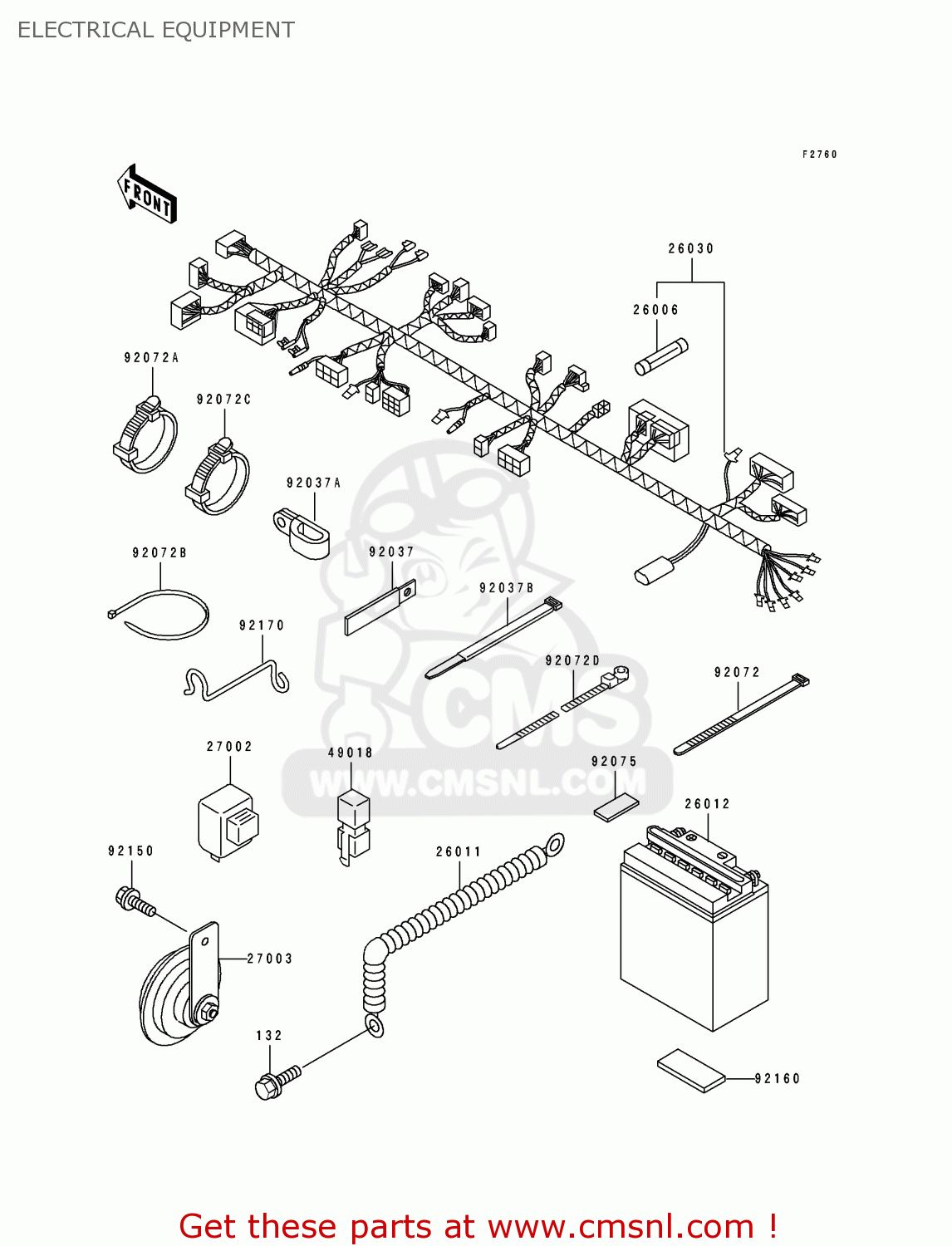

Electrical equipment diagram KDX125-B4 KDX125SR 1993 FRANCE
ELECTRICAL EQUIPMENT KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
26006
260061056
ref: 26006
FUSE,20A,L=30
€ 3.00
26011
260111491
ref: 26011
WIRE-LEAD,RADIATOR
€ 9.50
26012
260121248
ref: 26012
BATTERY,12V 3AH,YB3L-
€ 38.00
26030
260301122
ref: 26030
HARNESS,MAIN
€ 218.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031336
ref: 27003
HORN
€ 61.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371608
ref: 92037A
CLAMP
€ 5.50
92037B
920371817
ref: 92037B
CLAMP,BAND,L=137
€ 8.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072056
ref: 92072A
BAND,RUBBER
€ 3.00
92072B
920721195
ref: 92072B
BAND,L=185
€ 1.00
92072C
920721237
ref: 92072C
BAND,L=250
€ 2.00
92072D
920721288
ref: 92072D
BAND,L=215
€ 6.00
92075
920751727
ref: 92075
DAMPER
€ 2.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92160
921601073
ref: 92160
DAMPER
€ 5.00
92170
921701240
ref: 92170
CLAMP
€ 5.00
