CYLINDER HEAD/CYLINDER
KDX125-B4 KDX125SR 1993 FRANCE

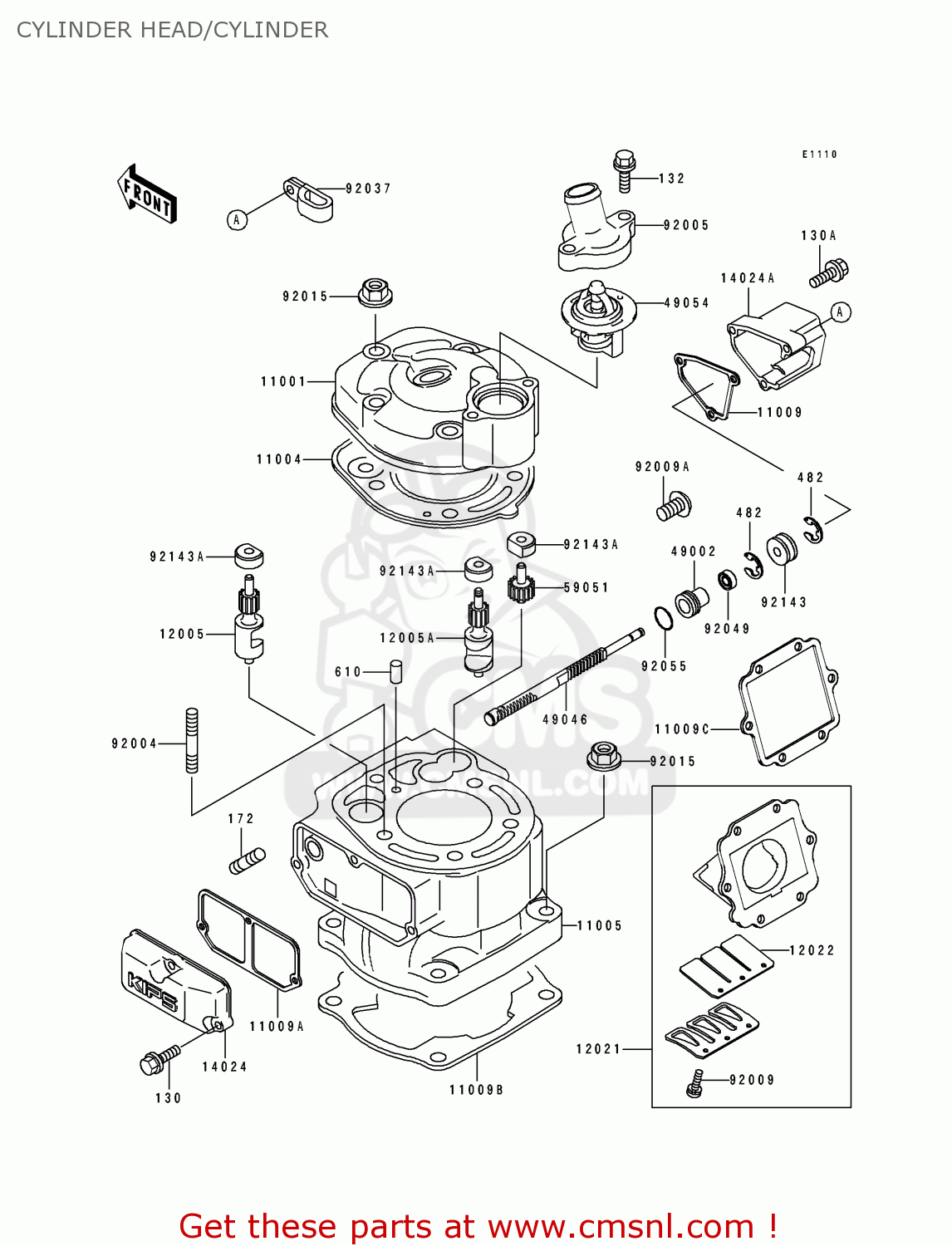

Cylinder head/cylinder diagram KDX125-B4 KDX125SR 1993 FRANCE
CYLINDER HEAD/CYLINDER KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
130
130G0520
ref: 130
BOLT-FLANGED
€ 1.00
130A
130G0525
ref: 130A
BOLT-FLANGED
€ 0.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
172
172G0822
ref: 172
BOLT-STUD,8X22
€ 1.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
11001
110011347
ref: 11001
HEAD-CYLINDER
€ 167.00
11004
110041205
ref: 11004
GASKET-HEAD (NAS)
€ 25.00
11005
110051614
ref: 11005
CYLINDER-ENGINE
€ 570.50
11009
110091934
ref: 11009
GASKET,RH,GOVERNOR (NAS)
€ 4.00
11009A
110091938
ref: 11009A
GASKET,LH,RESONATOR (NAS)
€ 3.50
11009B
110091940
ref: 11009B
GASKET,CYLINDER BASE (NAS)
€ 6.50
11009C
110091941
ref: 11009C
GASKET,REED VALVE (NAS)
€ 6.00
12005
120051180
ref: 12005
VALVE-EXHAUST,LH
€ 54.00
12005A
120051181
ref: 12005A
VALVE-EXHAUST,RH
€ 54.00
12021
120211083
ref: 12021
VALVE-ASSY-REED
€ 107.50
12022
120221063
ref: 12022
VALVE-REED
€ 18.50
14024
140241565
ref: 14024
COVER,RESONATOR
€ 22.50
14024A
140241786
ref: 14024A
COVER,GOVERNOR
€ 12.00
49002
490021083
ref: 49002
GUIDE-VALVE
€ 12.50
49046
490461068
ref: 49046
ROD-GOVERNOR
€ 59.00
49054
490541063
ref: 49054
THERMOSTAT
€ 46.00
59051
590511190
ref: 59051
GEAR-SPUR,IDLE
€ 23.50
92004
920041009
ref: 92004
STUD, 8X35
€ 4.00
92005
920051205
ref: 92005
FITTING,THERMOSTAT
€ 20.00
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92009A
920091502
ref: 92009A
SCREW
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92037
920371608
ref: 92037
CLAMP
€ 5.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
920551399
ref: 92055
RING-O,14.5X1.5
€ 3.00
92143
921431056
ref: 92143
COLLAR
€ 6.50
92143A
921431147
ref: 92143A
COLLAR,VALVE
€ 9.00
