STEP
KDX125-B4 KDX125SR 1993 FRANCE

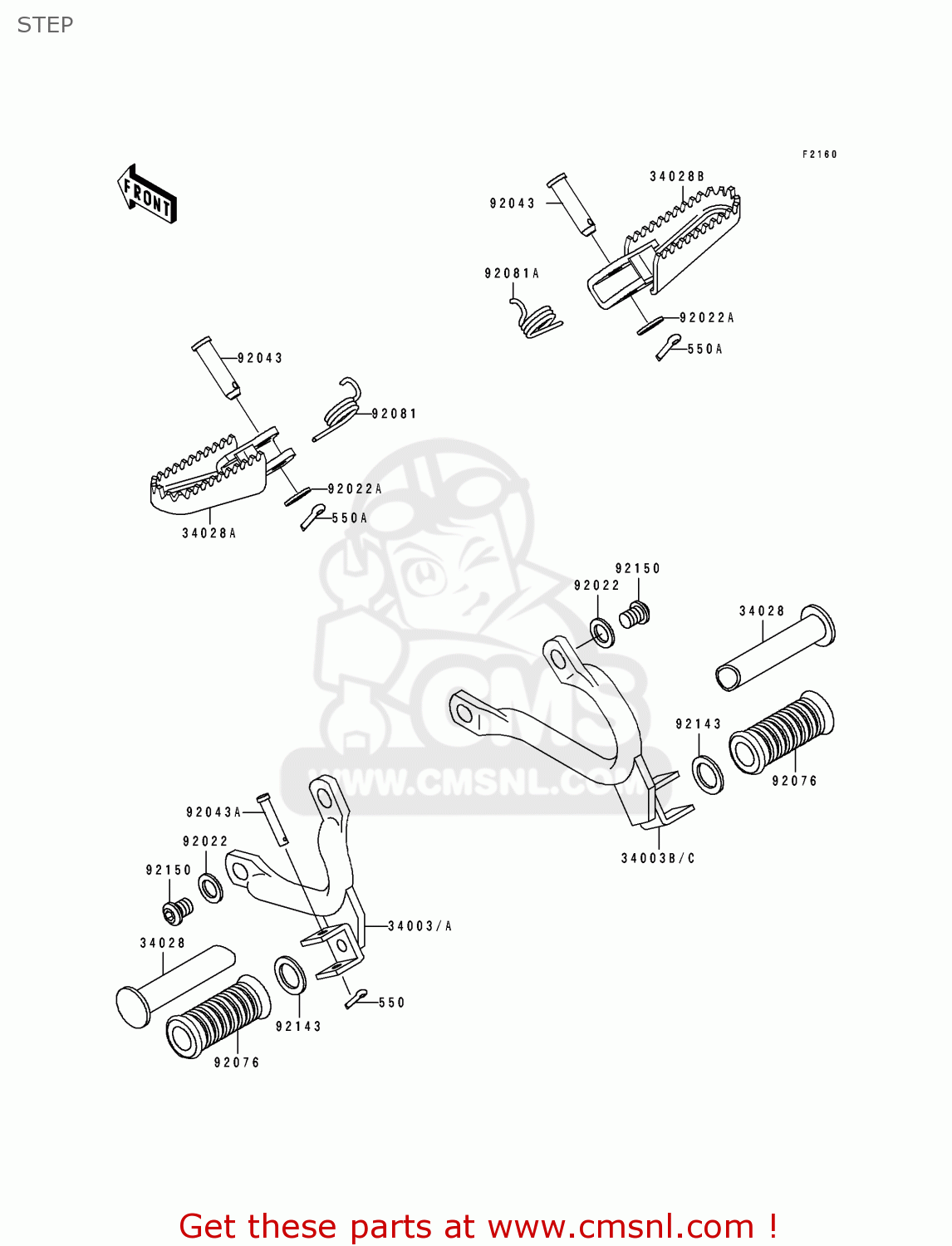

Step diagram KDX125-B4 KDX125SR 1993 FRANCE
STEP KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
550A
550D2018
ref: 550A
PIN-COTTER,2.0X18
€ 1.50
34003
340031335CC
ref: 34003
HOLDER-STEP,LH,L.GREE
€ 33.50
34003A
340031335W1
ref: 34003A
HOLDER-STEP,LH,BLUE N
€ 33.50
34003B
340031336CC
ref: 34003B
HOLDER-STEP,RH,L.GREE
€ 38.00
34003C
340031336W1
ref: 34003C
HOLDER-STEP,RH,BLUE N
€ 38.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
34028A
340281302
ref: 34028A
STEP,LH
€ 26.50
34028B
340281303
ref: 34028B
STEP,RH
€ 41.00
92022
920221829
ref: 92022
WASHER,10.2X16X1
€ 2.50
92022A
92022239
ref: 92022A
WASHER-PLAIN
€ 2.50
92043
920431217
ref: 92043
PIN,10X37.5
€ 7.50
92043A
920431464
ref: 92043A
PIN
€ 5.50
92076
92076020
ref: 92076
DAMPER
€ 7.50
92081
920811606
ref: 92081
SPRING,STEP,LH
€ 6.50
92081A
920811607
ref: 92081A
SPRING,STEP,RH
€ 6.50
92143
921431467
ref: 92143
COLLAR
€ 2.50
92150
921501111
ref: 92150
BOLT,SOCKET,10X16
€ 4.00
