KICKSTARTER MECHANISM
KDX125-B4 KDX125SR 1993 FRANCE

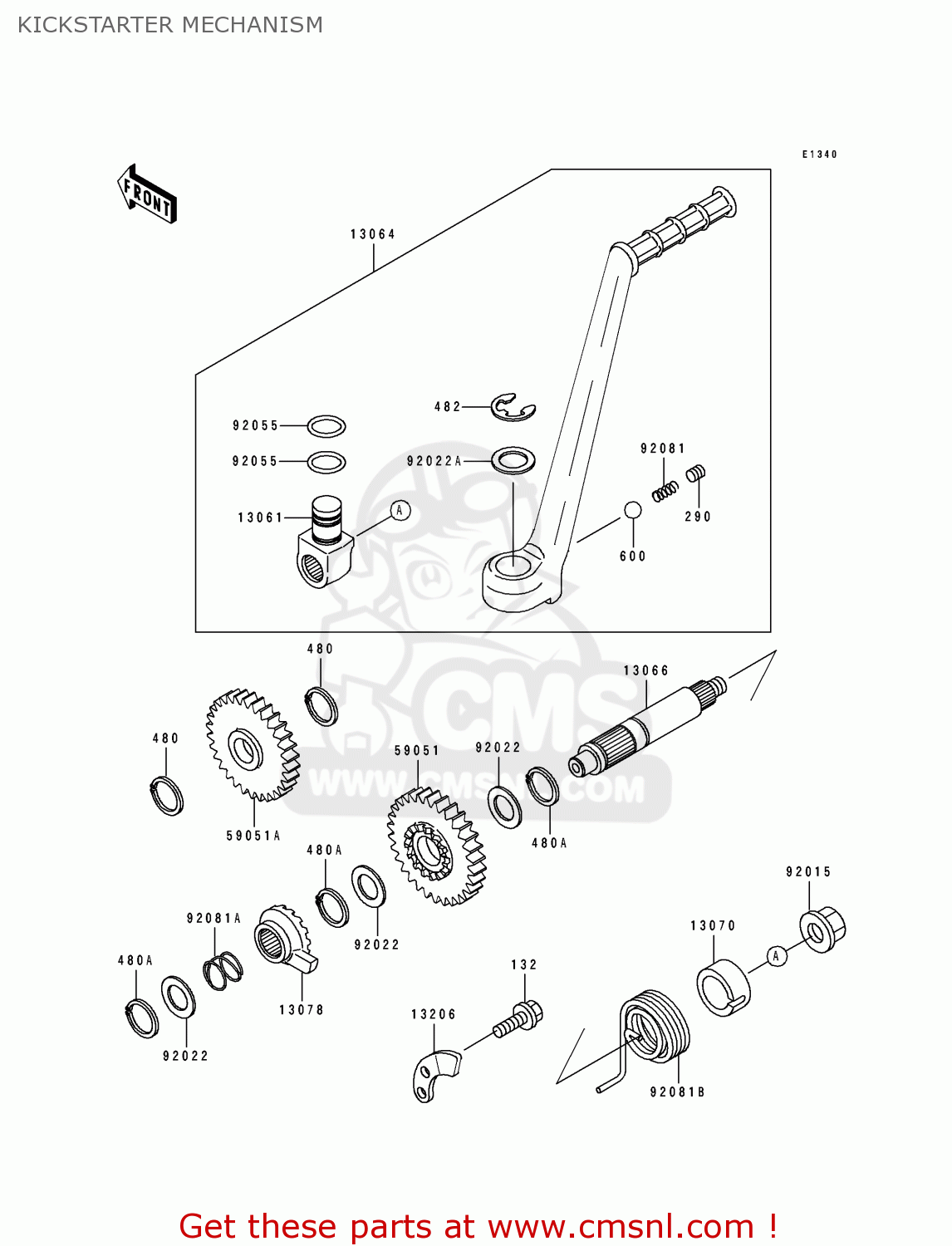

Kickstarter mechanism diagram KDX125-B4 KDX125SR 1993 FRANCE
KICKSTARTER MECHANISM KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
480
480J1500
ref: 480
CIRCLIP-TYPE-C,15MM
€ 1.00
480A
480J1600
ref: 480A
CIRCLIP-TYPE-C,16MM
€ 2.50
482
482L0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611331
ref: 13061
BOSS,KICK PEDAL
€ 54.00
13064
130641151
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 117.50
13066
130661074
ref: 13066
SHAFT-KICK
€ 89.00
13070
130701007
ref: 13070
GUIDE,KICK SPRING
€ 6.50
13078
130781052
ref: 13078
RATCHET,KL250-D2
€ 50.50
13206
132061061
ref: 13206
GUIDE-KICK
€ 7.00
59051
590511228
ref: 59051
GEAR-SPUR,KICKSTARTER
€ 72.00
59051A
590511229
ref: 59051A
GEAR-SPUR,IDLE,34T
€ 71.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
€ 7.00
92022
92022315
ref: 92022
WASHER, 16.8X22X0.5
€ 4.00
92022A
92022318
ref: 92022A
WASHER
€ 3.50
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811768
ref: 92081B
SPRING,KICKSTARTER
€ 11.00
