BRAKE PEDAL

KDX125-B4 KDX125SR 1993 FRANCE

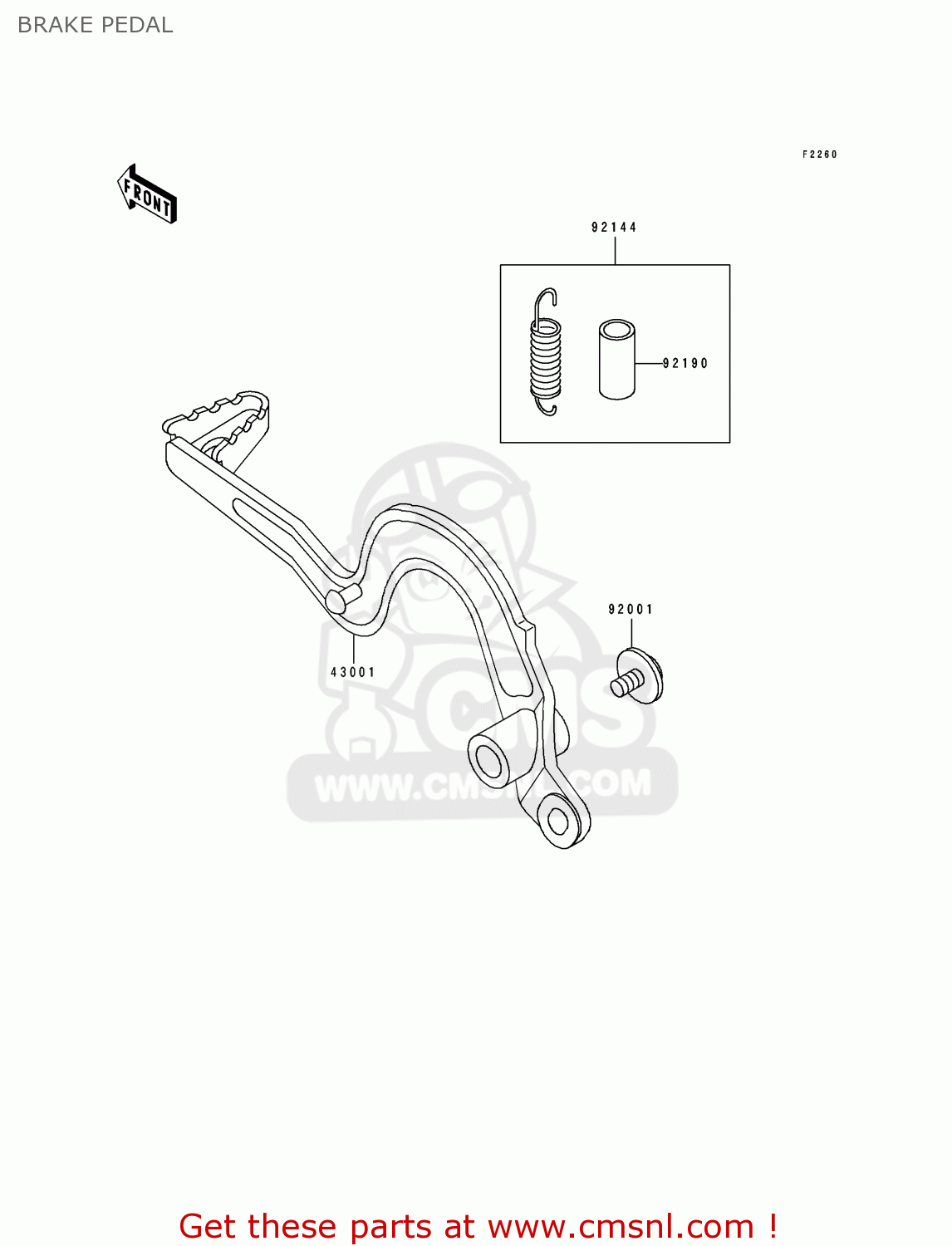

Brake pedal diagram KDX125-B4 KDX125SR 1993 FRANCE

BRAKE PEDAL KDX125-B4 KDX125SR 1993 FRANCE
BRAKE PEDAL KDX125-B4 KDX125SR 1993 FRANCE
BRAKE PEDAL KDX125-B4 KDX125SR 1993 FRANCE
prices are in EUR
ref
part #
description
quantity
43001
430011300
ref: 43001
LEVER-BRAKE,PEDAL
430011300
€ 47.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
920011034
€ 7.00
92144
921441632
ref: 92144
SPRING,BRAKE PEDAL RE
921441632
€ 4.00
92190
921901252
ref: 92190
TUBE,12X15X18
€ 3.00
