GEAR CHANGE MECHANISM
KDX125-B4 KDX125SR 1993 FRANCE

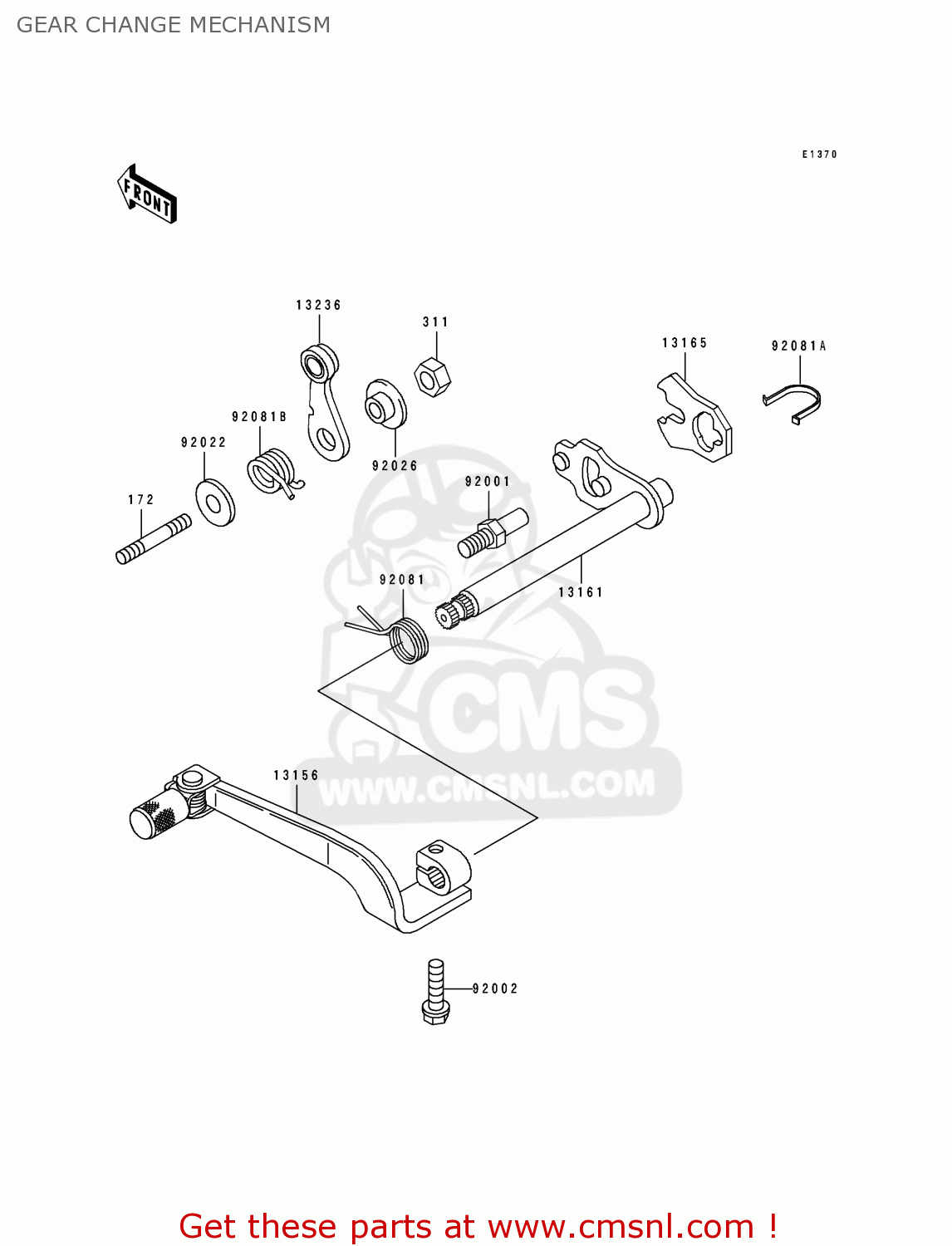

Gear change mechanism diagram KDX125-B4 KDX125SR 1993 FRANCE
GEAR CHANGE MECHANISM KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
172
172G0612
ref: 172
BOLT-STUD,6X12
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
13156
131561269
ref: 13156
LEVER-CHANGE,PEDAL
€ 60.00
13161
131611132
ref: 13161
LEVER-COMP-CHANGE SHA
€ 49.50
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361146
ref: 13236
LEVER-COMP,POSITION
€ 7.50
92001
920011455
ref: 92001
BOLT
€ 3.00
92002
920021339
ref: 92002
BOLT,6X25
€ 2.50
92022
920221827
ref: 92022
WASHER,6X12.8X1.2
€ 3.00
92026
920261217
ref: 92026
SPACER
€ 3.50
92081
920811750
ref: 92081
SPRING,CHANGE PEDAL R
€ 7.50
92081A
920811829
ref: 92081A
SPRING,CHANGE LEVER
€ 6.00
92081B
920811993
ref: 92081B
SPRING,POSITION LEVER
€ 4.00
