MUFFLER
KDX125-B4 KDX125SR 1993 FRANCE

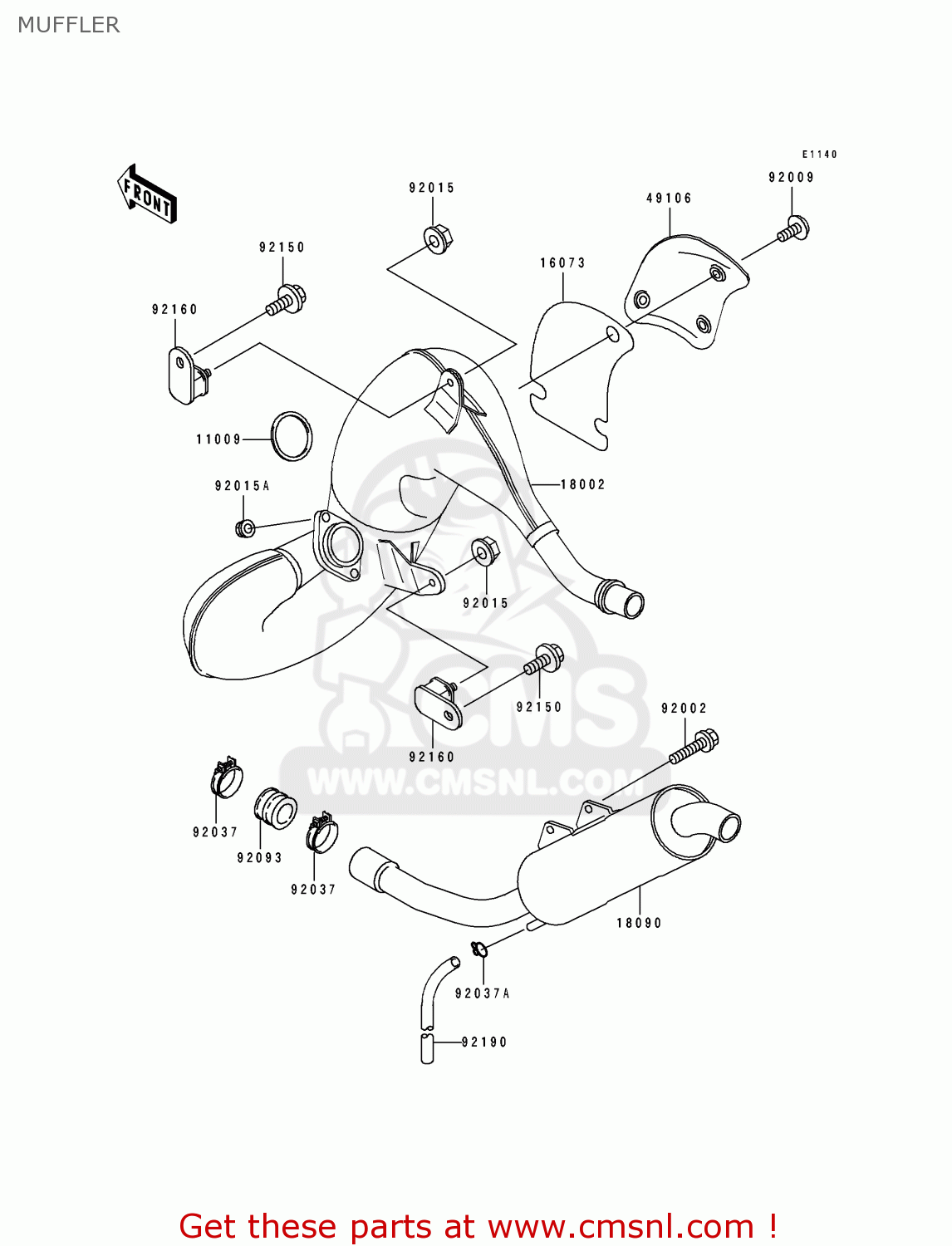

Muffler diagram KDX125-B4 KDX125SR 1993 FRANCE
MUFFLER KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
11009
110091992
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 5.50
16073
160731085
ref: 16073
INSULATOR
€ 29.50
18002
180021958
ref: 18002
BODY-COMP-MUFFLER
€ 409.00
18090
180901149
ref: 18090
MUFFLER-ASSY
€ 172.50
49106
491061121
ref: 49106
COVER-MUFFLER
€ 26.00
92002
920021417
ref: 92002
BOLT,FLANGED,8X20
€ 2.50
92009
920091618
ref: 92009
SCREW,6X6
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151183
ref: 92015A
NUT,FLANGED,8MM,BLACK
€ 1.00
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92093
920931012
ref: 92093
SEAL,EXHAUST PIPE
€ 24.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92160
921601176
ref: 92160
DAMPER,MUFFLER,FR
€ 19.00
92190
921901305
ref: 92190
TUBE
€ 12.00
