FRONT FORK(KDX125-B4)
KDX125-B4 KDX125SR 1993 FRANCE

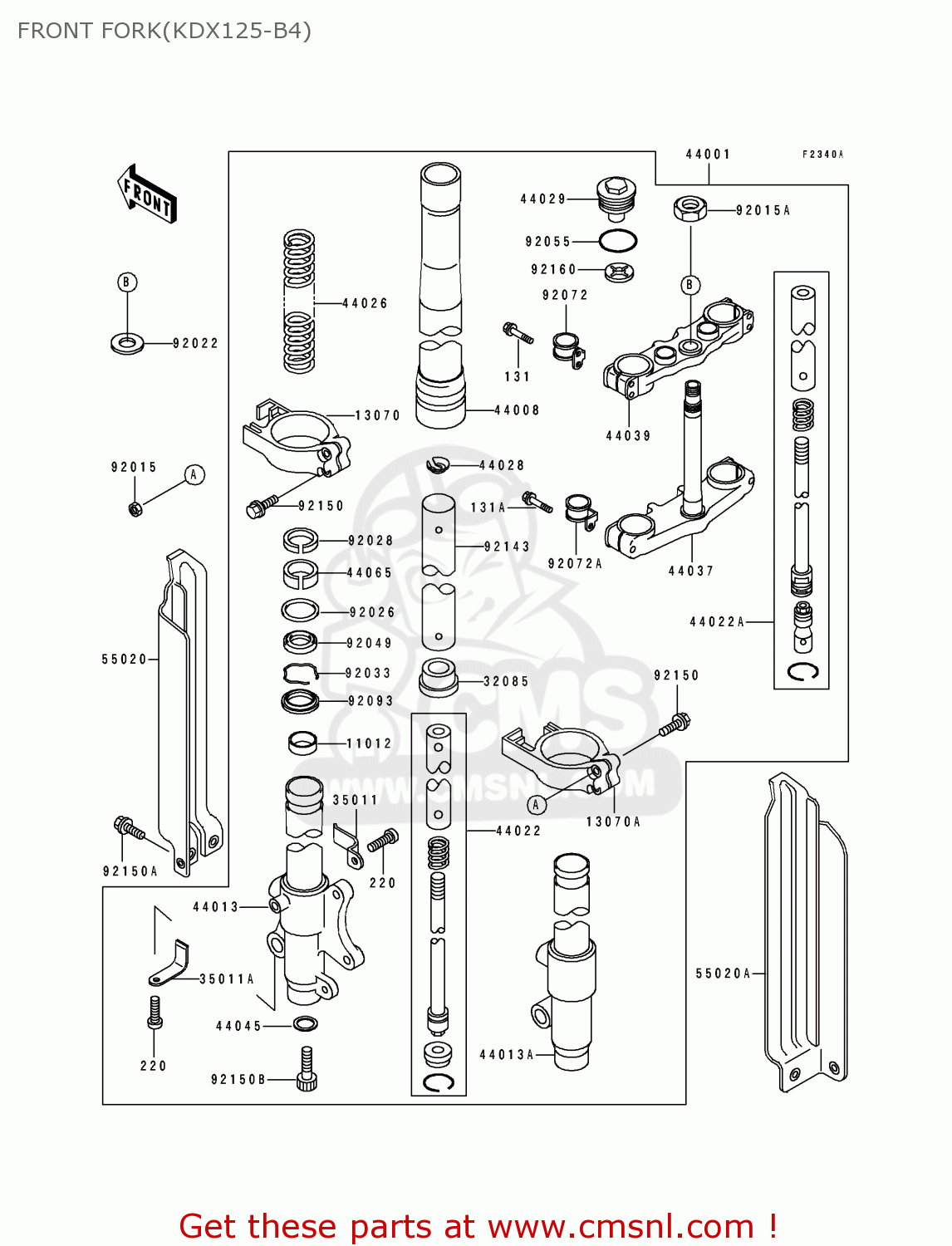

Front fork(kdx125-b4) diagram KDX125-B4 KDX125SR 1993 FRANCE
FRONT FORK(KDX125-B4) KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
131
131G0850
ref: 131
BOLT-FLANGED
€ 1.00
131A
131G1045
ref: 131A
BOLT-FLANGED
€ 5.50
220
220B0506
ref: 220
SCREW-PAN-CROS
€ 1.50
11012
110121761
ref: 11012
CAP
€ 26.00
13070
130701263
ref: 13070
GUIDE,FORK,LH
€ 22.00
13070A
130701264
ref: 13070A
GUIDE,FORK,RH
€ 22.00
32085
320851327
ref: 32085
STOPPER
€ 14.50
35011
350111546
ref: 35011
STAY
€ 11.50
35011A
350111547
ref: 35011A
STAY
€ 11.50
44001
440011859
ref: 44001
FORK-FRONT
€ 3,450.50
44008
440081010
ref: 44008
PIPE-FORK OUTER
€ 491.50
44013
440131329
ref: 44013
PIPE-FORK INNER,LH
€ 336.00
44013A
440131330
ref: 44013A
PIPE-FORK INNER,RH
€ 320.50
44022
440221259
ref: 44022
CYLINDER-FORK,LH
€ 328.50
44022A
440221260
ref: 44022A
CYLINDER-FORK,RH
€ 328.50
44026
440261472
ref: 44026
SPRING-FRONT FORK
€ 45.50
44028
440281076
ref: 44028
GUIDE-FORK SPRING
€ 8.00
44029
440291145
ref: 44029
SEAT-FORK SPRING
€ 52.50
44037
440371301
ref: 44037
HOLDER-FORK UNDER
€ 450.50
44039
440391228
ref: 44039
HOLDER-FORK UPPER
€ 258.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651100
ref: 44065
BUSHING-FRONT FORK
€ 33.00
55020
550201397RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 40.00
55020A
550201470RZ
ref: 55020A
GUARD,FORK,RH
€ 40.00
92015
920151224
ref: 92015
NUT,FORK TOP
€ 11.50
92015A
920151832
ref: 92015A
NUT
€ 17.00
92022
920221385
ref: 92022
WASHER,FORK TOP
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92028
920281614
ref: 92028
BUSHING
€ 19.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92049
920491370
ref: 92049
SEAL-OIL
€ 17.50
92055
920551485
ref: 92055
RING-O
€ 3.00
92072
920721271
ref: 92072
BAND
€ 13.00
92072A
920721278
ref: 92072A
BAND
€ 17.00
92093
920931312
ref: 92093
SEAL,FORK OUTER TUBE
€ 19.00
92143
921431447
ref: 92143
COLLAR
€ 139.50
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501432
ref: 92150B
BOLT
€ 6.50
92160
921601243
ref: 92160
DAMPER
€ 8.00
