TURN SIGNALS/CHASSIS ELECTRICAL
G5 1972 CANADA

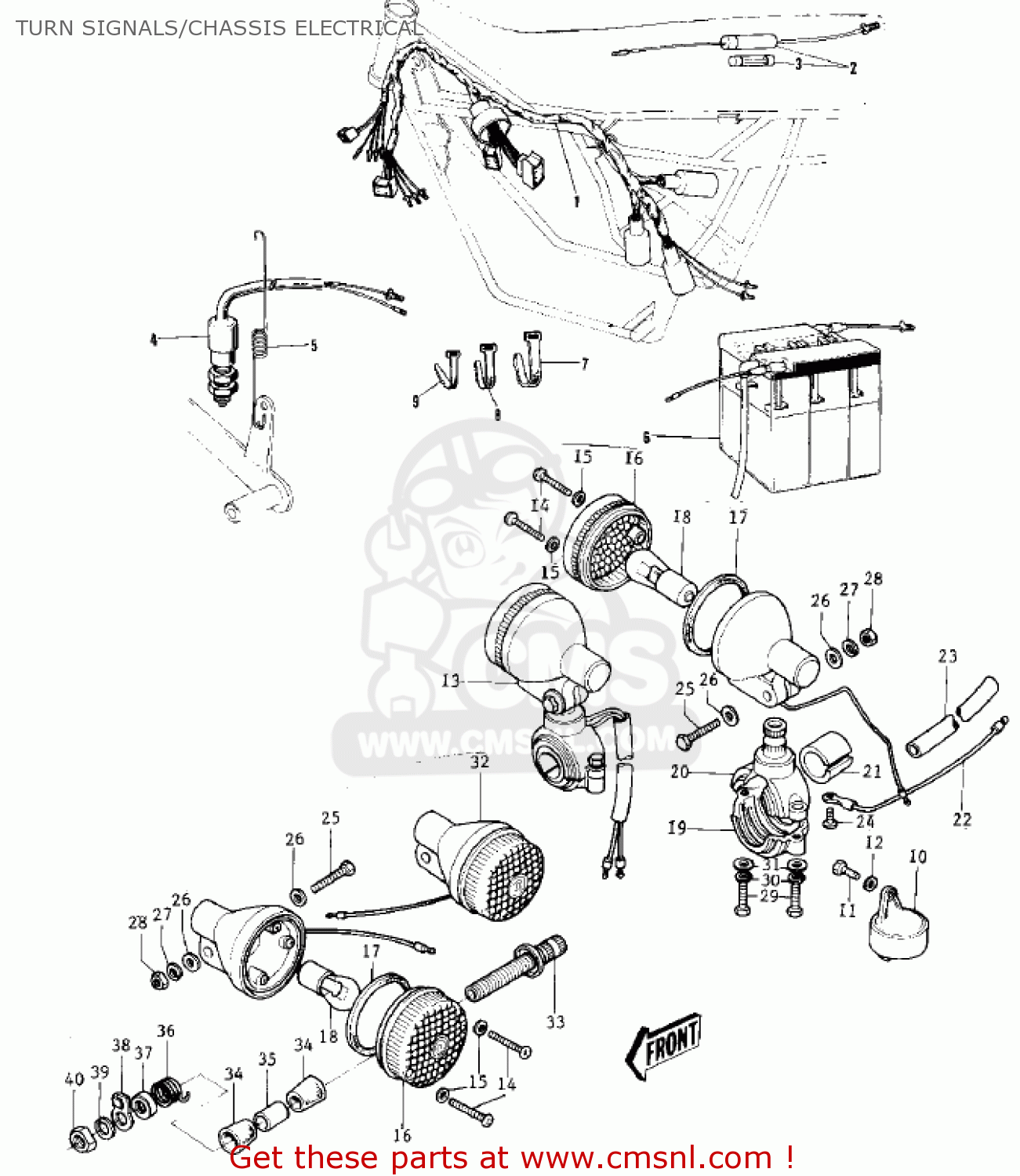

Turn signals/chassis electrical diagram G5 1972 CANADA
TURN SIGNALS/CHASSIS ELECTRICAL G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
26001063
ref: 1
WIRING HARNESS-MAIN
€ 68.50
2
26004008
ref: 2
FUSE-ASSY
€ 13.00
3
26006003
ref: 3
FUSE 10A
€ 3.00
4
27010015
ref: 4
SWITCH,BRAKE LAMP
€ 23.00
5
27011011
ref: 5
SPRING,BRAKE LAMP SW
€ 5.50
6
K26012006
ref: 6
BATTERY,YUA,6N4-2A-3
€ 69.00
7
92072030
ref: 7
BAND,SHORT
€ 3.00
8
92072031
ref: 8
BAND,MIDDLE
€ 3.00
9
92072032
ref: 9
BAND,LONG
€ 3.00
10
27002015
ref: 10
RELAY-ASSY,TURN SIGNA
€ 33.50
11
112B0614
ref: 11
BOLT-UPSET 6X14
€ 2.50
11
112B0614
ref: 11
BOLT-UPSET 6X14
€ 2.50
12
92022125
ref: 12
WASHER,6.5X20X1.6
€ 1.00
13
23037005
ref: 13
LAMP ASY-FR TURN SIG
€ 53.50
14
220E0420A
ref: 14
SCREW-PAN HEAD,4X20
€ 2.50
15
23058002
ref: 15
WASHER,PLAIN,4MM
€ 2.00
16
230481001
ref: 16
LENS-SIGNAL LAMP,045-
€ 10.50
17
23050003
ref: 17
GASKET,SIGNAL LAMP (NAS)
€ 3.50
18
92069056
ref: 18
BULB,6V 21CP
€ 4.50
19
230511013
ref: 19
BRACKET-SIGNAL LAMP,F
€ 11.50
20
230511004
ref: 20
BRACKET-SIGNAL LAMP,F
€ 23.00
21
23066003
ref: 21
DAMPER
€ 3.50
22
26011061
ref: 22
WIRE-LEAD,SIGNAL LAMP
€ 2.50
23
26009004
ref: 23
COVER-WIRING HARNESS
€ 1.00
24
220B0305A
ref: 24
SCREW-PAN HEAD,3X5
€ 1.00
25
112G0630
ref: 25
BOLT-UPSET
€ 1.00
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
€ 0.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
€ 0.50
28
311B0600
ref: 28
NUT,6MM
€ 0.50
29
110N0516
ref: 29
BOLT,5X16
€ 2.00
30
461F0500
ref: 30
WASHER-SPRING,5MM
€ 0.50
31
410D0500
ref: 31
WASHER-PLAIN,5MM
€ 1.50
32
23040033
ref: 32
LAMP-SIGNAL
€ 59.00
33
23051037
ref: 33
BKT-RR SIGNAL LAMP
€ 30.00
34
92075148
ref: 34
DAMPER RUBBER
€ 2.00
35
92027168
ref: 35
COLLAR
€ 2.50
36
92081111
ref: 36
SPRING
€ 2.00
37
92022235
ref: 37
WASHER-PLAIN
€ 3.00
38
92037087
ref: 38
CLAMP-RR SIGNAL LAMP
€ 2.50
39
461F1200
ref: 39
WASHER-SPRING,12MM
€ 0.50
40
315B1200
ref: 40
NUT,12MM
€ 0.50
