CLUTCH ('72-'73 G5-A)
G5 1972 CANADA

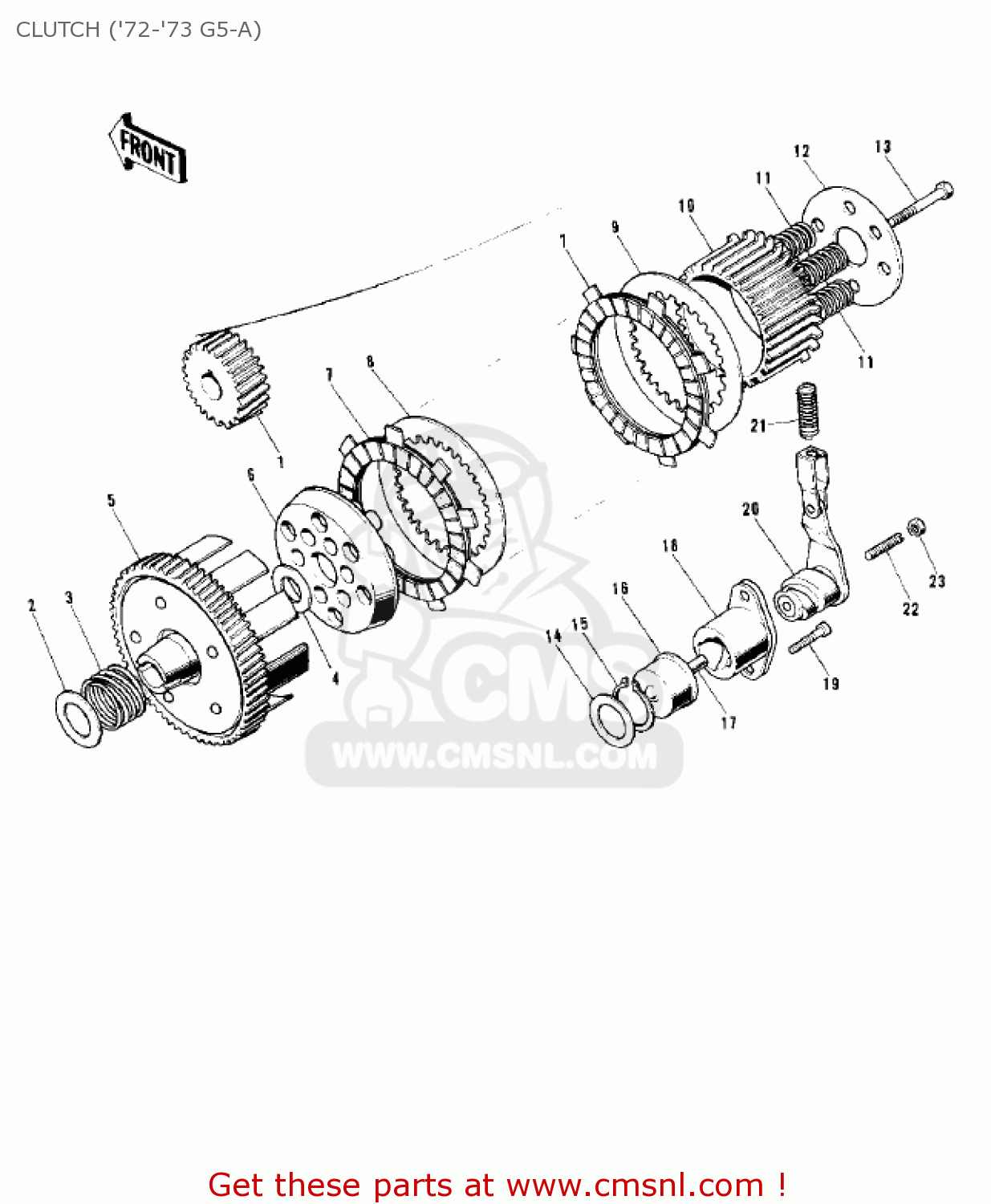

Clutch ('72-'73 g5-a) diagram G5 1972 CANADA
CLUTCH ('72-'73 G5-A) G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13121032
ref: 1
GEAR-PRIMARY SPUR
€ 92.50
2
92022057
ref: 2
O.D-36
WASHER,25.5X36X1
€ 2.50
3
92081015
ref: 3
SPRING-CLUTCH DAMPER
€ 4.00
4
92022054
ref: 4
O.D-27
WASHER,16.5X27X1.4
€ 4.50
?
13081028
ref: ?
Includes items 5 - 1
CLUTCH ASSY
€ 193.00
5
13095022
ref: 5
HOUSING,CLUTCH
€ 216.00
6
130861002
ref: 6
WHEEL,CLUTCH
€ 33.00
7
130881103
ref: 7
PLATE-FRICTION (MCA)
€ 11.00
8
130891009
ref: 8
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
9
13090004
ref: 9
PLATE-CLUTCH,OUTER (NAS)
€ 11.50
10
130871011
ref: 10
HUB-CLUTCH
€ 74.00
11
92081012
ref: 11
SPRING-CLUTCH
€ 4.00
12
130911115
ref: 12
HOLDER,CLUTCH SPRING
€ 12.50
13
112G0516
ref: 13
BOLT-UPSET
€ 0.50
14
92022053
ref: 14
O.D-21
WASHER,THRUST,16.5X21
€ 2.50
15
480J1600
ref: 15
CIRCLIP-TYPE-C,16MM
€ 2.50
16
13113003
ref: 16
PUSHER-COMP-CLUTCH
€ 6.50
17
610A0710
ref: 17
ROLLER,7X10
€ 4.50
18
13118001
ref: 18
OUTER-CLUTCH RELEASE
€ 19.50
19
220B0616
ref: 19
SCREW-PAN HEAD,6X16
€ 2.50
20
13102004
ref: 20
INNER-CLUTCH RELEASE
€ 26.00
21
92081096
ref: 21
SPRING-CLUTCH RELEASE
€ 3.50
22
291Z0628
ref: 22
SCREW-SLOTTED,6X28
€ 2.50
23
311B0600
ref: 23
NUT,6MM
€ 0.50
