AIR CLEANER/MUFFLER ('72-'73 G5-
G5 1972 CANADA

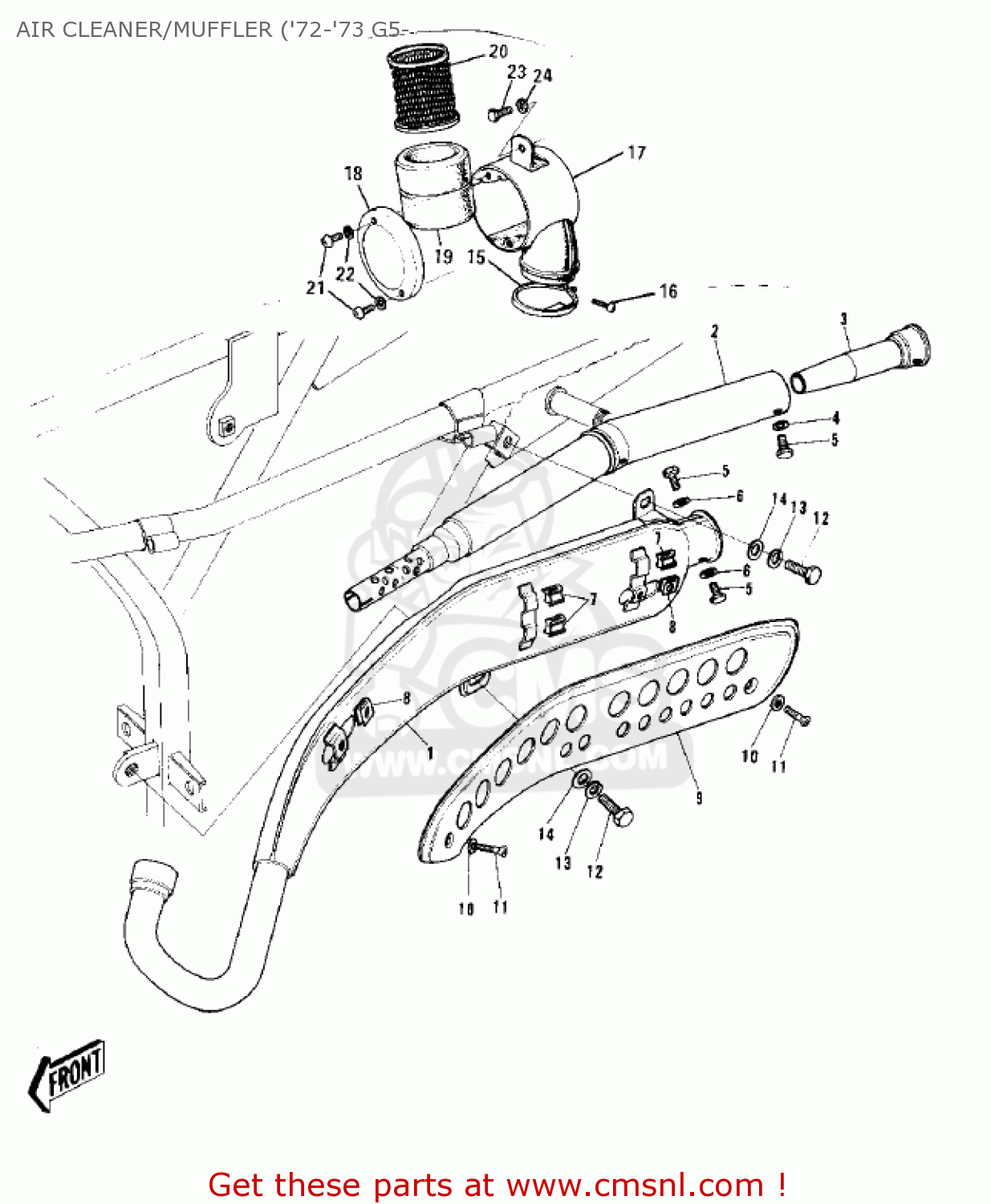

Air cleaner/muffler ('72-'73 g5- diagram G5 1972 CANADA
AIR CLEANER/MUFFLER ('72-'73 G5- G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
?
18001068
ref: ?
Includes items 1 - 6
MUFFLER ASSEMBLY
€ 358.00
?
18033054
ref: ?
Includes items 2 - 5
BAFFLE TUBE
€ 137.50
3
18048015
ref: 3
TAIL PIECE
€ 17.00
4
463H0600
ref: 4
WASHER-LOCK,6MM
€ 0.50
5
112G0612
ref: 5
BOLT-UPSET
€ 2.50
6
92022183
ref: 6
WASHER,6.2X11X1.5
€ 2.50
7
18065007
ref: 7
INSULATOR,HEAT
€ 3.00
8
18065009
ref: 8
INSULATOR,HEAT
€ 3.00
9
18057047
ref: 9
COVER,MUFFLER
€ 35.50
10
463H0600
ref: 10
WASHER-LOCK,6MM
€ 0.50
11
220E0612
ref: 11
SCREW-PAN HEAD,6X12
€ 3.00
12
115G0816
ref: 12
BOLT-HEX,HEAD 8X16
€ 0.50
13
461F0800
ref: 13
WASHER-SPRING,8MM
€ 0.50
14
410B0800
ref: 14
WASHER-PLAIN-SMALL,8M
€ 0.50
15
92037068
ref: 15
CLAMP
€ 7.50
16
220B0635
ref: 16
SCREW-PAN HEAD,6X35
€ 1.00
?
1101008221
ref: ?
Includes items 17 -
AIR CLEANER ASY,BLCK
€ 109.00
?
1101008221
ref: ?
Includes items 17 -
AIR CLEANER ASY,BLCK
€ 109.00
17
11011014
ref: 17
BODY-AIR CLEANER
€ 36.00
18
11012050
ref: 18
G5
CAP,AIR CLEANER
€ 22.50
18
11012050
ref: 18
G5-A
CAP,AIR CLEANER
€ 22.50
19
11013029
ref: 19
ELEMENT-AIR FILTER
€ 4.50
20
11014004
ref: 20
HOLDER,AIR FILTER ELE
€ 10.00
21
220B0608
ref: 21
SCREW-PAN HEAD,6X8
€ 0.50
22
410B0600
ref: 22
WASHER-PLAIN-SMALL,6M
€ 0.50
23
112G0616
ref: 23
BOLT UPSET,6X16
€ 1.00
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
