FRONT HUB/BRAKE ('74-'75 B/C)
G5 1972 CANADA

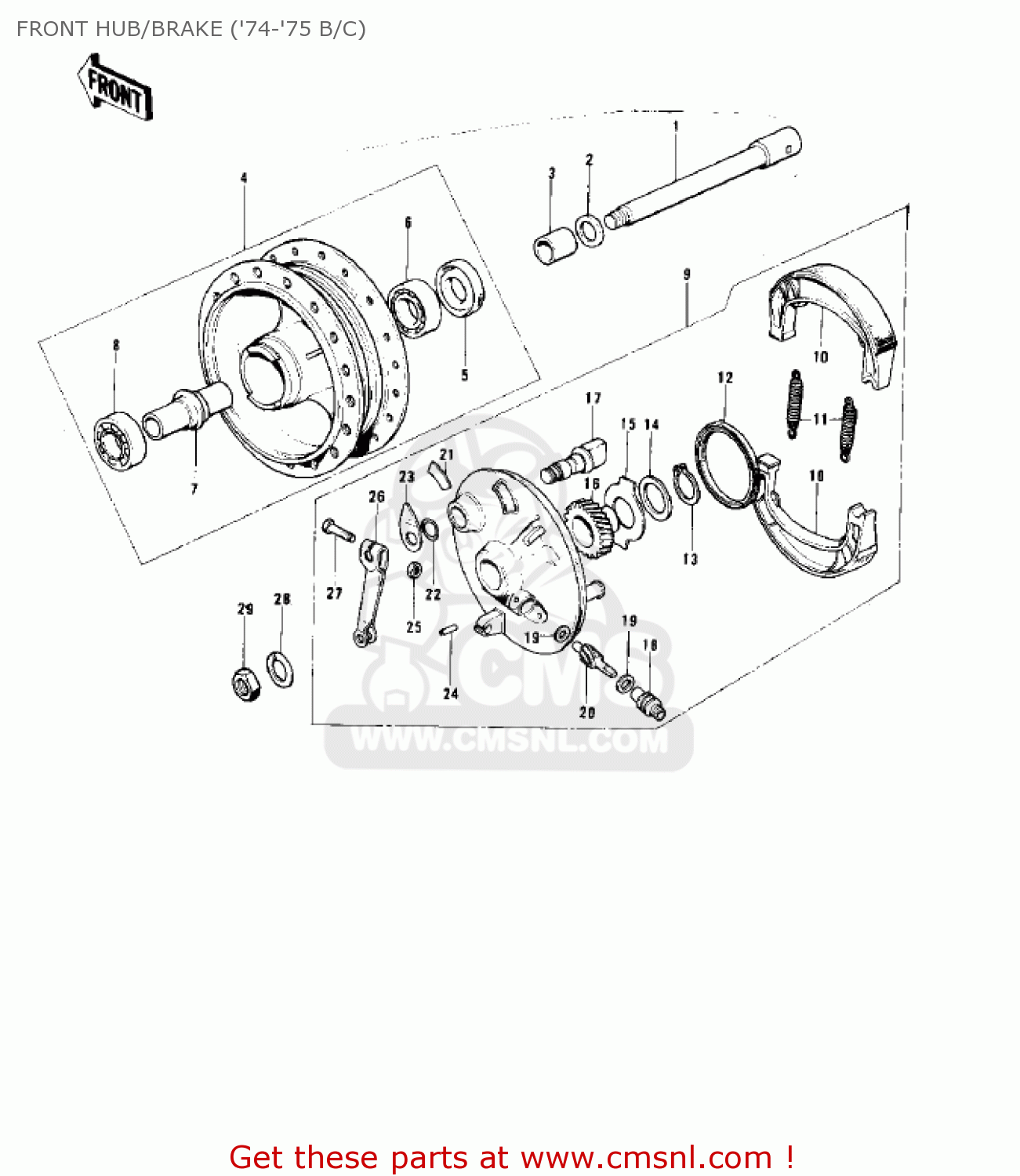

Front hub/brake ('74-'75 b/c) diagram G5 1972 CANADA
FRONT HUB/BRAKE ('74-'75 B/C) G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41068039
ref: 1
AXLE-FRONT
€ 20.00
2
41042002
ref: 2
DUST SHIELD-FRNT DRUM
€ 2.50
3
41069002
ref: 3
COLLAR-FRONT HUB R.H
€ 4.00
4
410341040
ref: 4
BUFF FINISH
DRUM-ASSY,FR,BUFF FIN
€ 203.50
5
92050003
ref: 5
OIL SEAL-FRONT DRUM
€ 4.00
6
601B6200
ref: 6
BEARING-BALL,#6200C3
€ 11.50
7
41039002
ref: 7
COLLAR,L=51
€ 6.00
8
601B6300Z
ref: 8
BEARING-BALL,#6300ZC3
€ 18.50
9
4103507180
ref: 9
BUFF FINISH
PANEL ASY,FR BRK,BUFF
€ 210.00
10
410481085
ref: 10
SHOE-BRAKE (NAS)
€ 13.00
11
920811766
ref: 11
SPRING,BRAKE SHOE
€ 5.50
12
92050002
ref: 12
OIL SEAL-BRAKE PANEL
€ 9.00
13
480J1500
ref: 13
CIRCLIP-TYPE-C,15MM
€ 1.00
14
41065002
ref: 14
WASHER-SPEED GR THRST
€ 2.00
15
41064002
ref: 15
RECIEVER-SPEED GEAR
€ 1.50
15
41064010
ref: 15
USE 41035-055-80
RECEIVER-SPEEDOMETER
€ 6.50
16
41059006
ref: 16
SPEEDOMETER GEAR
€ 45.50
16
41059023
ref: 16
USE 41035-055-80
GEAR SPEEDOMETER
€ 20.00
17
41050018
ref: 17
CAM-BRAKE
€ 18.00
18
41062005
ref: 18
BUSHING,SPEEDOMETER C
€ 12.00
19
41063001
ref: 19
WASHER-THRST SPD PINI
€ 3.00
20
41060004
ref: 20
PINION,SPEEDOMETER
€ 20.50
21
41084002
ref: 21
LABEL,FRONT BRAKE SHOE
€ 6.50
22
92055004
ref: 22
RING-O,BRAKE CAM
€ 3.00
23
41085002
ref: 23
INDICATOR,BRAKE SHOE
€ 2.50
24
41082001
ref: 24
PIN-SPRING
€ 2.50
25
41072007
ref: 25
NUT,6MM
€ 2.50
26
41053005
ref: 26
LEVER-BRAKE CAM
€ 11.50
27
112G0630
ref: 27
BOLT-UPSET
€ 1.00
28
461F1000
ref: 28
WASHER-SPRING,10MM
€ 0.50
29
52045005
ref: 29
UNAVAILABLE IN PRICE BOOK
€ 0.00
