REAR HUB/BRAKE ('74-'75 B/C)
G5 1972 CANADA

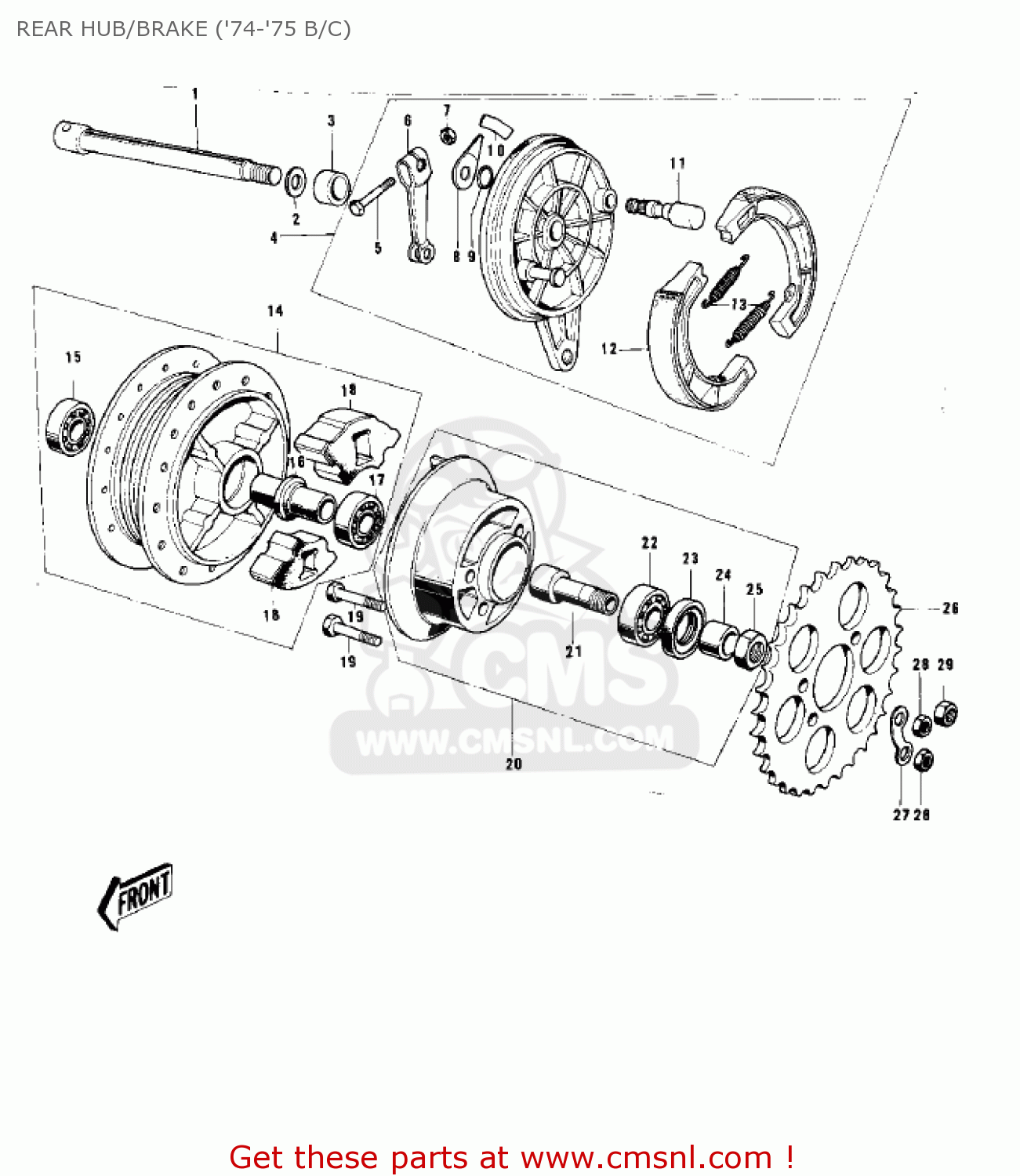

Rear hub/brake ('74-'75 b/c) diagram G5 1972 CANADA
REAR HUB/BRAKE ('74-'75 B/C) G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
410681109
ref: 1
AXLE,12X215
€ 26.00
2
410B1200
ref: 2
WASHER-PLAIN-SMALL,12
€ 0.50
3
42032006
ref: 3
COLLAR-REAR HUB R.H
€ 7.00
4
4200603880
ref: 4
BUFF FINISH
REAR BRAKE PANEL ASSEMBLY,BUFF
€ 222.00
5
112G0630
ref: 5
BOLT-UPSET
€ 1.00
6
41053002
ref: 6
LEVER-BRAKE CAM
€ 11.50
7
41072007
ref: 7
NUT,6MM
€ 2.50
8
41085003
ref: 8
INDICATOR,BRAKE SHOE
€ 9.00
9
92055004
ref: 9
RING-O,BRAKE CAM
€ 3.00
10
41084003
ref: 10
LABEL,REAR BRAKE SHOE
€ 4.50
11
42026018
ref: 11
CAM-BRAKE
€ 19.50
12
410481085
ref: 12
SHOE-BRAKE (NAS)
€ 13.00
13
920811766
ref: 13
SPRING,BRAKE SHOE
€ 5.50
14
4200503180
ref: 14
BUFF FINISH
DRUM ASY,RR BR,BUFF
€ 263.50
15
601B6301Z
ref: 15
BEARING-BALL,#6301ZC3
€ 15.00
16
42010005
ref: 16
COLLAR,L=58
€ 8.50
17
601B6201
ref: 17
BEARING-BALL,#6201C3
€ 7.00
18
42014016
ref: 18
DAMPER,RR HUB SHOCK
€ 12.50
19
92001082
ref: 19
BOLT-REAR SPROCKET
€ 2.00
20
42033014
ref: 20
COUPLING ASSY-RR HUB
€ 80.50
21
42036013
ref: 21
SLEEVE,RR HUB COUPLIN
€ 23.50
22
601B6203
ref: 22
BEARING-BALL,#6203C3
€ 10.50
23
92052003
ref: 23
OIL SEAL-COUPLING
€ 8.50
24
42037003
ref: 24
COLLAR,17X25X12.5
€ 7.50
25
42045004
ref: 25
NUT,16MM
€ 4.00
26
42041076
ref: 26
S T D
REAR SPROCKET 42T
€ 28.00
26
42041104
ref: 26
OPTION
REAR SPROCKET, 39T
€ 23.50
26
420411095
ref: 26
OPTION
SPROCKET-HUB,40T
€ 28.50
27
92088011
ref: 27
WASHER,LOCK
€ 3.00
28
315B1000
ref: 28
NUT,10MM
€ 0.50
29
42045005
ref: 29
NUT,10MM
€ 5.00
