OIL PUMP ('72-'73 G5-A)
G5 1972 CANADA

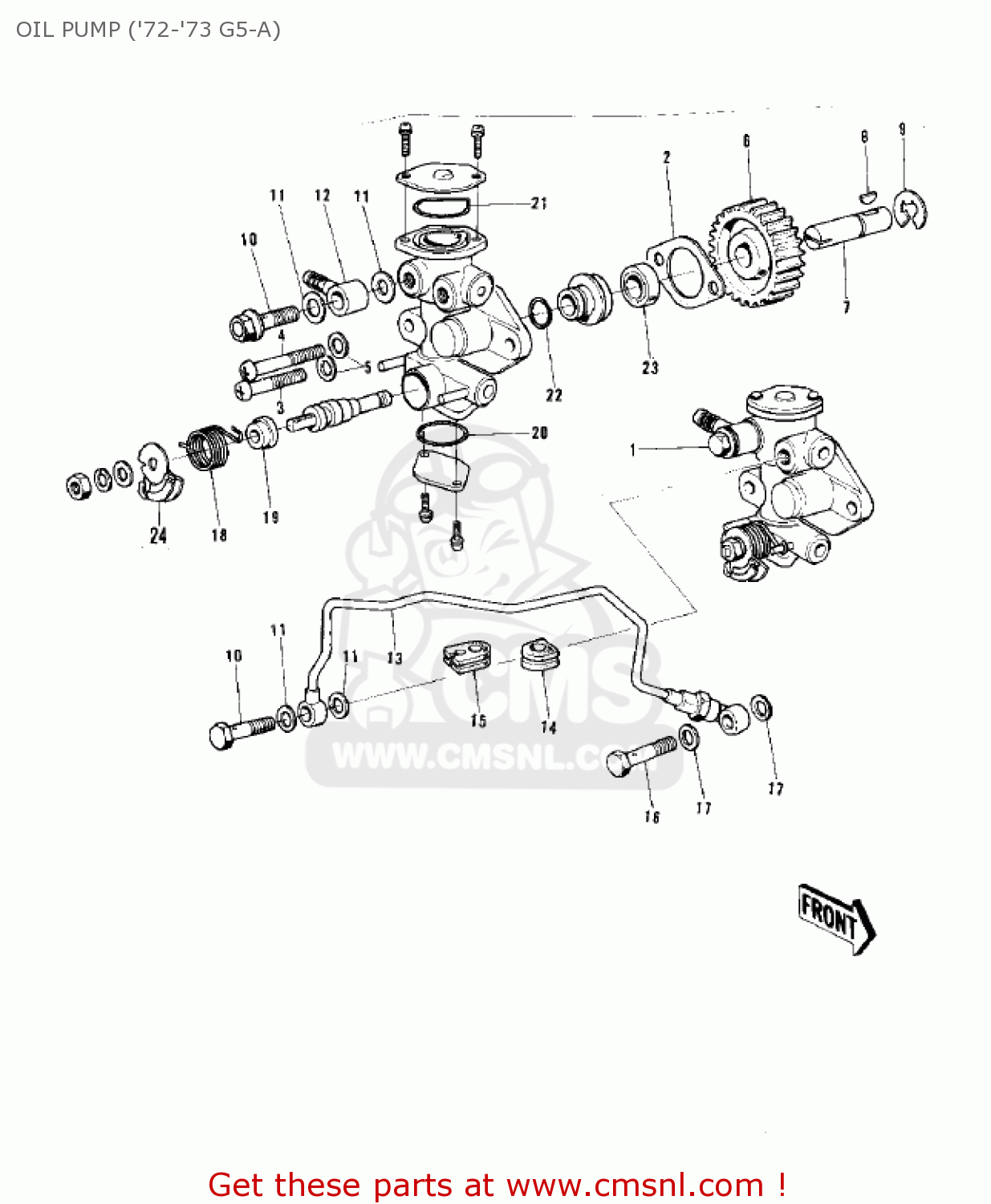

Oil pump ('72-'73 g5-a) diagram G5 1972 CANADA
OIL PUMP ('72-'73 G5-A) G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16082021
ref: 1
OIL PUMP ASSY
€ 166.50
2
110601160
ref: 2
GASKET,OIL PUMP (NAS)
€ 3.00
3
220B0514
ref: 3
ACREW-PAN HEAD,5X14
€ 2.50
4
220B0528
ref: 4
SCREW-PAN-CROS
€ 0.50
5
92022037
ref: 5
WASHER,5.5X10.5X0.8
€ 2.50
6
16085004
ref: 6
GEAR-OIL PUMP
€ 14.50
7
16086001
ref: 7
SHAFT,OIL PUMP
€ 13.00
8
510A3100
ref: 8
KEY-WOODRUFF
€ 1.50
9
482K9000
ref: 9
CIRCLIP-TYPE-E,9MM
€ 2.50
10
92060013
ref: 10
D=6
BOLT-BANJO,6MM
€ 4.00
11
92022077
ref: 11
I.D=6
WASHER,6.1X12X1
€ 0.50
12
92061009
ref: 12
FITTING,BANJO
€ 8.50
13
16129003
ref: 13
PIPE-OIL
€ 26.50
14
16135001
ref: 14
GROMMET-OIL PIPE,A
€ 2.50
15
16135005
ref: 15
GROMMET-OIL PIPE,B
€ 1.00
16
92001052
ref: 16
D=8
BOLT-BANJO CHECK VLV
€ 1.00
17
92065023
ref: 17
I.D=8
GASKET-CHECK VALVE (NAS)
€ 3.00
18
16093004
ref: 18
SPRING-OIL PUMP LEVER
€ 7.00
19
920491294
ref: 19
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
20
16090003
ref: 20
RING-O,CAP,LWR
€ 7.50
21
16088002
ref: 21
RING-O,CAP,BANJO SIDE
€ 6.50
22
16090002
ref: 22
RING-O,OIL PUMP SHAFT
€ 4.50
23
16091001
ref: 23
OIL SEAL-OIL PUMP SHT
€ 4.50
24
16096001
ref: 24
OIL PUMP CABLE LEVER
€ 18.50
