AIR CLEANER/MUFFLER ('74-'75 B/C
G5 1972 CANADA

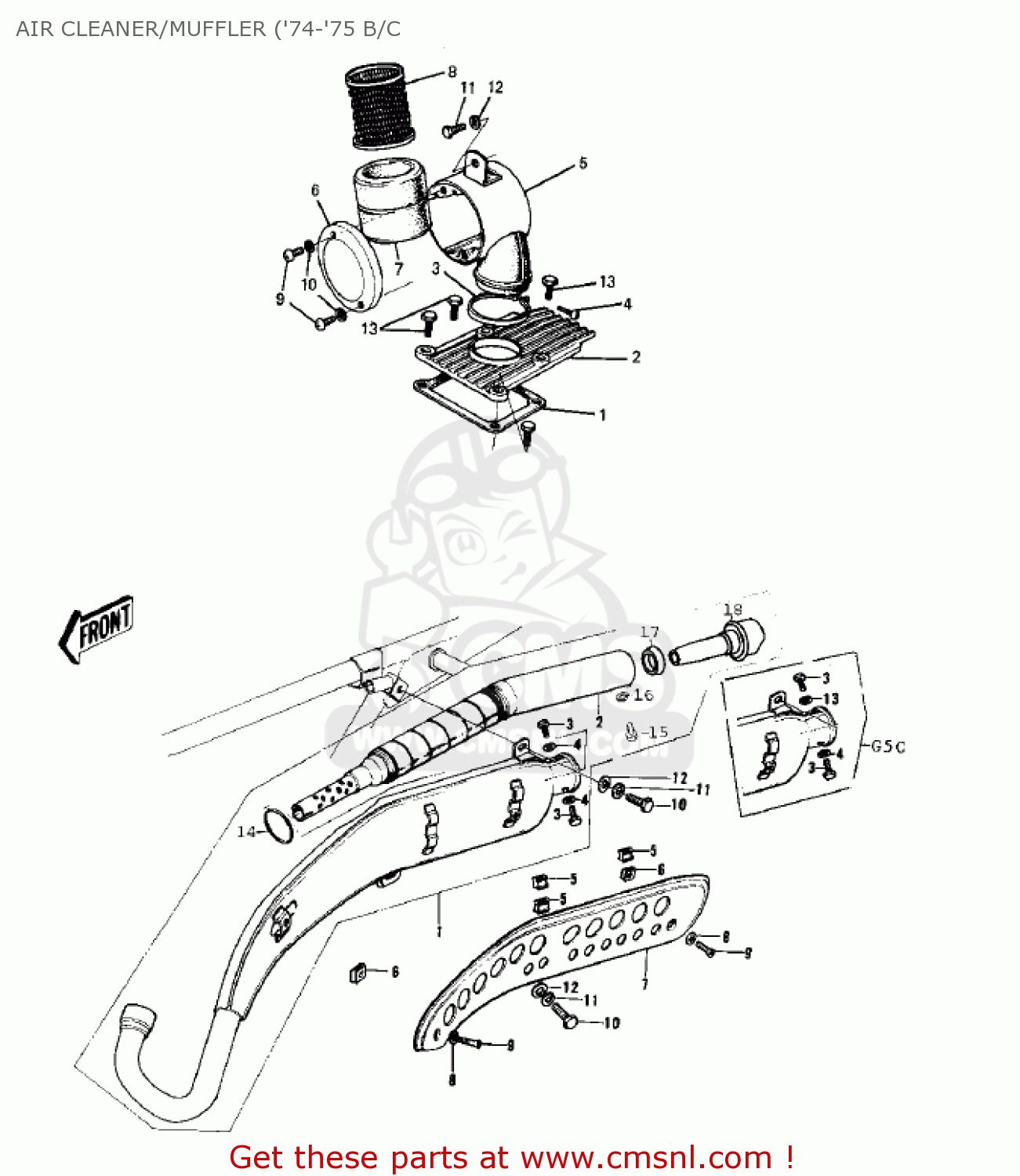

Air cleaner/muffler ('74-'75 b/c diagram G5 1972 CANADA
AIR CLEANER/MUFFLER ('74-'75 B/C G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
11017004
ref: 1
GASKET-INLET PIPE (NAS)
€ 1.50
2
1101501921
ref: 2
FLAT BLK
INLET PIPE,F.BLACK
€ 15.00
3
92037068
ref: 3
CLAMP
€ 7.50
4
220B0635
ref: 4
SCREW-PAN HEAD,6X35
€ 1.00
?
1101008221
ref: ?
Includes items 5 - 1
AIR CLEANER ASY,BLCK
€ 109.00
5
11011014
ref: 5
BODY-AIR CLEANER
€ 36.00
6
11012050
ref: 6
CR-PLATED
CAP,AIR CLEANER
€ 22.50
7
11013029
ref: 7
ELEMENT-AIR FILTER
€ 4.50
8
11014004
ref: 8
HOLDER,AIR FILTER ELE
€ 10.00
9
220B0608
ref: 9
SCREW-PAN HEAD,6X8
€ 0.50
10
410B0600
ref: 10
WASHER-PLAIN-SMALL,6M
€ 0.50
11
112G0616
ref: 11
BOLT UPSET,6X16
€ 1.00
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
112G0620
ref: 13
BOLT 6X20
€ 1.00
1
180011603
ref: 1
MUFFLER
€ 472.50
2
18033070
ref: 2
BAFFLE-PIPE MUFFLER
€ 106.50
3
112G0612
ref: 3
BOLT-UPSET
€ 2.50
4
92022183
ref: 4
(1 REQ FOR G5C)
WASHER,6.2X11X1.5
€ 2.50
5
18065007
ref: 5
INSULATOR,HEAT
€ 3.00
6
18065009
ref: 6
INSULATOR,HEAT
€ 3.00
7
18057047
ref: 7
COVER,MUFFLER
€ 35.50
8
463H0600
ref: 8
WASHER-LOCK,6MM
€ 0.50
9
220E0612
ref: 9
SCREW-PAN HEAD,6X12
€ 3.00
10
115G0816
ref: 10
BOLT-HEX,HEAD 8X16
€ 0.50
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
410B0800
ref: 12
WASHER-PLAIN-SMALL,8M
€ 0.50
13
410B0600
ref: 13
G5C
WASHER-PLAIN-SMALL,6M
€ 0.50
14
920931031
ref: 14
'0' RING
€ 5.50
15
112G0612
ref: 15
BOLT-UPSET
€ 2.50
16
464H0600
ref: 16
WASHER-LOCK,6MM
€ 0.50
17
920931009
ref: 17
BUSHING,RUBBER
€ 6.00
18
591561005
ref: 18
ARRESTOR CAP
€ 27.50
