FUEL TANK ('74-'75 B/C)

G5 1972 CANADA

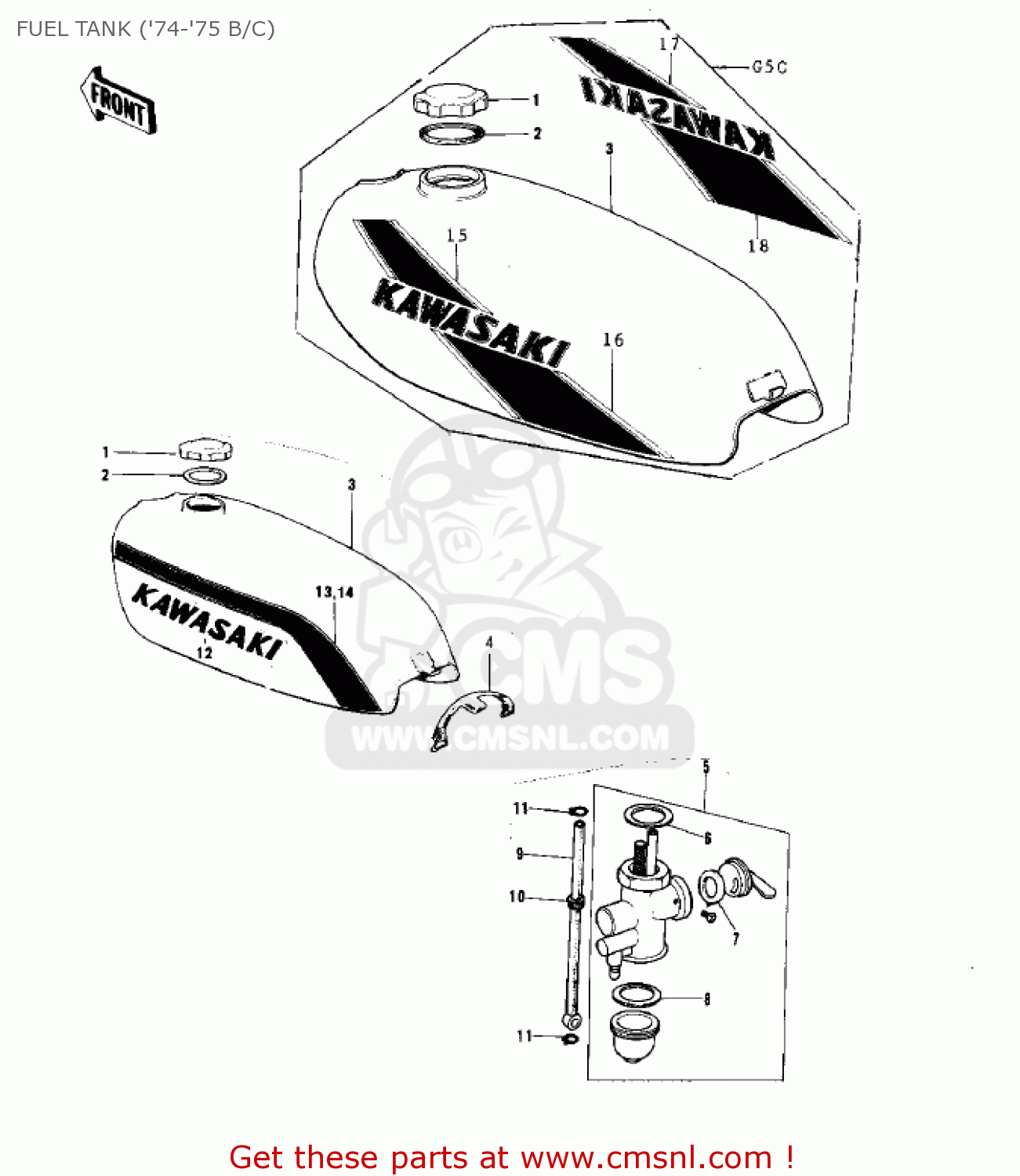

Fuel tank ('74-'75 b/c) diagram G5 1972 CANADA

FUEL TANK ('74-'75 B/C) G5 1972 CANADA

FUEL TANK ('74-'75 B/C) G5 1972 CANADA

prices are in EUR

ref

part #

description

quantity

1

510481013
ref: 1

CAP-ASSY-TANK,FUEL

€ 37.50

2

51059011
ref: 2

GASKET,FUEL TANK CAP (NAS)

€ 5.50

3

510010751S
ref: 3

FUEL TANK,CANDYTONE BLUE

€ 896.50

3

510010751T
ref: 3

FUEL TANK,CANDYTONE ORANGE

€ 896.50

3

510010751P
ref: 3
G5C

FUEL TANK,CANDYTONE RED

€ 896.50

3

510010751V
ref: 3
G5C

FUEL TANK,CANDYTONE GOLD

€ 896.50

4

92072029
ref: 4

BAND-FUEL TANK

€ 7.00

4

92072050
ref: 4
G5C

BAND-FUEL TANK

€ 7.00

5

510231123
ref: 5

TAP-ASSY,FUEL

€ 44.00

5

510231123
ref: 5
G5C

TAP-ASSY,FUEL

€ 44.00

6

110091567
ref: 6

GASKET,FUEL TAP JOINT

€ 4.00

7

92065062
ref: 7

GASKET,FUEL TAP LEVER

€ 3.50

8

51037008
ref: 8

GASKET,FUEL COCK CUP (NAS)

€ 2.50

9

51044031
ref: 9

FUEL PIPE

€ 31.50

9

92059072
ref: 9
G5C

TUBE,4.5X9X545

€ 22.00

10

92071038
ref: 10

GROMMET,PIPE

€ 2.50

11

92037010
ref: 11

CLAMP-FUEL PIPE

€ 2.50

12

56013051
ref: 12
REQUIRE TRANSFER SOL

DECAL-FUEL TANK

€ 3.50

13

56027163
ref: 13
REQUIRE TRANSFER SOL

FUEL TANK DECAL STRIPE,LH

€ 18.50

14

56027164
ref: 14

FUEL TANK DECAL STRIPE,RH

€ 18.50

15

56027247SP
ref: 15
G5C

FUEL TANK DECAL,LH

€ 30.00

16

56027248SP
ref: 16
G5C

FUEL TANK DECAL,LH

€ 36.50

17

56027249SP
ref: 17
G5C

FUEL TANK DECAL,RH

€ 30.00

18

56027250SP
ref: 18
G5C

FUEL TANK DECAL,RH

€ 36.50
