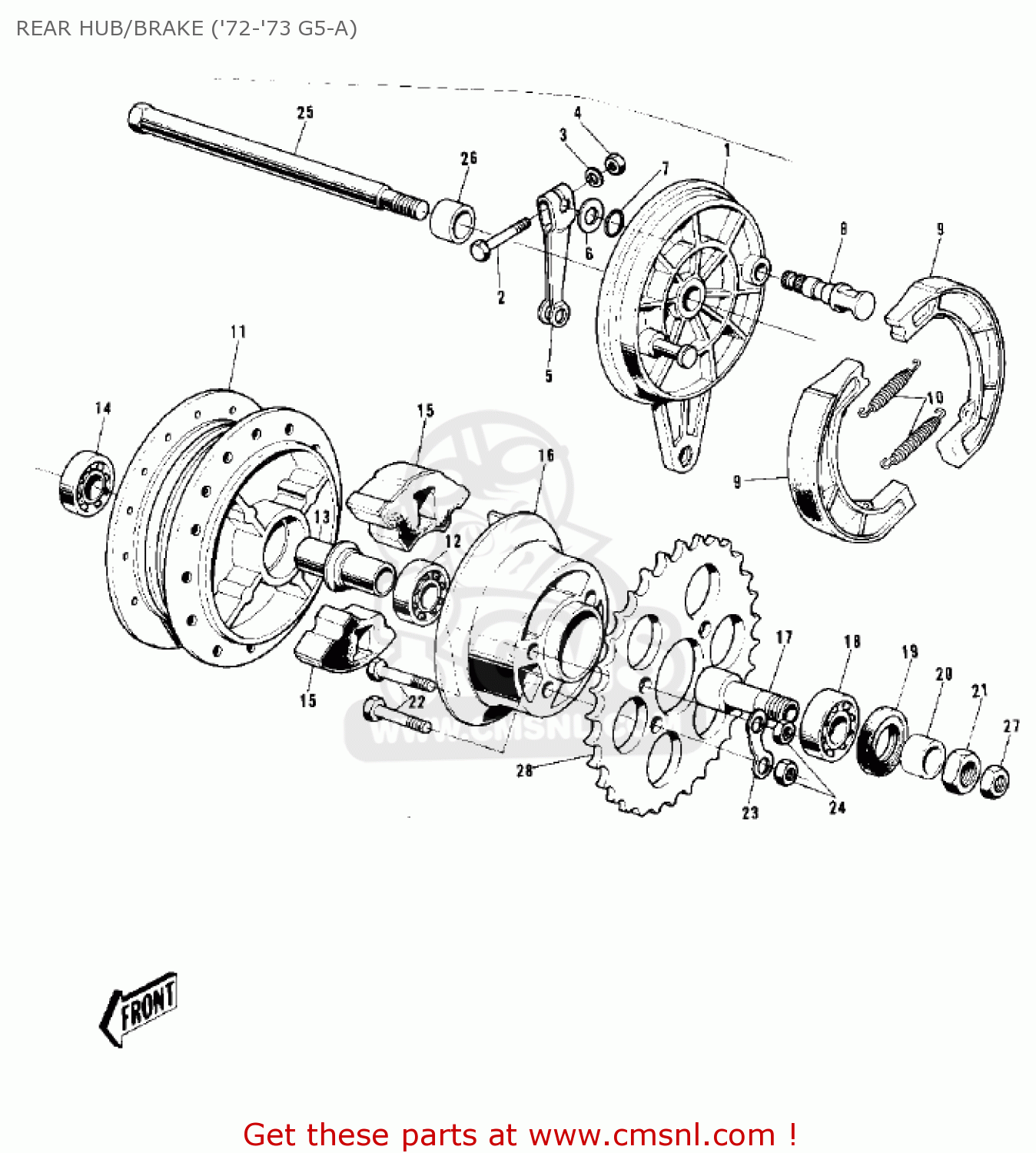

REAR HUB/BRAKE ('72-'73 G5-A)

ref

part #

description

quantity

?

4200602521
ref: ?
Includes items 1 - 1

REAR BRAKE PANEL ASSEMBLY,FLAT BLACK

€ 235.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

2

112G0630
ref: 2

BOLT-UPSET

€ 1.00

3

410B0600
ref: 3

WASHER-PLAIN-SMALL,6M

€ 0.50

4

311B0600
ref: 4

NUT,6MM

€ 0.50

5

42029020
ref: 5

LEVER-BRAKE CAM

€ 20.50

6

41052001
ref: 6

WASHER-BRAKE CAM SHT

€ 1.00

7

92055004
ref: 7

RING-O,BRAKE CAM

€ 3.00

8

41050018
ref: 8

CAM-BRAKE

€ 18.00

9

410481085
ref: 9

SHOE-BRAKE (NAS)

€ 13.00

10

920811766
ref: 10

SPRING,BRAKE SHOE

€ 5.50

?

4200503180
ref: ?
Includes items 11 -

DRUM ASY,RR BR,BUFF

€ 263.50

12

601B6201
ref: 12

BEARING-BALL,#6201C3

€ 7.00

13

42010005
ref: 13

COLLAR,L=58

€ 8.50

14

601B6301Z
ref: 14

BEARING-BALL,#6301ZC3

€ 15.00

15

42014016
ref: 15

DAMPER,RR HUB SHOCK

€ 12.50

?

42033014
ref: ?
Includes items 16 -

COUPLING ASSY-RR HUB

€ 80.50

17

42036013
ref: 17

SLEEVE,RR HUB COUPLIN

€ 23.50

18

601B6203
ref: 18

BEARING-BALL,#6203C3

€ 10.50

19

92052003
ref: 19

OIL SEAL-COUPLING

€ 8.50

20

42037003
ref: 20

COLLAR,17X25X12.5

€ 7.50

21

42045004
ref: 21

NUT,16MM

€ 4.00

22

92001082
ref: 22

BOLT-REAR SPROCKET

€ 2.00

23

92088011
ref: 23

WASHER,LOCK

€ 3.00

24

315B1000
ref: 24

NUT,10MM

€ 0.50

25

410681109
ref: 25
G5

AXLE,12X215

€ 26.00

25

410681109
ref: 25
G5-A

AXLE,12X215

€ 26.00

26

42032006
ref: 26
L=28.5M/M

COLLAR-REAR HUB R.H

€ 7.00

27

42045005
ref: 27

NUT,10MM

€ 5.00

28

42041076
ref: 28
STD

REAR SPROCKET 42T

€ 28.00

28

420411095
ref: 28
OPTION

SPROCKET-HUB,40T

€ 28.50
