FRAME/FRAME FITTINGS (G5-A)
G5 1972 CANADA

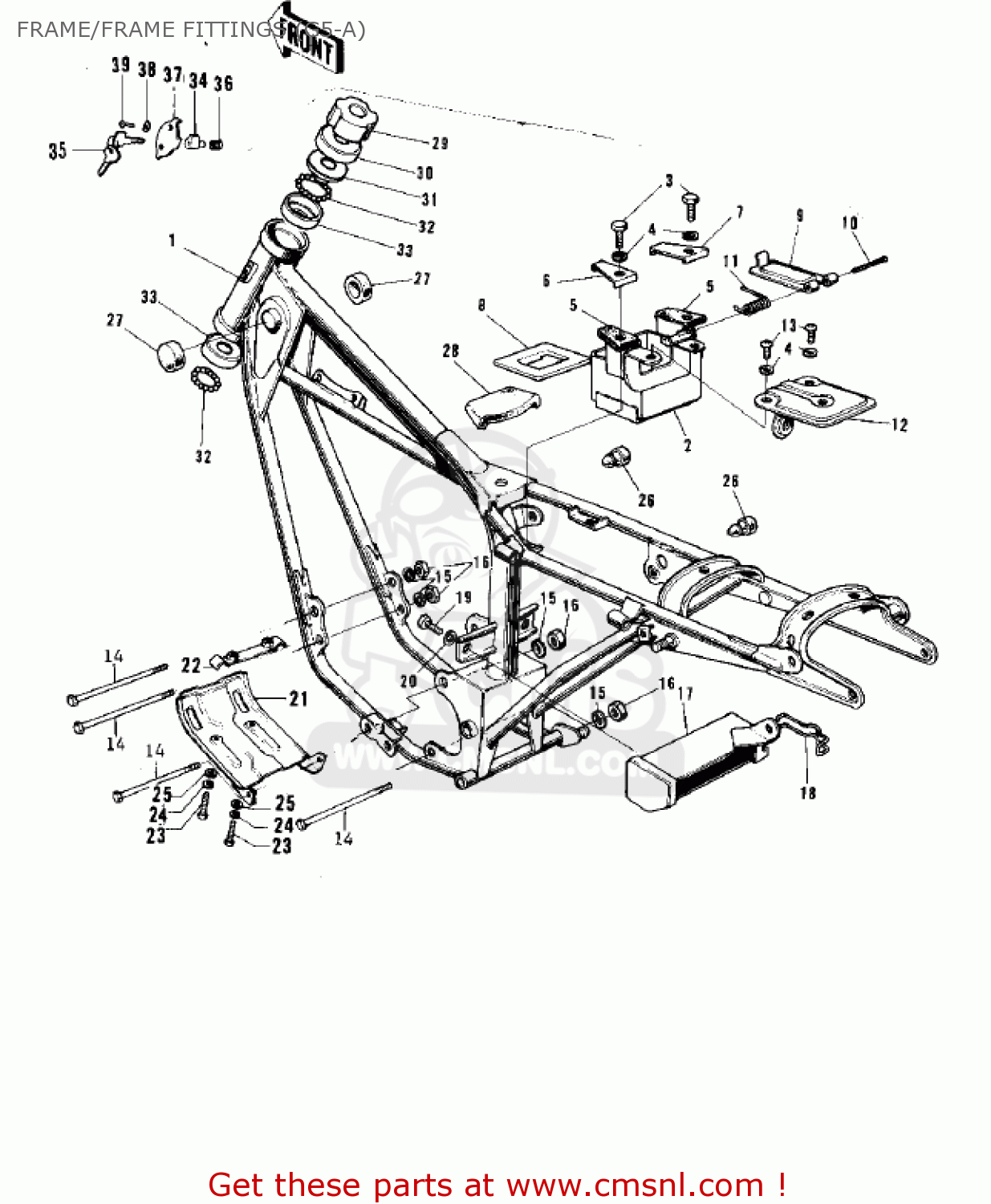

Frame/frame fittings (g5-a) diagram G5 1972 CANADA
FRAME/FRAME FITTINGS (G5-A) G5 1972 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
32002057
ref: 1
FRAME
€ 634.50
2
32097021
ref: 2
BATTERY CASE
€ 67.50
3
112G0618
ref: 3
BOLT-UPSET
€ 0.50
3
112G0618
ref: 3
BOLT-UPSET
€ 0.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
92075108
ref: 5
DAMPER
€ 3.00
6
32101003
ref: 6
PLATE
€ 3.00
7
32101004
ref: 7
PLATE
€ 3.00
8
32103024
ref: 8
DAMPER,BATTERY
€ 4.50
9
92072037
ref: 9
BAND-BATTERY
€ 2.50
10
550D2535
ref: 10
PIN-COTTER,2.5X35
€ 1.50
11
92083017
ref: 11
SPRING-RETURN
€ 1.50
12
32064007
ref: 12
TURN SIGNAL RELAY BRACKET
€ 9.50
13
220B0610
ref: 13
SCREW-PAN HEAD,6X10
€ 2.00
14
920011603
ref: 14
BOLT,FLANGED,10X115
€ 7.00
15
461F1000
ref: 15
WASHER-SPRING,10MM
€ 0.50
16
314B1000
ref: 16
NUT,10MM
€ 0.50
17
32098018
ref: 17
CASE-TOOL
€ 51.00
18
92079002
ref: 18
CLAMP,TOOL CASE
€ 8.00
19
110B0614
ref: 19
BOLT-HEX HEAD,6X14
€ 2.50
19
112B0614
ref: 19
BOLT-UPSET 6X14
€ 2.50
20
411B0600
ref: 20
WASHER-PLAIN,6MM
€ 0.50
21
55011018
ref: 21
GUARD,ENGINE
€ 25.50
22
55016007
ref: 22
BRACKET,ENGINE GUARD
€ 12.50
23
112B0614
ref: 23
BOLT-UPSET 6X14
€ 2.50
23
112B0614
ref: 23
BOLT-UPSET 6X14
€ 2.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
410B0600
ref: 25
WASHER-PLAIN-SMALL,6M
€ 0.50
26
92071056
ref: 26
GROMMET
€ 2.50
27
92075101
ref: 27
DAMPER RUBBER-FL TANK
€ 4.00
28
92075106
ref: 28
DAMPER,FUEL TANK
€ 10.00
29
92090006
ref: 29
NUT-STEERING STEM LCK
€ 10.50
30
46098004
ref: 30
CAP-STEERING STEM
€ 4.00
31
92047005
ref: 31
CONE-UPPER BEARING
€ 10.50
32
600A0600
ref: 32
BALL-STEEL,3/16
€ 0.50
33
92048004
ref: 33
RACE-BEARING
€ 10.00
?
27016029
ref: ?
Includes items 34 an
LOCK ASSY-STEERING
€ 18.00
35
2701801570
ref: 35
KEY SET-STRNG #270
€ 4.50
35
2701801571
ref: 35
KEY SET-STRNG #271
€ 4.50
35
2701801572
ref: 35
KEY SET-STRNG #272
€ 4.50
35
2701801573
ref: 35
KEY SET-STRNG #273
€ 4.00
35
2701801574
ref: 35
KEY SET-STRNG #274
€ 4.50
36
27032001
ref: 36
SPRING-STEERING LOCK
€ 3.50
37
110121134
ref: 37
CAP,STEERING LOCK
€ 4.50
38
92097003
ref: 38
WASHER
€ 2.50
39
92008007
ref: 39
SCREW-TAPPING
€ 2.50
