TRANSMISSION
A1SSA SAMURAI 1970 EUROPE USA

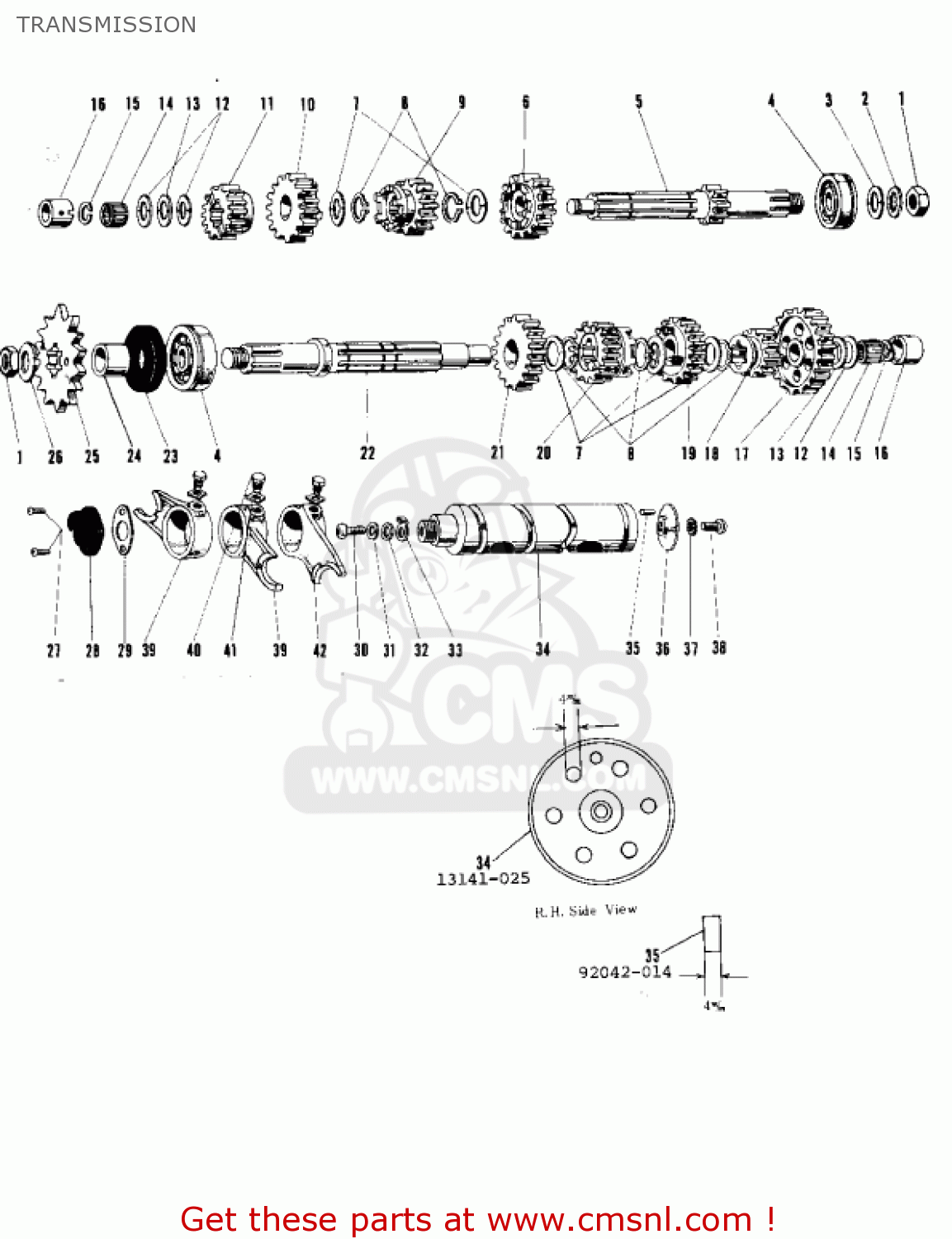

Transmission diagram A1SSA SAMURAI 1970 EUROPE USA
TRANSMISSION A1SSA SAMURAI 1970 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
92015019
ref: 1
NUT,18MM
€ 3.50
2
463G1800
ref: 2
WASHER-LOCK,18MM
€ 2.00
3
92022074
ref: 3
WASHER-PLAIN,18MM
€ 1.50
4
92045020
ref: 4
BEARING-BALL,#6305N
€ 27.50
5
13127012
ref: 5
14T
SHAFT-DRIVE
€ 87.50
6
13136017
ref: 6
27T
TOP GEAR-DRIVE SHAFT
€ 33.00
7
92022076
ref: 7
WASHER,25MM
€ 6.50
8
92033026
ref: 8
CIRCLIP
€ 5.50
9
13132009
ref: 9
23T
3RD GEAR-DRIVE SHAFT
€ 20.00
10
13134003
ref: 10
25T
4TH GEAR-DRIVE SHAFT
€ 59.00
11
13130008
ref: 11
19T
2ND GEAR-DRIVE SHAFT
€ 13.00
12
92022075
ref: 12
WASHER,17MM
€ 4.50
13
92026021
ref: 13
WASHER-THRUST
€ 8.50
14
92046005
ref: 14
BEARING,#KT172113
€ 12.00
15
92033009
ref: 15
CIRCLIP,17MM
€ 2.00
16
92028043
ref: 16
BUSH-TRANSMISSION
€ 17.00
17
13129014
ref: 17
35T
LOW GEAR-OUTPUT SHAFT
€ 20.50
18
13137007
ref: 18
21T
TOP GEAR-OUTPUT SHAFT
€ 34.00
19
13133007
ref: 19
26T
3RD GEAR-OUTPUT SHAFT
€ 17.50
20
13135003
ref: 20
23T
4TH GEAR-OUTPUT SHAFT
€ 38.50
21
13131010
ref: 21
29T
2ND GEAR-OUTPUT SHAFT
€ 31.00
22
13128013
ref: 22
SHAFT-OUTPUT
€ 71.00
23
92050016
ref: 23
OIL SEAL SC326210
€ 13.00
24
920261024
ref: 24
SPACER-ENG SPROCKET
€ 12.00
25
13144025
ref: 25
STD
ENGINE SPROCKET,15T
€ 21.50
25
13144017
ref: 25
A1, A1SS
SPROCKET-OUTPUT,14T
€ 33.50
25
13144018
ref: 25
(OPTION)
ENGINE SPROCKET,16T
€ 21.00
25
13144030
ref: 25
STD
SPROCKET-OUTPUT,15T
€ 28.00
25
13144035
ref: 25
A7, A7SS
ENGINE SPROCKET,14T
€ 28.00
25
13144036
ref: 25
(OPTION)
ENGINE SPROCKET,16T
€ 14.50
26
92024067
ref: 26
WASHER,LOCK
€ 2.00
27
220B0516
ref: 27
SCREW-PAN-CROS
€ 2.00
27
214B0516A
ref: 27
I.S.O. THREAD
UNAVAILABLE IN PRICE BOOK
€ 0.50
28
131511001
ref: 28
SWITCH-COMP,NEUTRAL
€ 8.50
29
13146002
ref: 29
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
30
92011003
ref: 30
SCREW PAN HEAD 6X16
€ 2.00
31
461F0600
ref: 31
WASHER-SPRING,6MM
€ 0.50
32
410B0600
ref: 32
WASHER-PLAIN-SMALL,6M
€ 0.50
33
210071003
ref: 33
ROTOR,TOP & NEUTRAL
€ 4.00
34
13141012
ref: 34
USE 13141-025
GEAR CHANGE DRUM
€ 64.00
34
13141025
ref: 34
USE W/92042-014
DRUM-GEAR CHANGE
€ 35.50
35
92043004
ref: 35
PIN-GEAR CHANGE DRUM
€ 2.00
35
92042014
ref: 35
USE W/13141-025
PIN-GEAR CHANGE DRUM
€ 0.50
36
13142004
ref: 36
PLATE-CHANGE DRUM PIN
€ 1.50
37
464H0600
ref: 37
WASHER-LOCK,6MM
€ 0.50
38
220B0612
ref: 38
SCREW-PAN HEAD,6X12
€ 1.00
39
13140013
ref: 39
FORK-SELECTOR,TOP
€ 53.00
40
92043016
ref: 40
PIN,SELECT FORK GUIDE
€ 11.50
41
92031001
ref: 41
WASHER,LOCK,10MM
€ 6.00
42
13140014
ref: 42
FORK-SELECTOR,LOW
€ 38.50
?
13140004
ref: ?
SELECTOR FORK LOW
€ 0.00
