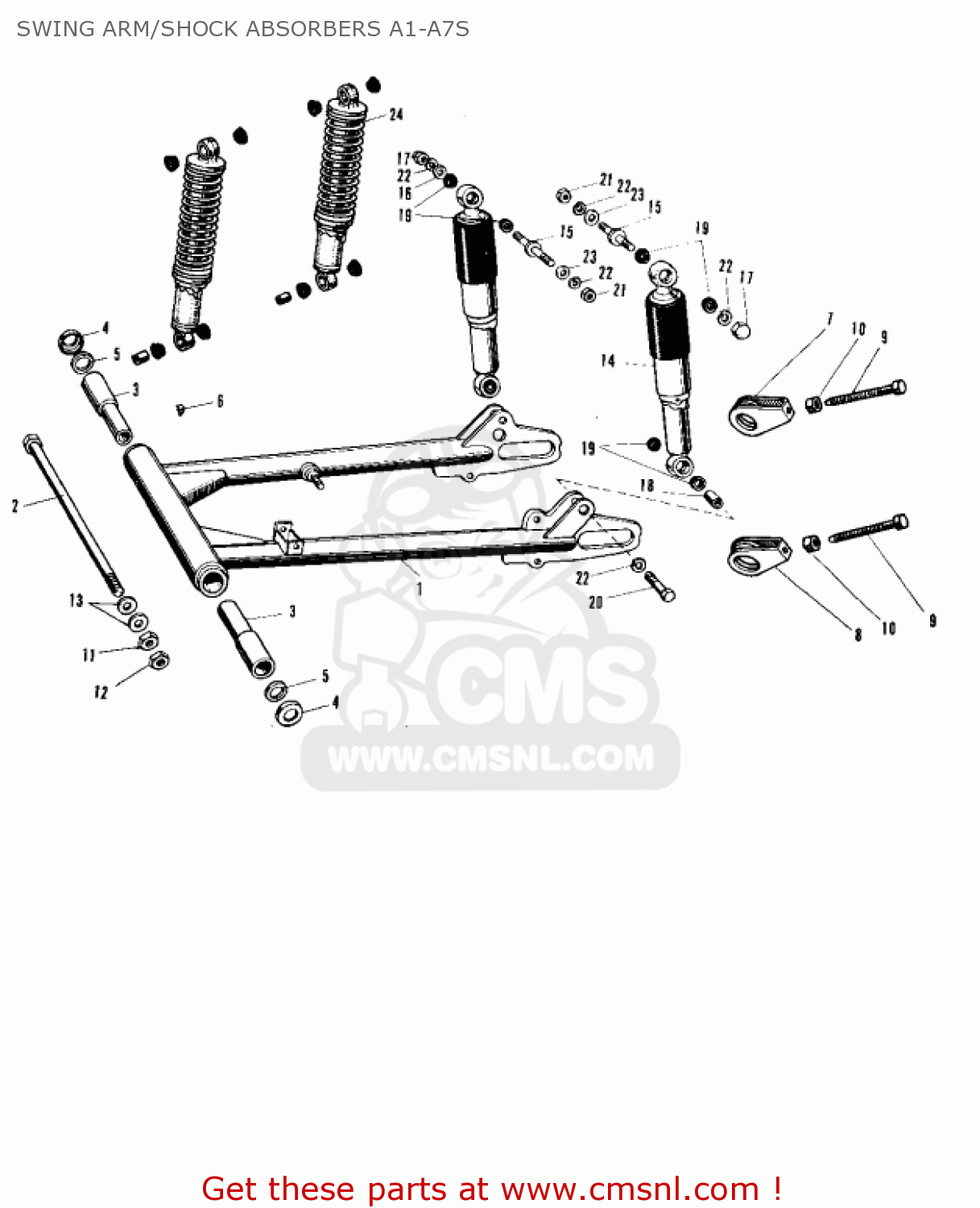

SWING ARM/SHOCK ABSORBERS A1-A7S

ref

part #

description

quantity

1

33002015
ref: 1

ARM SET-SWING

€ 70.00

2

33032012
ref: 2

SHAFT-SWING ARM PIVOT

€ 5.50

3

33034002
ref: 3
USE 33034-003

SWING ARM SLEEVE,SHORT

€ 22.00

3

33034003
ref: 3

SLEEVE-SWING ARM SHT

€ 6.50

4

92093004
ref: 4

DUST SHIELD PIVOT SFT

€ 1.00

5

33035001
ref: 5

HOLDER-DUST SHIELD

€ 1.50

6

92005002
ref: 6

GREASE NIPPLE

€ 4.00

7

33040022
ref: 7
6 M/M THREAD

CHAIN ADJUSTER,RH

€ 12.50

7

33040033
ref: 7
8 M/M THREAD

ADJUSTER-CHAIN R.H

€ 15.00

8

33043001
ref: 8
6 M/M THREAD

ADJUSTER SET-CHN,L.H

€ 5.00

8

33040032
ref: 8
8 M/M THREAD

ADJUSTER-CHAIN L.H

€ 15.00

9

92001009
ref: 9
6 M/M THREAD

BOLT-CHAIN ADJUST

€ 2.50

9

920011399
ref: 9
8 M/M THREAD

BOLT,8X50

€ 5.50

10

312B0600
ref: 10

NUT,6MM

€ 0.50

10

312B0800
ref: 10

NUT,8MM

€ 0.50

11

314B1400
ref: 11

NUT,14MM

€ 1.00

12

315B1400
ref: 12

NUT,14MM

€ 1.00

13

410B1400
ref: 13

410B1400

14

4501500210
ref: 14
BLACK

SHOCK ABSBR RR BLACK

€ 58.00

14

4501500224
ref: 14
CANDY RED

SHOCK ABSBR RR C.RED

€ 58.00

14

4501500227
ref: 14
CANDY BLUE

SHOCK ABSORBER,REAR,CANDYTONE BLUE

€ 67.00

15

92007009
ref: 15
NOT REQUIRED FOR 320

BOLT-RR SHOCK ABSRBR

€ 4.50

16

92022044
ref: 16

WASHER,10.5X26X2.3

€ 2.50

17

92020003
ref: 17

NUT-SHOCK ABSORBER

€ 3.50

18

45016003
ref: 18

COLLAR,SHOCKABSORBER

€ 11.50

19

45017001
ref: 19

DAMPER,SHOCKABSORBER

€ 4.00

20

113N1035
ref: 20

BOLT-HEX HEAD,10X35

€ 5.00

21

314B1000
ref: 21
NOT REQUIRED FOR 320

NUT,10MM

€ 0.50

22

461F1000
ref: 22
2 EA-NOT REQUIRED FO

WASHER-SPRING,10MM

€ 0.50

23

411B1000
ref: 23
NOT REQUIRED FOR 320

WASHER-PLAIN,10MM

€ 0.50

24

45014024
ref: 24
*FOR U.S.A. MODEL ON

SHOCK ABSORBER-REAR

€ 56.50

24

45014024
ref: 24
*FOR U.S.A. MODEL ON

SHOCK ABSORBER-REAR

€ 56.50

all assemblies
