CARBURETOR VM22SC, VM26SC
A1SSA SAMURAI 1970 EUROPE USA

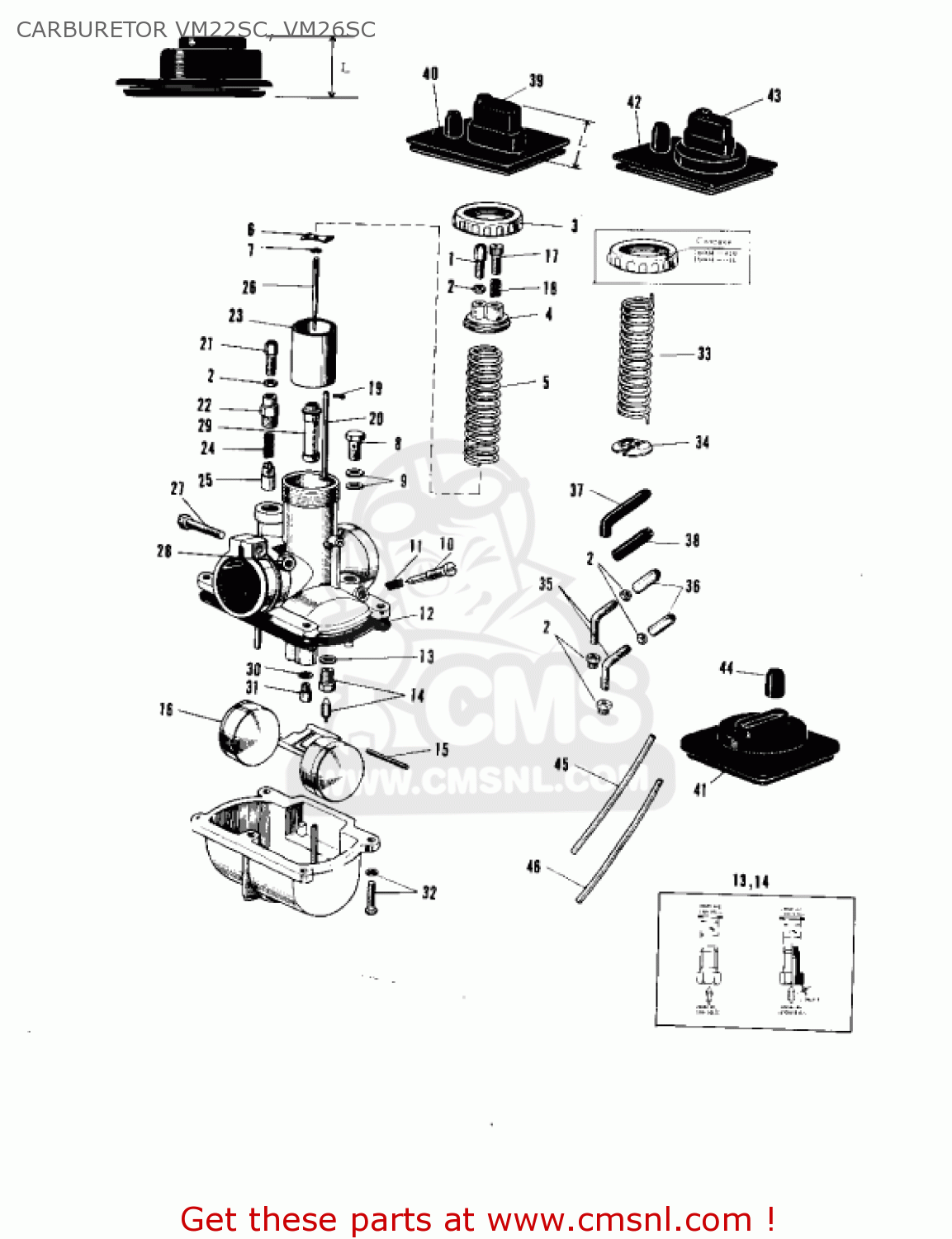

Carburetor vm22sc, vm26sc diagram A1SSA SAMURAI 1970 EUROPE USA
CARBURETOR VM22SC, VM26SC A1SSA SAMURAI 1970 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
?
16001038
ref: ?
Includes items 1 - 3
CARBURETOR ASSY
€ 61.00
?
16001038
ref: ?
Includes items 1 - 3
CARBURETOR ASSY
€ 61.00
?
16001044
ref: ?
Includes items 1 - 3
CARBURETOR ASSY
€ 78.50
?
16001059
ref: ?
Includes items 1 - 4
CARBURETOR ASSY
€ 83.00
?
16001059
ref: ?
Includes items 1 - 4
CARBURETOR ASSY
€ 83.00
?
16001062
ref: ?
Includes items 1 - 4
CARBURETOR ASSY
€ 97.50
1
16002002
ref: 1
ADJUSTER-CABLE,STARTE
€ 7.50
1
16002002
ref: 1
ADJUSTER-CABLE,STARTE
€ 7.50
2
16003004
ref: 2
NUT-CABLE ADJUST LOCK
€ 4.00
2
16003004
ref: 2
NUT-CABLE ADJUST LOCK
€ 4.00
3
16004002
ref: 3
WHITWORTH THREAD
CAP-MIXING CHAMBER
€ 6.00
3
16004010
ref: 3
METRIC THREAD
CAP-CHAMBER,MIXING
€ 12.50
3
16004008
ref: 3
WHITWORTH THREAD
CAP-MIXING CHAMBER
€ 3.00
3
16004011
ref: 3
METRIC THREAD
CAP-MIXING CHAMBER
€ 5.50
4
16005005
ref: 4
TOP-CHAMBER,MIXING
€ 12.50
4
16005013
ref: 4
TOP-MIXING CHAMBER
€ 3.00
5
16006013
ref: 5
SPRING-THROTTLE VALVE
€ 9.00
6
16007002
ref: 6
SEAT-SPRING,THROTTLE
€ 8.00
7
16008010
ref: 7
CLAMP,E-TYPE
€ 4.50
8
92001014
ref: 8
BOLT-BANJO
€ 11.50
9
751P0880
ref: 9
UNAVAILABLE IN PRICE BOOK
€ 0.00
10
16014003
ref: 10
SCREW-PILOT AIR
€ 17.00
11
16022010
ref: 11
SPRING,THROTTLE ADJST
€ 4.50
12
16019004
ref: 12
GASKET,FLOAT CHAMBER (NAS)
€ 19.00
12
16019010
ref: 12
GASKET-FLOAT CHAMBER (NAS)
€ 4.00
13
16029002
ref: 13
D=7M/M
WASHER-VALVE SEAT
€ 2.50
14
16030001
ref: 14
D=7M/M
VALVE-FLOAT,#2.0
€ 36.50
14
16030007
ref: 14
D=7M/M
FLOAT VALVE ASSY
€ 21.00
15
16032003
ref: 15
FLOAT PIN
€ 4.00
16
16031004
ref: 16
FLOAT
€ 60.50
16
16031010
ref: 16
FLOAT
€ 15.50
17
16021002
ref: 17
SCREW-THROTTLE STOP
€ 11.00
18
16022005
ref: 18
SPRING-THR STOP SCREW
€ 5.00
19
16023001
ref: 19
COTTER PIN
€ 1.50
20
16024002
ref: 20
ROD,THROTTLE VALVE ST
€ 6.00
20
16024004
ref: 20
ROD-THROTTLE VLV STOP
€ 1.50
21
16002002
ref: 21
ADJUSTER-CABLE,STARTE
€ 7.50
21
16002002
ref: 21
ADJUSTER-CABLE,STARTE
€ 7.50
21
16002005
ref: 21
CABLE ADJUSTER
€ 4.00
21
16002005
ref: 21
CABLE ADJUSTER
€ 4.00
22
16012004
ref: 22
CAP-STARTER PLUNGER
€ 7.00
22
16012006
ref: 22
CAP-STARTER PLUNGER
€ 3.50
23
16025011
ref: 23
VALVE-THROTTLE
€ 24.00
23
16025018
ref: 23
VALVE-THROTTLE CA2.5
€ 11.00
24
16013005
ref: 24
SPRING-STARTER PLUNG
€ 3.00
25
16016002
ref: 25
PLUNGER,STARTER
€ 18.00
26
16009012
ref: 26
JET NEEDLE 4J13
€ 5.00
26
16009006
ref: 26
JET NEEDLE
€ 3.00
27
16010004
ref: 27
SCREW-CLAMP
€ 3.00
28
311B0600
ref: 28
USE 310B0600
NUT,6MM
€ 0.50
28
311B0600
ref: 28
NUT,6MM
€ 0.50
29
16017026
ref: 29
NEEDLE JET
€ 8.00
29
16017022
ref: 29
NEEDLE JET O-4
€ 4.50
30
16034001
ref: 30
WASHER-MAIN JET
€ 2.50
31
92063016
ref: 31
S.T.D.
MAIN JET #150
€ 12.00
31
92063021
ref: 31
S.T.D.
JET-MAIN,#190
€ 8.50
31
92063014
ref: 31
A1, A1SS
MAIN JET #130
€ 10.50
31
92063015
ref: 31
OPTION
MAIN JET #140
€ 4.50
31
92063019
ref: 31
A1 A1SS, A7
JET-MAIN,#170
€ 8.50
31
92063020
ref: 31
A7SS OPTION
JET-MAIN,#180
€ 8.50
31
92063022
ref: 31
A7, A7SS
JET-MAIN,#200
€ 8.50
31
92063023
ref: 31
OPTION
JET-MAIN,#210
€ 8.50
32
16033008
ref: 32
SCREW-FLOAT CHAMBER
€ 1.00
32
16033009
ref: 32
I.S.O. THREAD
SCREW-FLOAT CHAMBER
€ 0.50
33
16006010
ref: 33
SPRING-THROTTLE VALVE
€ 4.50
34
16007011
ref: 34
THROTTLE VALVE SPRING SEAT
€ 6.00
35
16077001
ref: 35
GUIDE,CABLE
€ 6.00
36
16002004
ref: 36
CABLE ADJUSTER
€ 7.50
37
16036003
ref: 37
(STARTER)
CAP-CABLE ADJUSTER,B
€ 1.50
38
16036002
ref: 38
(THROTTLE)
CAP-CABLE ADJUSTER,A
€ 3.50
39
14038006
ref: 39
L=33 M/M
BOOT,CARBURETOR CAP
€ 5.00
39
14038006
ref: 39
L=33 M/M
BOOT,CARBURETOR CAP
€ 5.00
40
14038008
ref: 40
L=22 M/M
CAP-CARBURETOR
€ 6.00
40
14038008
ref: 40
L=22 M/M
CAP-CARBURETOR
€ 6.00
41
14038009
ref: 41
L=10 M/M
CAP-L.H CARBURETOR
€ 3.50
41
14038024
ref: 41
L=24 M/M
CAP-L.H CARBURETOR
€ 2.00
42
14038012
ref: 42
L=25 M/M
CAP-CARBURETOR
€ 3.50
42
14038012
ref: 42
L=25 M/M
CAP-CARBURETOR
€ 3.50
43
14038011
ref: 43
L=30 M/M
GROMMET-CARBRETOR CAP
€ 2.50
43
14038011
ref: 43
L=30 M/M
GROMMET-CARBRETOR CAP
€ 2.50
44
16037002
ref: 44
CAP,PILOT SCREW
€ 4.50
45
92059031
ref: 45
L=145 M/M
PIPE-FUEL OVERFLOW
€ 1.50
46
92059027
ref: 46
L=75 M/M
PIPE-FUEL OVERFLOW R
€ 0.50
