CHASSIS ELECTRICAL EQUIPMENT
A1SSA SAMURAI 1970 EUROPE USA

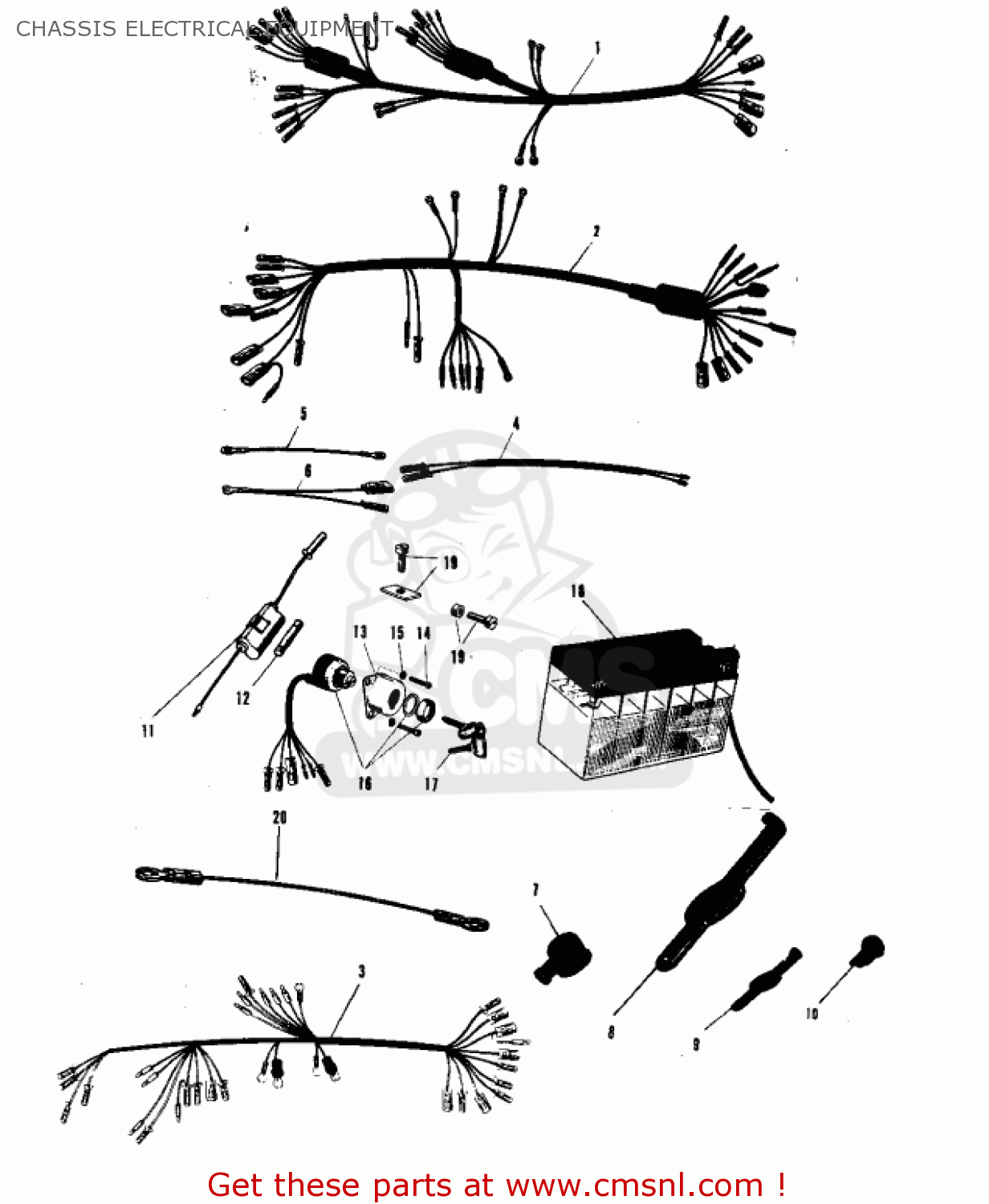

Chassis electrical equipment diagram A1SSA SAMURAI 1970 EUROPE USA
CHASSIS ELECTRICAL EQUIPMENT A1SSA SAMURAI 1970 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
26001022
ref: 1
CONT BRK., USA&EUR
WIRING HARNESS-MAIN
€ 14.00
2
26001036
ref: 2
C.D.I., USA
WIRING HARNESS,MAIN
€ 178.00
3
26001039
ref: 3
CONTACT BRK., EUR.
WIRING HARNESS-MAIN
€ 78.50
4
26002007
ref: 4
WIRING HARNESS-REAR
€ 2.50
5
26010014
ref: 5
WIRE-BATTERY GROUND
€ 2.50
6
26010015
ref: 6
WIRE-BATTERY LEAD
€ 6.00
7
92073001
ref: 7
CAP-BAT TERMINAL RUBB
€ 8.00
8
92072018
ref: 8
BAND-RUBBER
€ 1.50
9
92072013
ref: 9
BAND-RUBBER
€ 2.00
10
92073003
ref: 10
CAP-IGNITION COIL
€ 2.00
?
26004026
ref: ?
Includes items 11 an
FUSE-ASSY
€ 12.50
?
26004005
ref: ?
Includes items 11 an
FUSE ASSY
€ 8.00
12
26006001
ref: 12
FUSE 10A
€ 2.50
12
26006002
ref: 12
FUSE 20A
€ 2.00
13
27009001
ref: 13
HOUSING-IGNITION SW
€ 7.50
14
220B0612
ref: 14
SCREW-PAN HEAD,6X12
€ 1.00
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
?
27005013
ref: ?
Includes items 16 an
SWITCH ASSY-IGNITION
€ 22.00
17
27008016
ref: 17
#511
KEY BLANK
€ 9.00
17
27008016
ref: 17
#512
KEY BLANK
€ 9.00
17
27008016
ref: 17
#513
KEY BLANK
€ 9.00
17
27008016
ref: 17
#514
KEY BLANK
€ 9.00
17
27008016
ref: 17
#515
KEY BLANK
€ 9.00
17
27008027
ref: 17
#673
UNAVAILABLE IN PRICE BOOK
€ 31.00
17
27008027
ref: 17
#674
UNAVAILABLE IN PRICE BOOK
€ 31.00
17
27008027
ref: 17
#675
UNAVAILABLE IN PRICE BOOK
€ 31.00
17
27008027
ref: 17
#676
UNAVAILABLE IN PRICE BOOK
€ 31.00
17
27008027
ref: 17
#677
UNAVAILABLE IN PRICE BOOK
€ 31.00
17
2700802721
ref: 17
KEY SET #521
€ 5.50
17
2700802722
ref: 17
KEY SET #522
€ 5.50
17
2700802723
ref: 17
KEY SET #523
€ 5.50
17
2700802724
ref: 17
KEY SET,#524
€ 5.50
17
2700802725
ref: 17
KEY SET #525
€ 5.50
?
K26012016
ref: ?
Includes items 18 an
BATTERY,YUA,12N7-3B
€ 106.50
18
26012017
ref: 18
USE FOR U.S.A.
BATTERY
€ 119.00
19
26013002
ref: 19
MODEL ONLY
SCREW-BATTERY TERMNAL
€ 1.50
20
26011025
ref: 20
WIRE-GROUND
€ 5.50
