HANDLEBAR A1/SS, A7/SS
A1SSA SAMURAI 1970 EUROPE USA

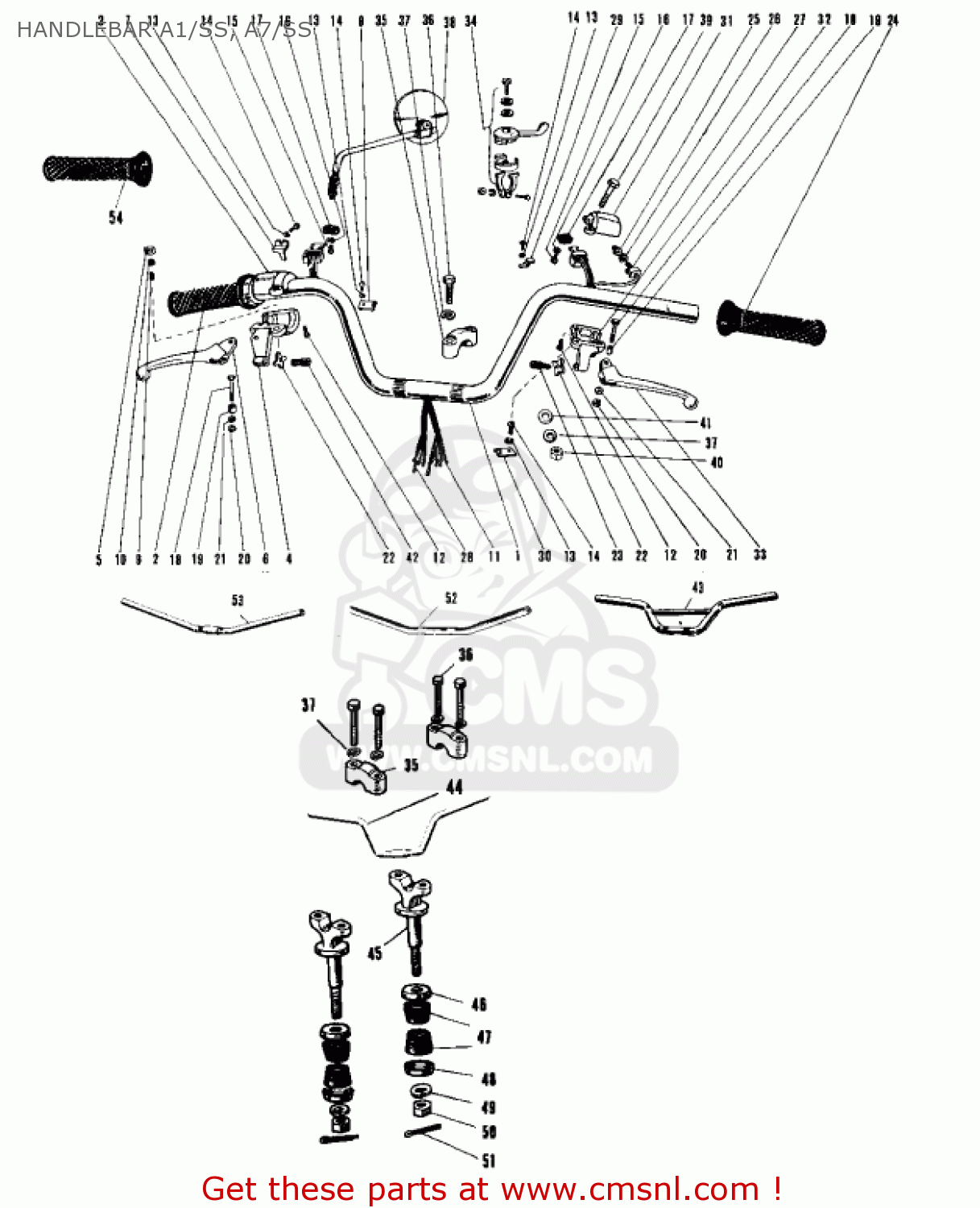

Handlebar a1/ss, a7/ss diagram A1SSA SAMURAI 1970 EUROPE USA
HANDLEBAR A1/SS, A7/SS A1SSA SAMURAI 1970 EUROPE USA
×
prices are in EUR
ref
part #
description
quantity
1
46003018
ref: 1
HANDLEBAR
€ 30.50
?
46017042
ref: ?
Includes items 2 - 2
GRIP ASSY-R.H
€ 85.00
2
46019005
ref: 2
GRIP-ASSY,THROTTLE
€ 34.00
3
46040009
ref: 3
CASE-R.H SWITCH UPPER
€ 2.50
4
46022011
ref: 4
CASE-R.H SWITCH LOWER
€ 4.50
5
46025002
ref: 5
SPRING-GRIP ADJUST
€ 1.00
6
46058005
ref: 6
LEVER-FRONT BRAKE
€ 16.50
7
46037012
ref: 7
HOLDER-R.H SW UP WRNG
€ 1.00
8
46037011
ref: 8
HOLDER-R.H SW LW WRNG
€ 1.00
9
46026002
ref: 9
SCREW-GRIP ADUST
€ 1.00
9
46026007
ref: 9
I.S.O. THREAD
SCREW-GRIP ADJUSTING
€ 1.50
10
311B0500
ref: 10
NUT-HEX
€ 0.50
10
311B0500
ref: 10
I.S.O. THREAD
NUT-HEX
€ 0.50
11
46032013
ref: 11
WIRING HARNESS-R.H SW
€ 10.00
12
92011010
ref: 12
SCREW-SWITCH CASE
€ 0.50
12
92011017
ref: 12
I.S.O. THREAD
SCREW-SWITCH CASE
€ 0.50
13
461F0300
ref: 13
WASHER-SPRING,3MM
€ 0.50
14
220B0306
ref: 14
SCREW-PAN-CROS
€ 0.50
14
220B0306
ref: 14
I.S.O. THREAD
SCREW-PAN-CROS
€ 0.50
15
211B0206
ref: 15
SCREW-PAN HEAD,2X6
€ 0.50
16
92029002
ref: 16
WASHER-SPRING
€ 0.50
17
46044003
ref: 17
KNOB-SWITCH
€ 3.50
18
92007018
ref: 18
BOLT-HEX HEAD,5X20
€ 2.00
18
92007020
ref: 18
I.S.O. THREAD
BOLT-HEX HEAD,5X20
€ 2.50
19
46059011
ref: 19
COLLAR,LEVER
€ 3.50
20
92015038
ref: 20
NUT,
€ 0.50
20
312B0500
ref: 20
I.S.O. THREAD
NUT-HEX,5MM
€ 0.50
21
464H0500
ref: 21
WASHER-LOCK,5MM
€ 0.50
22
46056001
ref: 22
NUT-ADJUST SCREW LOCK
€ 2.50
23
46055009
ref: 23
D=7 M/M
SCREW,CABLE ASJUST
€ 11.50
?
46074112
ref: ?
Includes items 12 -
GRIP ASSY,L.H
€ 50.00
24
46075007
ref: 24
GRIP,LH
€ 14.00
25
270101009
ref: 25
SWITCH ASSY,HORN BUTN
€ 5.00
26
46079001
ref: 26
CONTACT-HORN BUTTON
€ 2.00
27
270101009
ref: 27
SWITCH ASSY,HORN BUTN
€ 5.00
28
46082012
ref: 28
WIRING HARNESS-L.H SW
€ 20.00
29
46085010
ref: 29
HOLDER-L.H SW UP WRNG
€ 1.50
30
46085009
ref: 30
HOLDER-L.H SW LW WRNG
€ 2.00
31
46086008
ref: 31
CASE-L.H SWITCH UPPER
€ 3.50
32
46077009
ref: 32
CASE-L.H SWITCH LOWER
€ 6.00
33
46092006
ref: 33
LEVER-CLUTCH
€ 12.00
34
46109012
ref: 34
LEVER ASSY, STARTER
€ 15.00
35
46012004
ref: 35
HOLDER-UPPER HANDLBAR
€ 13.00
36
920011405
ref: 36
BOLT,8X38
€ 9.00
37
461F0800
ref: 37
WASHER-SPRING,8MM
€ 0.50
38
56001005
ref: 38
REAR VIEW MIRROR
€ 51.00
39
116B0840
ref: 39
BOLT-HEX HEAD,8X40
€ 3.50
40
311B0800
ref: 40
NUT,8MM
€ 0.50
41
410B0800
ref: 41
WASHER-PLAIN-SMALL,8M
€ 0.50
42
46055003
ref: 42
D=8 M/M
SCREW-CABLE ADJUST
€ 10.00
43
46004008
ref: 43
HANDLEBAR
€ 0.00
44
46003018
ref: 44
HANDLEBAR
€ 30.50
45
46012007
ref: 45
HOLDER-HANDLEBAR LOW
€ 12.50
46
46016003
ref: 46
PLATE,HANDLE HOLDER
€ 3.50
47
92075039
ref: 47
DAMPER RUBBER-HANDLE
€ 2.50
48
46016003
ref: 48
PLATE,HANDLE HOLDER
€ 3.50
49
461F1000
ref: 49
WASHER-SPRING,10MM
€ 0.50
50
314B1000
ref: 50
NUT,10MM
€ 0.50
51
550D2520
ref: 51
PIN-COTTER,2.5X20
€ 1.00
52
46005002
ref: 52
HANDLEBAR LOW
€ 15.00
53
46005006
ref: 53
HANDLEBAR LOW
€ 16.00
54
46019005
ref: 54
GRIP-ASSY,THROTTLE
€ 34.00
