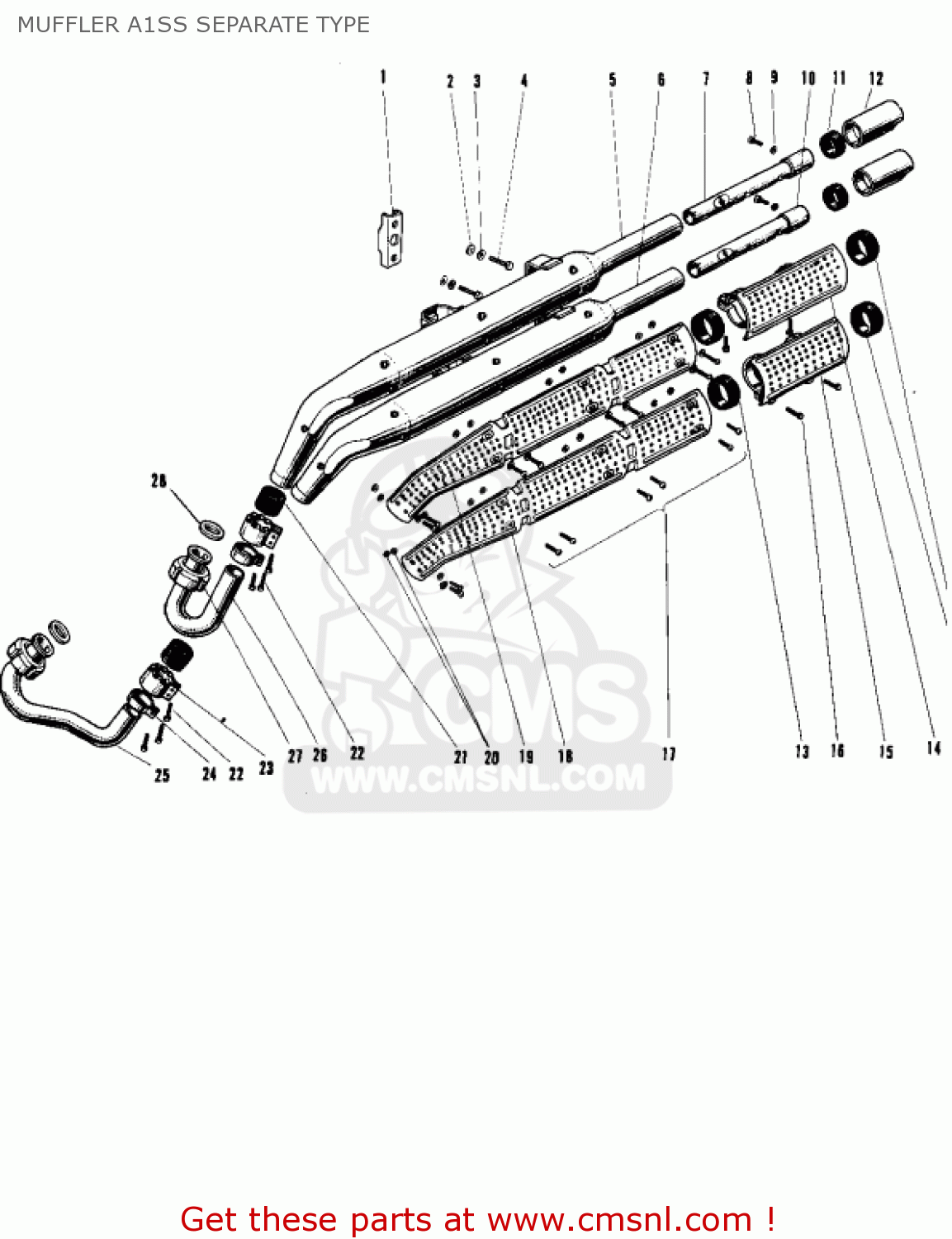

MUFFLER A1SS SEPARATE TYPE

ref

part #

description

quantity

1

18061026
ref: 1

BRACKET-MUFFLER

€ 3.00

2

410B0800
ref: 2

WASHER-PLAIN-SMALL,8M

€ 0.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

115G0820
ref: 4

BOLT,8X20

€ 2.00

?

18002062
ref: ?
Includes item 5 and

MUFFLER ASSY-UPPER

€ 60.00

?

18003026
ref: ?
Includes item 6 and

MUFFLER ASSY-LOWER

€ 85.50

7

18033016
ref: 7

BAFFLE TUBE UPPER

€ 11.50

8

112G0612
ref: 8

BOLT-UPSET

€ 2.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

18033017
ref: 10

BAFFLE TUBE LOWER

€ 10.00

11

18068003
ref: 11

RUBBER SEAL

€ 0.50

12

18048004
ref: 12

TAIL PIECE

€ 12.00

13

92072025
ref: 13

BAND-RUBBER 40MM

€ 0.50

14

18057017
ref: 14

COVER-UPPER TAIL PIPE

€ 7.50

15

18057018
ref: 15

COVER-LOWER TAIL PIPE

€ 7.50

16

220B0616
ref: 16

SCREW-PAN HEAD,6X16

€ 2.00

17

220E0606
ref: 17

SCREW-PAN HEAD,6X6

€ 0.50

18

18057010
ref: 18

COVER-MUFFLER LOWER

€ 11.50

19

18057009
ref: 19

COVER-MUFFLER UPPER

€ 11.00

20

92065024
ref: 20
USE 18065-006

INSULATOR-HEAT

€ 0.50

20

18065006
ref: 20

INSULATOR

€ 4.50

21

18043010
ref: 21

SEAL,MUFFLER

€ 37.50

22

220B0625
ref: 22

SCREW-PAN HEAD,6X25

€ 1.00

23

18044008
ref: 23

HOLDER-MUFFLER CONECT

€ 3.00

24

18044007
ref: 24

HOLDER-MUFFLER CONECT

€ 3.50

25

18049044
ref: 25

PIPE-EXHAUST,R.H

€ 18.00

26

18049030
ref: 26

PIPE-EXHAUST,L.H

€ 18.00

27

18069033
ref: 27

CLAMP-EXHAUST PIPE

€ 29.50

28

18067008
ref: 28

GASKET-EXHAUST PIPE (NAS)

€ 9.50
