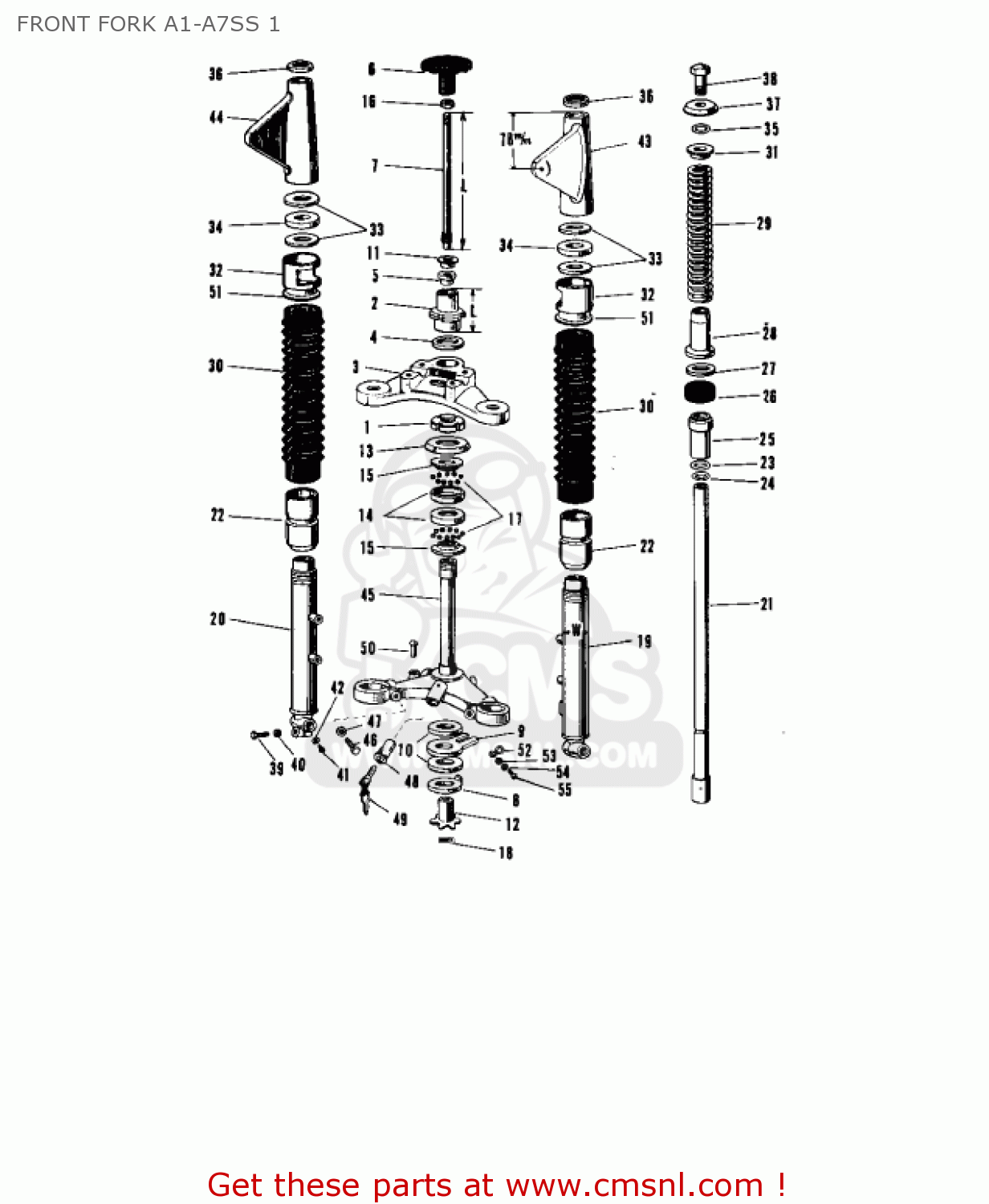

FRONT FORK A1-A7SS 1

ref

part #

description

quantity

1

92090007
ref: 1

NUT-STEERING STEM LCK

€ 7.00

2

92090008
ref: 2
L=31M/M

NUT-STEERING STEM

€ 6.00

3

44039015
ref: 3

HEAD-STEERING STEM

€ 84.50

4

46100001
ref: 4

WASHER-STEERING STEM

€ 2.50

5

46103001
ref: 5

BUSH-STRNG DAMPER ROD

€ 2.00

6

46101001
ref: 6

KNOB-STEERING DAMPER

€ 3.00

7

46102001
ref: 7
L=270 M/M

ROD-STEERING DAMPER

€ 2.00

8

46106001
ref: 8

DISC-STTERING DAMPER

€ 3.50

9

46105001
ref: 9

STOPPER-STEERING DAMP

€ 2.00

10

46104001
ref: 10

DISC-STRNG DAMP FRCTN

€ 2.50

11

46108001
ref: 11

WASHER-STRNG DAMP NUT

€ 1.00

12

46123001
ref: 12

SPRING-FRICTION DISC

€ 3.50

13

46098006
ref: 13

CAP-STEERING STEM

€ 2.00

14

92048006
ref: 14

RACE-STRNG BEARIN-STE

€ 10.50

15

92047006
ref: 15

CONE-STRNG STEM

€ 10.00

16

92016001
ref: 16

NUT-STEERING DAMP LCK

€ 1.00

17

600A0800
ref: 17

BALL-STEEL,1/4

€ 0.50

18

550D2015
ref: 18

PIN-COTTER,2.0X15

€ 1.00

?

4400105024
ref: ?
Includes item 3 and

FRONT FORK ASSY,C.RED

€ 315.50

?

4400105027
ref: ?
Includes item 3 and

FRONT FORK ASSY,C.BL

€ 291.50

19

44005013
ref: 19
W=39 M/M

TUBE-L.H OUTER

€ 47.00

20

44006011
ref: 20
W=39 M/M

TUBE-R.H OUTER

€ 38.00

21

44013015
ref: 21

TUBE-FORK INNER

€ 87.50

22

44007010
ref: 22

NUT-FORK OUTER TUBE

€ 14.50

23

44046016
ref: 23

'O' RING-OUTER TUBE

€ 4.00

24

481J2800
ref: 24

CIRCLIP-TYPE-C,28MM

€ 1.00

25

44015006
ref: 25

GUIDE-FORK INNER TUBE

€ 3.00

26

44009005
ref: 26

OIL SEAL-FORK

€ 6.50

27

44043020
ref: 27

WASHER

€ 1.50

28

44010008
ref: 28

DUST SHIELD-FORK

€ 4.50

29

44026013
ref: 29

SPRING-FORK

€ 8.50

30

44027006
ref: 30

COVER-FORK DUST

€ 6.50

31

44028009
ref: 31

GUI

€ 1.50

32

44030005
ref: 32

GUIDE-FORK COVER

€ 7.00

33

44043021
ref: 33

WASHER-FORK COVER

€ 3.50

34

44045019
ref: 34

GASKET-FORK COVER

€ 1.00

35

44046006
ref: 35

'O' RING-FORK BOLT

€ 4.00

36

44032001
ref: 36

CAP-FORK COVER

€ 1.50

37

44043029
ref: 37

WASHER-FORK BOLT

€ 1.00

38

44041011
ref: 38

BOLT-FORK FITTING

€ 5.00

39

115G0830
ref: 39

BOLT-SMALL-UPSET,8X30

€ 3.00

40

461F0800
ref: 40

WASHER-SPRING,8MM

€ 0.50

41

220B0408
ref: 41

SCREW-PAN-CROS

€ 0.50

41

220B0408
ref: 41
I.S.O. THREAD

SCREW-PAN-CROS

€ 0.50

42

44045002
ref: 42

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

43

4403301624
ref: 43
CANDY RED

COVER-L.H FORK,C.RED

€ 10.00

43

4403301627
ref: 43
CANDY BLUE

COVER-L.H FORK,C.BLUE

€ 10.50

44

4403401524
ref: 44
CANDY RED

COVER-R.H FORK,C.RED

€ 10.00

44

4403401527
ref: 44
CANDY BLUE

COVER-R.H FORK,C.BLUE

€ 10.50

45

44037015
ref: 45

STEM-STEERING

€ 113.50

46

44041010
ref: 46

BOLT-PINCH

€ 4.50

47

461F1000
ref: 47

WASHER-SPRING,10MM

€ 0.50

?

27017011
ref: ?
Includes items 48 an

LOCK ASSY STEERING

€ 0.00

49

27018008
ref: 49
#551

UNAVAILABLE IN PRICE BOOK

€ 0.00

49

27018008
ref: 49
#552

UNAVAILABLE IN PRICE BOOK

€ 0.00

49

27018008
ref: 49
#553

UNAVAILABLE IN PRICE BOOK

€ 0.00

49

27018008
ref: 49
#554

UNAVAILABLE IN PRICE BOOK

€ 0.00

49

27018008
ref: 49
#555

UNAVAILABLE IN PRICE BOOK

€ 0.00

50

92099001
ref: 50

SCREW RIVET

€ 2.50

51

44035001
ref: 51

HOLDER-DUST COVER

€ 1.50

52

92037026
ref: 52

CLAMP-CABLE

€ 0.50

53

410B0600
ref: 53

WASHER-PLAIN-SMALL,6M

€ 0.50

54

461F0600
ref: 54

WASHER-SPRING,6MM

€ 0.50

55

220B0616
ref: 55

SCREW-PAN HEAD,6X16

€ 2.00

all assemblies
