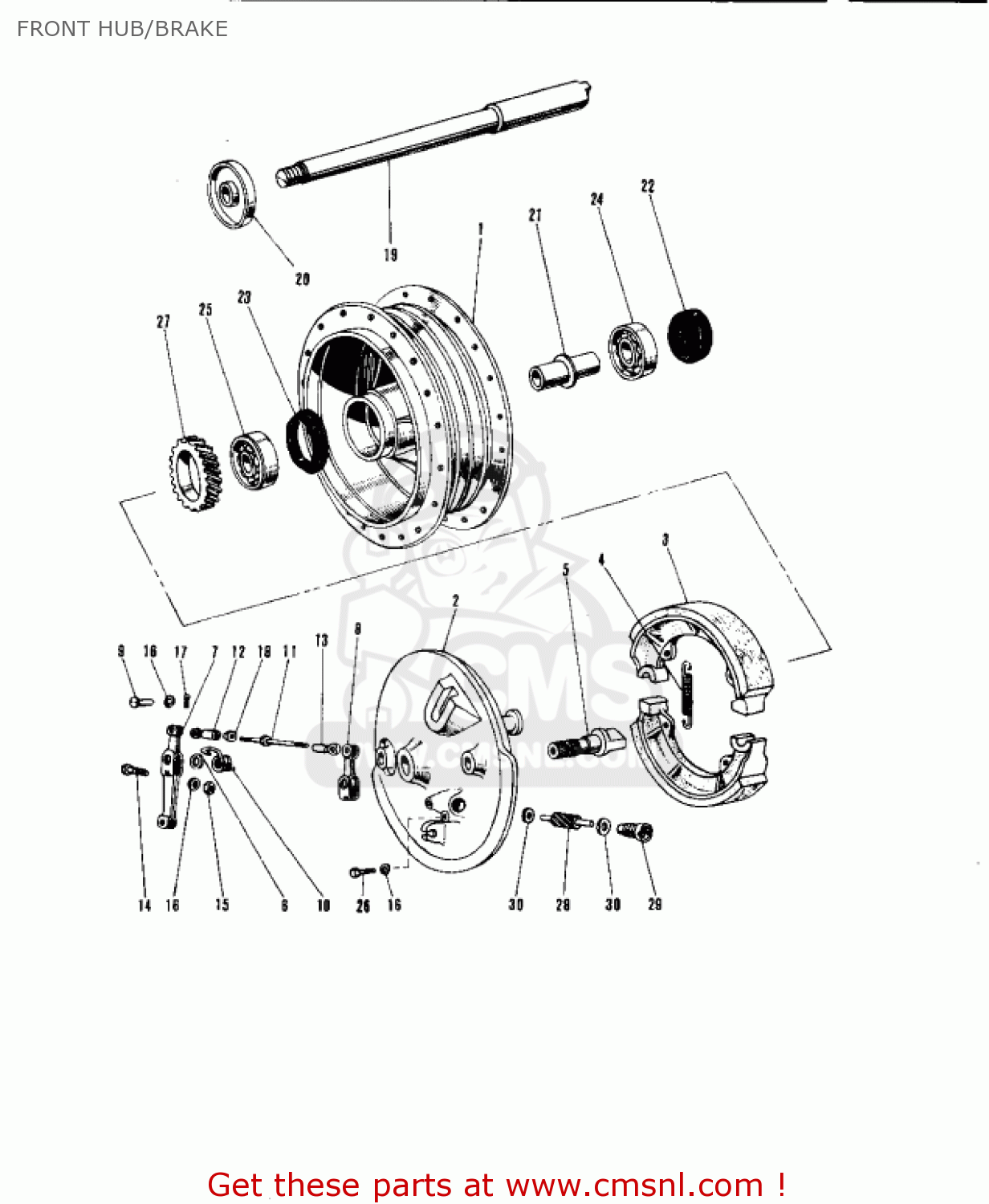

FRONT HUB/BRAKE

ref

part #

description

quantity

?

41034007
ref: ?
Includes item 1 and

DRUM ASSY-FRONT BRAKE

€ 100.00

?

4103506680
ref: ?
Includes items 2 - 1

FRONT BRAKE PANEL ASSEMBLY,BUFF

€ 807.00

3

41048019
ref: 3

SHOE, FRONT BRAKE (MCA)

€ 20.00

4

41049004
ref: 4

SPRING-FRNT BRK SHOE

€ 3.50

5

41050004
ref: 5

CAM SHAFT-FRONT BRAKE

€ 6.00

6

41051001
ref: 6

DUST SHIELD-BRAKE CAM

€ 2.50

7

41053011
ref: 7

LEVER-BRAKE CAM

€ 26.50

8

41053012
ref: 8

LEVER-BRAKE CAM

€ 18.50

9

41055003
ref: 9

PIN

€ 5.00

10

41056001
ref: 10

SPRING-FR BRK CAM LEV

€ 9.00

11

41057001
ref: 11

ROD-BRK CAM LEV CONCT

€ 2.00

11

41057004
ref: 11
I.S.O. THREAD

ROD-BRAKE

€ 30.50

12

41058002
ref: 12

ROD END-BRK CONNECT A

€ 11.00

12

41058008
ref: 12
I.S.O. THREAD

RODEND-BRAKE

€ 12.00

13

41058003
ref: 13

ROD END-BRK CONNECT B

€ 5.50

13

41058009
ref: 13
I.S.O. THREAD

RODEND-BRAKE

€ 12.00

14

112G0630
ref: 14

BOLT-UPSET

€ 1.00

15

311B0600
ref: 15

NUT,6MM

€ 0.50

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

550D1210
ref: 17

PIN-COTTER,1.2X10

€ 1.50

18

311B0500
ref: 18

NUT-HEX

€ 0.50

18

311B0500
ref: 18
I.S.O. THREAD

NUT-HEX

€ 0.50

19

41068015
ref: 19
FOR 44004-009

AXLE-FRONT

€ 22.00

19

41068016
ref: 19
FOR 44001-050

AXLE-FRONT

€ 22.00

20

41069007
ref: 20

COLLAR-F AXL OIL SEAL

€ 3.00

21

41039011
ref: 21

SPACER-FRNT AXLE BERG

€ 5.50

22

92052005
ref: 22

OIL SEAL WTC25428

€ 12.50

23

92050017
ref: 23

OIL SEAL WOC55687

€ 18.50

24

601B6302
ref: 24

BEARING-BALL,#6302C3

€ 15.00

25

601B6302Z
ref: 25

BEARING-BALL,#6302ZC3

€ 20.50

26

112G0618
ref: 26

BOLT-UPSET

€ 0.50

27

41059009
ref: 27

GEAR-SPEEDOMETER

€ 13.50

28

41060007
ref: 28

PINION-SPEEDOMETER

€ 22.50

29

41062003
ref: 29

BUSHING,SPEEDOMETER C

€ 20.00

30

41063003
ref: 30

WASHER,7.2X12X0.5

€ 2.50

all assemblies
