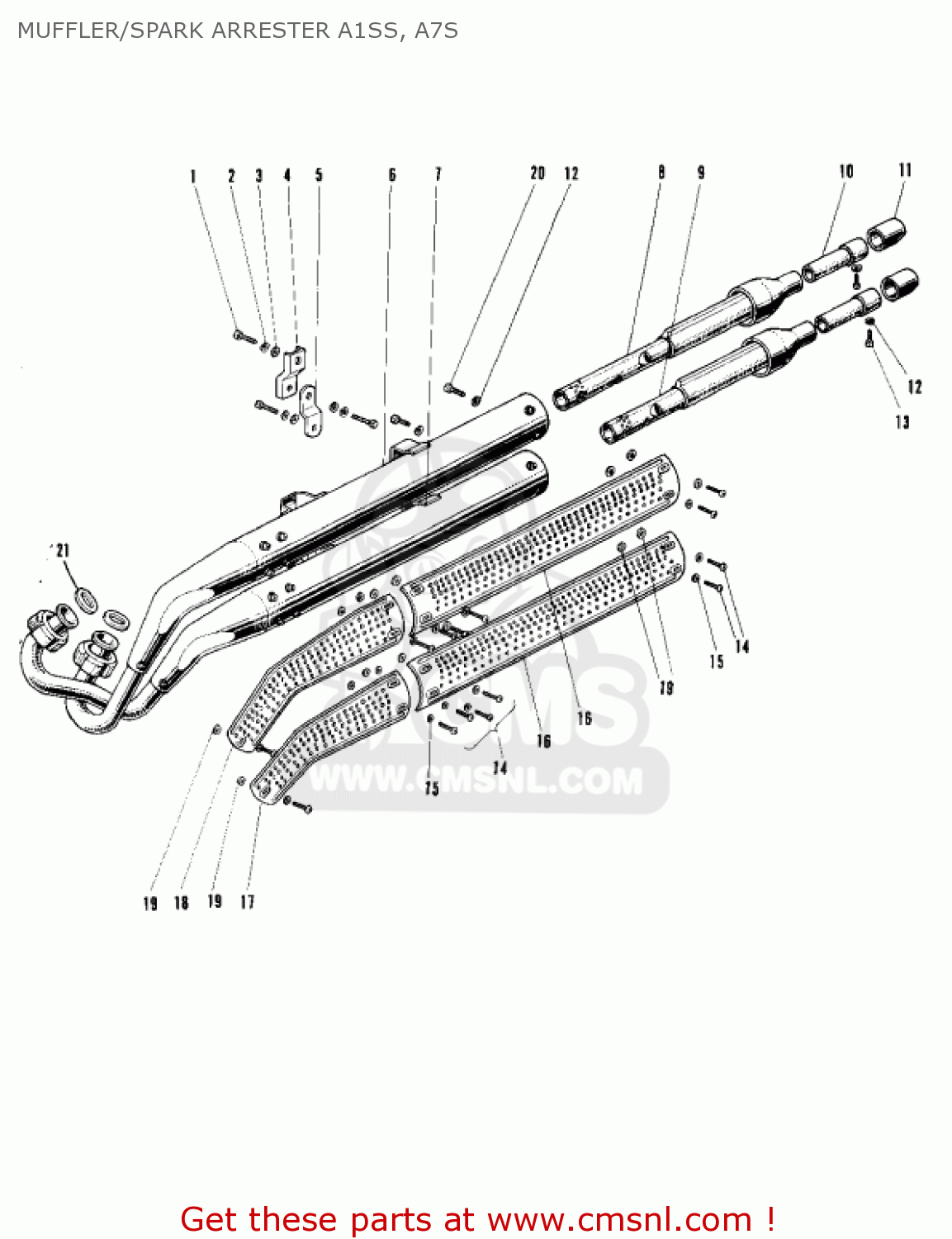

MUFFLER/SPARK ARRESTER A1SS, A7S

ref

part #

description

quantity

1

115G0820
ref: 1

BOLT,8X20

€ 2.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

410B0800
ref: 3

WASHER-PLAIN-SMALL,8M

€ 0.50

4

18061007
ref: 4

BRACKET-UPPER MUFFLER

€ 2.00

5

18061008
ref: 5

BRACKET-LOWER MUFFLER

€ 1.50

?

18002057
ref: ?
Includes items 6, 8,

MUFFLER ASSY-UPPER

€ 94.00

?

18002056
ref: ?
Includes items 6, 8,

MUFFLER ASSY-UPPER

€ 96.50

?

18003024
ref: ?
Includes items 7, 9,

MUFFLER ASSY-LOWER

€ 94.00

?

18003023
ref: ?
Includes items 7, 9,

MUFFLER ASSY-LOWER

€ 94.00

8

18033020
ref: 8

SPARK ARRESTOR COMP U

€ 14.00

9

18033022
ref: 9

SPARK ARRESTOR COMP L

€ 29.50

10

18033039
ref: 10
L=92 M/M

BAFFLE TUBE

€ 147.00

10

18033023
ref: 10
L=200 M/M

BAFFLE TUBE

€ 29.50

11

18048006
ref: 11
NOT REQUIRED FOR 180

TAIL PIECE

€ 9.50

12

461F0600
ref: 12

WASHER-SPRING,6MM

€ 0.50

13

112G0610
ref: 13

BOLT,6X10

€ 0.50

13

220B0610
ref: 13

SCREW-PAN HEAD,6X10

€ 2.00

14

220E0608
ref: 14

SCREW-PAN HEAD,6X8

€ 2.00

15

411B0600
ref: 15

WASHER-PLAIN,6MM

€ 0.50

16

18057014
ref: 16

COVER-MUFFLER REAR

€ 7.50

17

18057013
ref: 17

COVER-MUFFLER LOWER

€ 7.50

18

18057012
ref: 18

COVER-MUFFLER UPPER

€ 7.50

19

18065002
ref: 19

INSULATOR-HEAT

€ 3.00

20

112G0610
ref: 20

BOLT,6X10

€ 0.50

21

18067008
ref: 21

GASKET-EXHAUST PIPE (NAS)

€ 9.50
