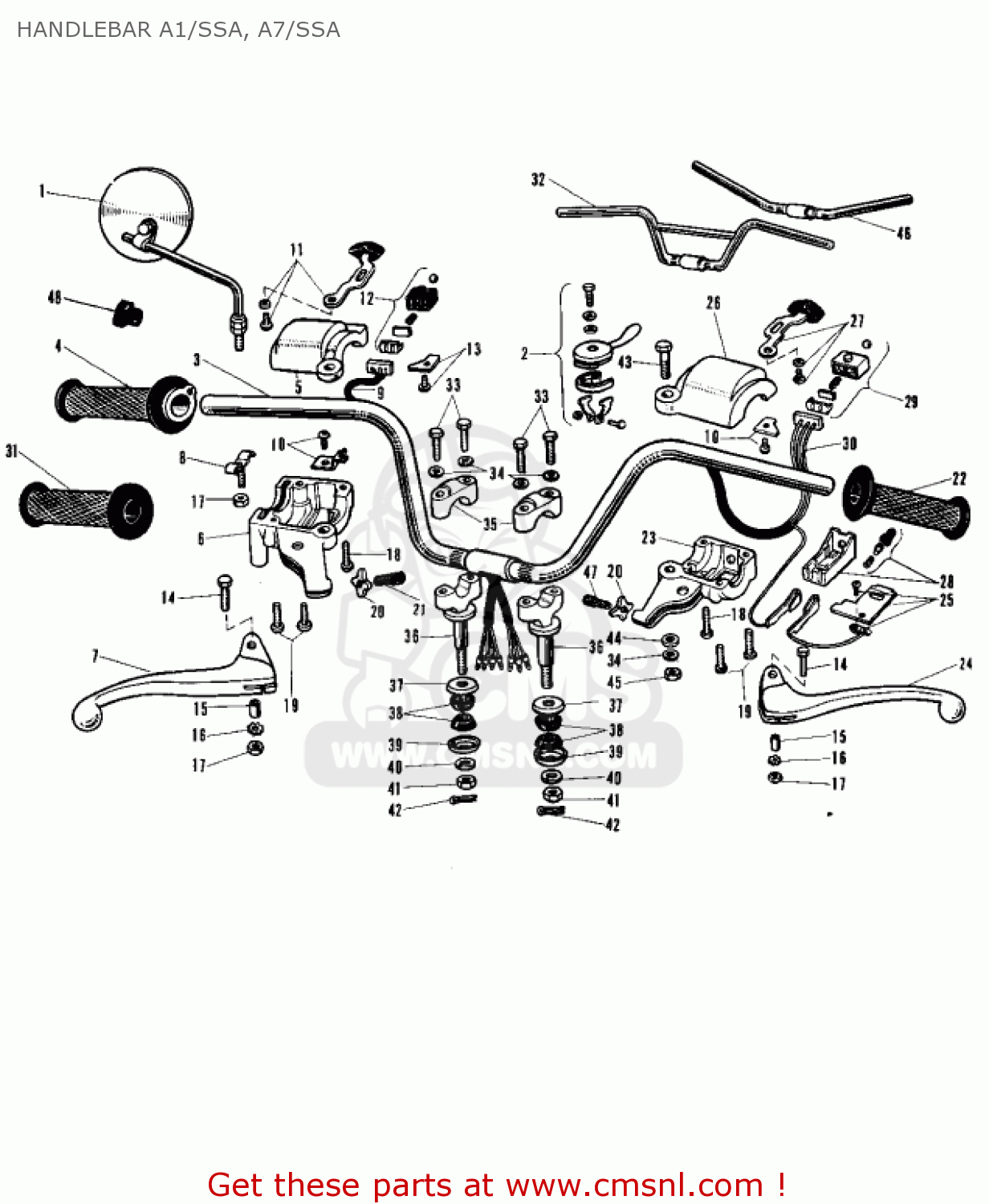

HANDLEBAR A1/SSA, A7/SSA

ref

part #

description

quantity

1

56001005
ref: 1

REAR VIEW MIRROR

€ 51.00

2

46109012
ref: 2

LEVER ASSY, STARTER

€ 15.00

3

46003018
ref: 3

HANDLEBAR

€ 30.50

?

46017042
ref: ?
Includes items 4 - 2

GRIP ASSY-R.H

€ 85.00

4

46019005
ref: 4

GRIP-ASSY,THROTTLE

€ 34.00

5

460171071
ref: 5

GRIP-ASSY-RIGHT

€ 73.00

6

46022012
ref: 6

CASE-R.H SWITCH LOWER

€ 20.50

7

46058004
ref: 7

LEVER-GRIP,FRONT BRAK

€ 21.50

8

46024002
ref: 8
I.S.O. THREAD

SPRING-THROTTLE GRIP

€ 0.50

9

46032010
ref: 9

WIRING HARNESS-R.H SW

€ 2.50

10

46037009
ref: 10

HOLDER-R.H SWITCH

€ 2.00

11

46043002
ref: 11

KNOB ASSY-R.H SWITCH

€ 2.50

12

46045004
ref: 12

SLIDE BLOCK AY-R.H SW

€ 4.50

13

46085012
ref: 13

HOLDER-WIRING HARNESS

€ 1.50

14

92007020
ref: 14
I.S.O. THREAD

BOLT-HEX HEAD,5X20

€ 2.50

15

46059011
ref: 15
I.S.O. THREAD

COLLAR,LEVER

€ 3.50

16

464H0500
ref: 16

WASHER-LOCK,5MM

€ 0.50

17

312B0500
ref: 17
I.S.O. THREAD

NUT-HEX,5MM

€ 0.50

18

220B0518
ref: 18
I.S.O. THREAD

SCREW-PAN HEAD,5X18

€ 2.00

19

220B0520
ref: 19
I.S.O. THREAD

SCREW-PAN-CROS

€ 0.50

20

46056001
ref: 20

NUT-ADJUST SCREW LOCK

€ 2.50

21

46055003
ref: 21
D=80

SCREW-CABLE ADJUST

€ 10.00

?

46074020
ref: ?
Includes items 14 -

GRIP ASSY L.H.

€ 99.50

22

46075007
ref: 22

GRIP,LH

€ 14.00

23

46077008
ref: 23

CASE-L.H SWITCH LOWER

€ 19.00

24

46092015
ref: 24

LEVER-GRIP,CLUTCH

€ 11.00

25

46085008
ref: 25

HOLDER-L.H SWITCH

€ 8.50

26

46086007
ref: 26

CASE-L.H SWITCH UPPER

€ 11.00

27

46088001
ref: 27

KNOB ASSY-L.H SWITCH

€ 5.00

28

46078003
ref: 28

SWITCH ASSY LH BUTTON

€ 5.00

29

46089002
ref: 29

SLIDE BLOCK AY-L.H SW

€ 6.50

30

46082011
ref: 30

WIRING HARNESS-L.H SW

€ 9.00

31

46061009
ref: 31

RUBBER-R.H GRIP

€ 4.00

32

46004014
ref: 32

HANDLEBAR

€ 57.50

33

920011405
ref: 33

BOLT,8X38

€ 9.00

34

461F0800
ref: 34

WASHER-SPRING,8MM

€ 0.50

35

46012004
ref: 35

HOLDER-UPPER HANDLBAR

€ 13.00

36

46012007
ref: 36

HOLDER-HANDLEBAR LOW

€ 12.50

37

46016003
ref: 37

PLATE,HANDLE HOLDER

€ 3.50

38

92075039
ref: 38

DAMPER RUBBER-HANDLE

€ 2.50

39

46016003
ref: 39

PLATE,HANDLE HOLDER

€ 3.50

40

461F1000
ref: 40

WASHER-SPRING,10MM

€ 0.50

41

314B1000
ref: 41

NUT,10MM

€ 0.50

42

550D2520
ref: 42

PIN-COTTER,2.5X20

€ 1.00

43

116B0840
ref: 43

BOLT-HEX HEAD,8X40

€ 3.50

44

410B0800
ref: 44

WASHER-PLAIN-SMALL,8M

€ 0.50

45

311B0800
ref: 45

NUT,8MM

€ 0.50

46

46005006
ref: 46

HANDLEBAR LOW

€ 16.00

47

46055010
ref: 47
D=7M/M

SCREW,CABLE ADJUST

€ 18.50

48

56019048
ref: 48

PLUG-HANDLEBAR B

€ 1.50
