RADIATOR

ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

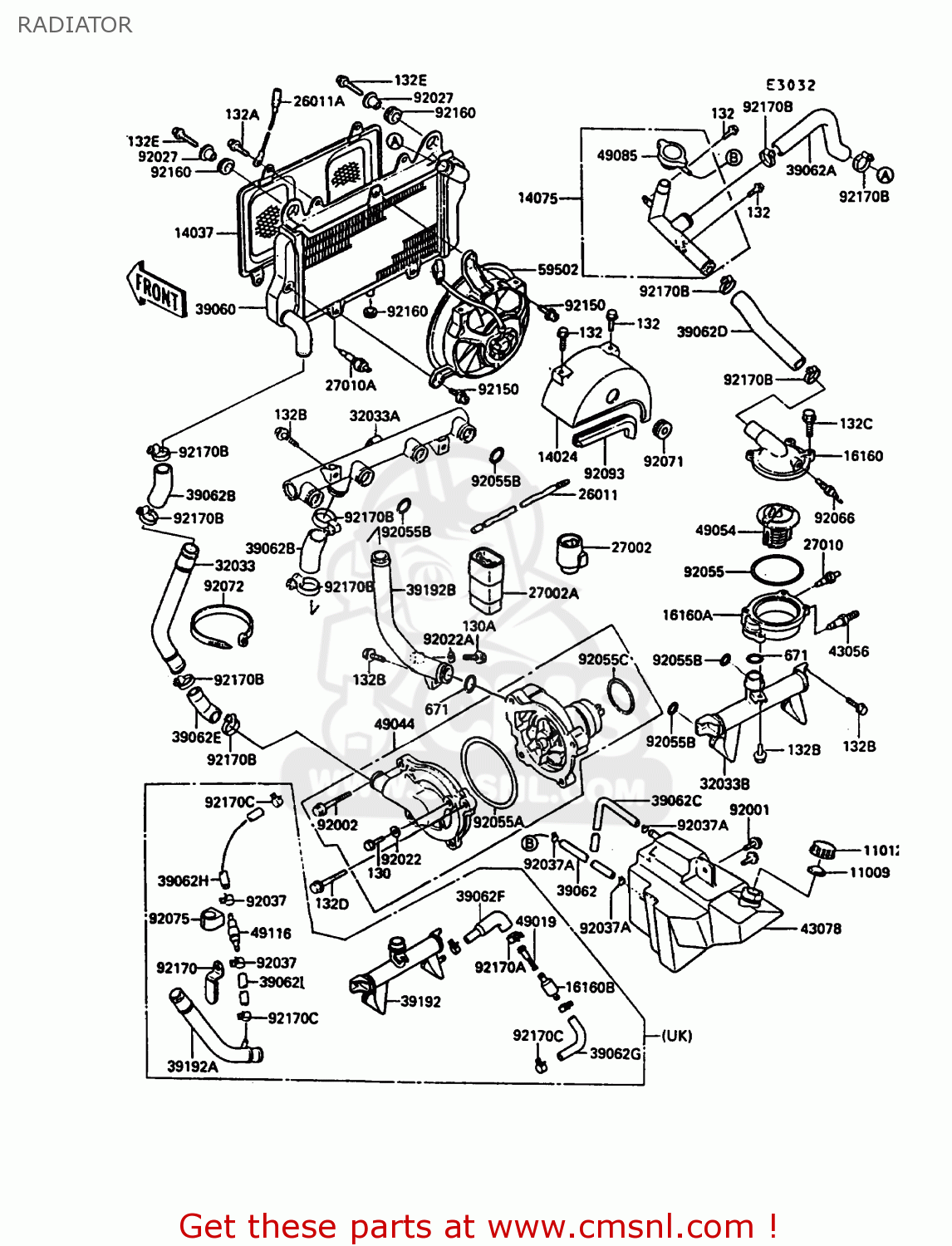

Radiator diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

RADIATOR ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
RADIATOR ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
RADIATOR ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140251892
ref: 14024
COVER,FAN
€ 111.00
14037
140371063
ref: 14037
SCREEN,RADIATOR
140371063
€ 62.50
14075
140751055
ref: 14075
CAP-ASSY,RADIATOR
€ 160.00
16160
161601067
ref: 16160
BODY,THERMOSTAT,UPP
161601067
€ 52.00
16160A
161601068
ref: 16160A
BODY,THERMOSTAT,LWR
161601068
€ 63.50
16160B
161601151
ref: 16160B
UK
BODY,FILTER
161601151
€ 6.50
26011
260111204
ref: 26011
WIRE-LEAD,OIL TEMPERA
260111204
€ 8.00
26011A
260111282
ref: 26011A
WIRE-LEAD
260111282
€ 7.50
27002
270021054
ref: 27002
RELAY-ASSY
270021054
€ 31.50
27002A
270021055
ref: 27002A
RELAY-ASSY
270021055
€ 53.00
27010
270101036
ref: 27010
SWITCH,FAN
270101036
€ 75.00
27010A
270101167
ref: 27010A
SWITCH,FAN
270101167
€ 108.50
32033
320331207
ref: 32033
EUFGNRSDSP
PIPE
320331207
€ 50.00
32033
320331207
ref: 32033
EUFGNRSD
PIPE
320331207
€ 50.00
32033A
320331262
ref: 32033A
PIPE
€ 124.50
32033B
320331719
ref: 32033B
EUFGNRSDSP
PIPE
320331719
€ 102.00
32033B
320331719
ref: 32033B
EUFGNRSD
PIPE
320331719
€ 102.00
39060
390601059
ref: 39060
RADIATOR-ASSY
€ 718.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621070
ref: 39062A
HOSE-COOLING
390621070
€ 23.50
39062B
390621072
ref: 39062B
HOSE-COOLING
390621072
€ 14.00
39062C
390621075
ref: 39062C
HOSE-COOLING
€ 17.50
39062D
390621091
ref: 39062D
HOSE-COOLING
390621091
€ 25.50
39062E
390621092
ref: 39062E
HOSE-COOLING
390621092
€ 14.00
39062F
390621310
ref: 39062F
UK
HOSE-COOLING,HEAD PIP
390621310
€ 9.00
39062G
390621344
ref: 39062G
UK
HOSE-COOLING
€ 5.50
39062H
390621382
ref: 39062H
UK
HOSE-COOLING,VALVE-PU
390621382
€ 4.00
39062I
390621420
ref: 39062I
UK
HOSE-COOLING,VALVE-PU
€ 6.00
39192
391921003
ref: 39192
UK
PIPE-WATER
391921003
€ 107.00
39192A
391921013
ref: 39192A
UK
PIPE-WATER
€ 43.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130J0610
ref: 130A
BOLT-FLANGED
130J0610
€ 1.50
132
132J0608
ref: 132
BOLT-FLANGED-SMALL
132J0608
€ 2.50
39192B
391921028
ref: 39192B
PIPE-WATER
391921028
€ 98.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781053
ref: 43078
RESERVOIR
430781053
€ 66.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
49044
490441058
ref: 49044
PUMP-WATER
490441058
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
490851054
€ 39.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
491161081
€ 85.00
59502
595021053
ref: 59502
FAN-ASSY
595021053
€ 655.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
920371181
ref: 92037
UK
CLAMP
920371181
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551271
ref: 92055A
RING-O,WATER PUMP
920551271
€ 7.00
92055B
920551282
ref: 92055B
RING-O
920551282
€ 3.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92071
920711116
ref: 92071
GROMMET
920711116
€ 3.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92075
920751729
ref: 92075
UK
DAMPER,CARRIER
920751729
€ 4.50
92093
920931168
ref: 92093
SEAL,FAN COVER
920931168
€ 15.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
920371997
ref: 92170
UK
CLAMP
920371997
€ 3.00
92170A
921701118
ref: 92170A
UK
CLAMP
921701118
€ 5.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
921701284
€ 7.50
92170C
921702042
ref: 92170C
UK
CLAMP
921702042
€ 1.00
132A
132J0610
ref: 132A
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132C
132J0620
ref: 132C
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132D
132J0640
ref: 132D
BOLT-FLANGED-SMALL
132J0640
€ 3.00
132E
132J0825
ref: 132E
BOLT-FLANGED-SMALL
132J0825
€ 2.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
