Genuine ZX Kawasaki Parts delivered quickly!


FUEL TANK

ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

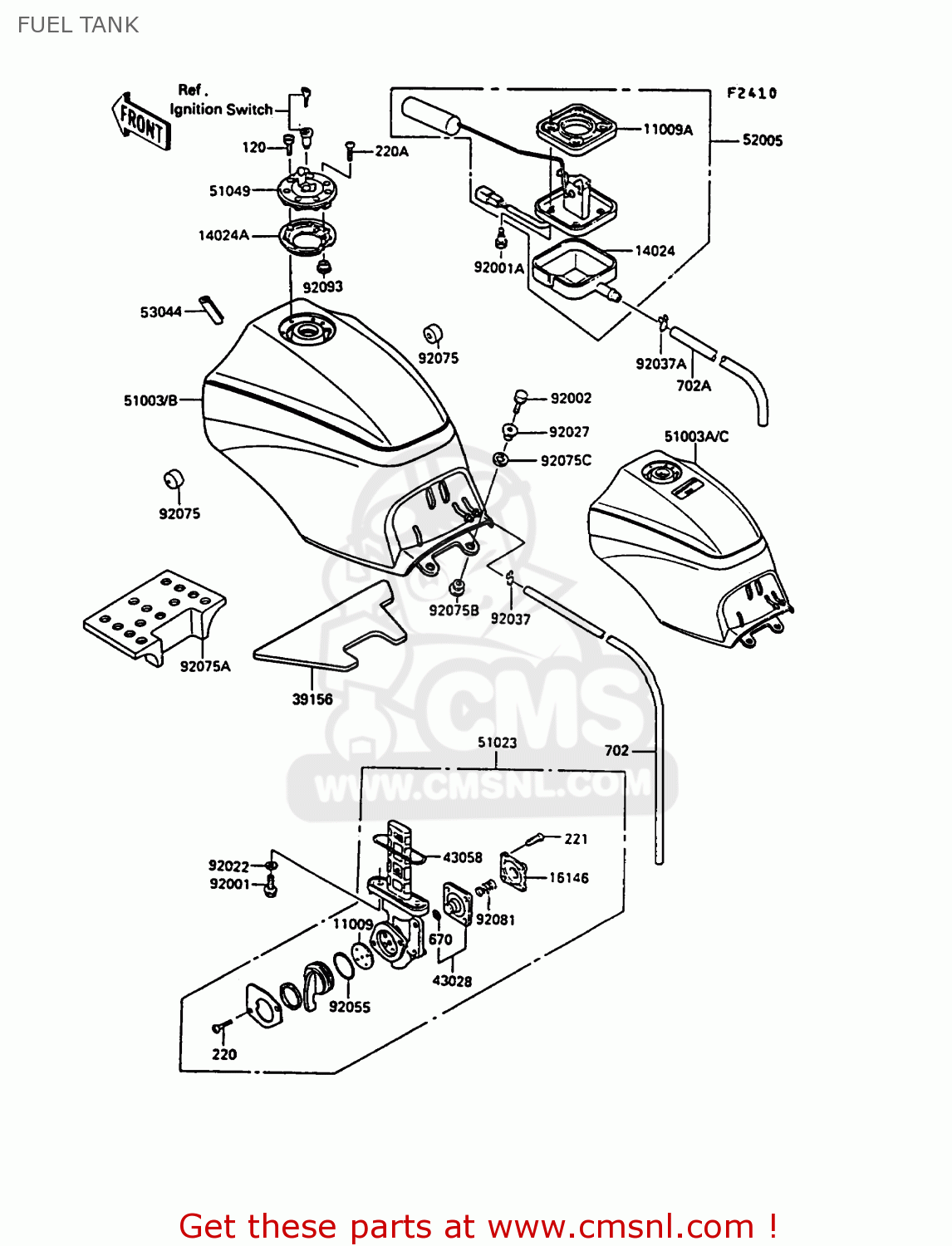

Fuel tank diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

FUEL TANK ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
FUEL TANK ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
FUEL TANK ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
11009
110091194
ref: 11009
GASKET,TAP VALVE (NAS)
110091194
€ 6.50
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14024
140251536
ref: 14024
COVER,FUEL GAGE
140251536
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
140251913
€ 13.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
161461005
€ 14.00
39156
391561186
ref: 39156
PAD,FUEL TANK
391561186
€ 10.00
43028
430281015
ref: 43028
DIAPHRAGM,TAP
430281015
€ 14.50
43058
51039010
ref: 43058
RING,TAP FLANGED
51039010
€ 4.50
51003
510035117J3
ref: 51003
EUNRSDSPUK
TANK-COMP-FUEL,EBONY/
€ 1,137.50
51003
510035117J3
ref: 51003
EUNRSDUK
TANK-COMP-FUEL,EBONY/
€ 1,137.50
51003A
510035124J3
ref: 51003A
FG
TANK-COMP-FUEL,EBONY/
€ 1,137.50
51003B
510035142T4
ref: 51003B
EUNRSPUK
TANK-COMP-FUEL,EBONY/
€ 1,288.50
51003B
510035142T4
ref: 51003B
EUNRUK
TANK-COMP-FUEL,EBONY/
€ 1,288.50
51003C
510035143T4
ref: 51003C
FG
TANK-COMP-FUEL,EBONY/
€ 1,288.50
51023
510231110
ref: 51023
TAP-ASSY,FUEL
510231110
€ 105.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
510491079
€ 106.50
52005
520051058
ref: 52005
GAUGE,FUEL
520051058
€ 110.00
53044
530441171
ref: 53044
TRIM,L=120
530441171
€ 4.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
920011705
€ 2.50
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551027
ref: 92055
RING-O,TAP LEVER
920551027
€ 3.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751672
ref: 92075A
DAMPER,FUEL TANK
920751672
€ 25.00
92075B
92075174
ref: 92075B
DAMPER,MALE
92075174
€ 3.00
92075C
92075175
ref: 92075C
DAMPER,FEMALE
92075175
€ 2.50
92081
920811171
ref: 92081
SPRING,TAP
920811171
€ 2.50
92093
920931030
ref: 92093
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
702
702A07640
ref: 702
TUBE-RUBBER,7X10X640
€ 9.50
702A
702A07860
ref: 702A
TUBE-RUBBER
702A07860
€ 9.50
