CLUTCH MASTER CYLINDER

ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

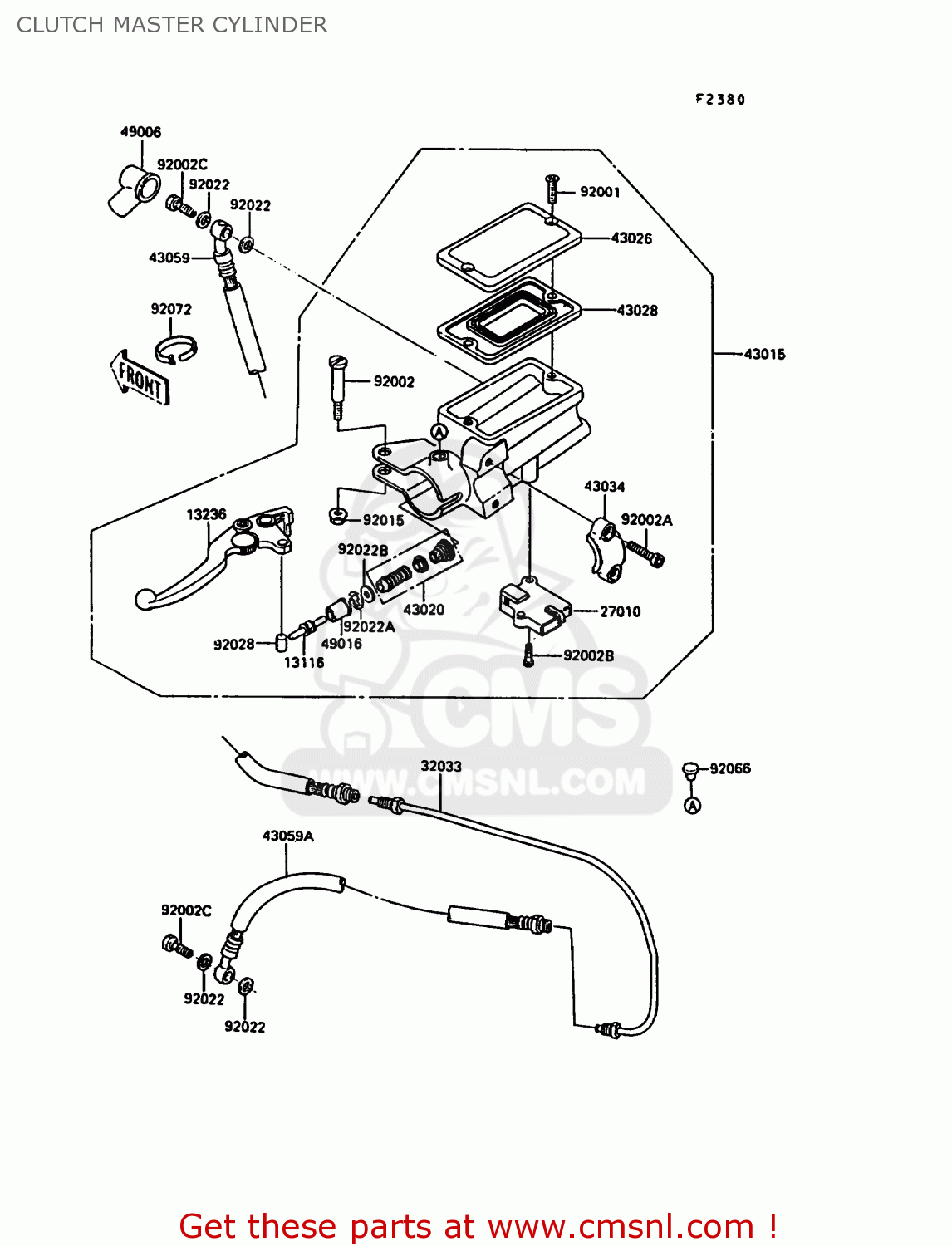

Clutch master cylinder diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

CLUTCH MASTER CYLINDER ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
CLUTCH MASTER CYLINDER ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
CLUTCH MASTER CYLINDER ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
131161110
€ 24.00
13236
132361186
ref: 13236
LEVER-COMP,CLUTCH
132361186
€ 45.50
27010
270101171
ref: 27010
SWITCH,CLUTCH
270101171
€ 25.00
32033
320331243
ref: 32033
PIPE,CLUTCH
320331243
€ 102.50
43015
430151380
ref: 43015
CYLINDER-ASSY-MASTER,
€ 372.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
430201055
€ 47.50
43026
430261052
ref: 43026
CAP-BRAKE,FR
430261052
€ 41.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341054
ref: 43034
HOLDER-BRAKE,MASTER C
430341054
€ 26.00
43059
430591262
ref: 43059
HOSE-BRAKE,L=350
430591262
€ 85.50
43059A
430591263
ref: 43059A
HOSE-BRAKE,L=320
430591263
€ 85.50
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92001
920011727
ref: 92001
BOLT,MASTER CYLINDER
920011727
€ 2.50
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021324
ref: 92002A
BOLT,SOCKET,6X20
920021324
€ 5.00
92002B
920021325
ref: 92002B
BOLT
920021325
€ 4.00
92002C
920021888
ref: 92002C
BOLT,OIL,L=23
920021888
€ 3.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92022A
920221605
ref: 92022A
WASHER,PISTON
920221605
€ 3.00
92022B
920221606
ref: 92022B
WASHER,PISTON
920221606
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
920281310
€ 10.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
920661077
€ 3.00
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
