COWLING

ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

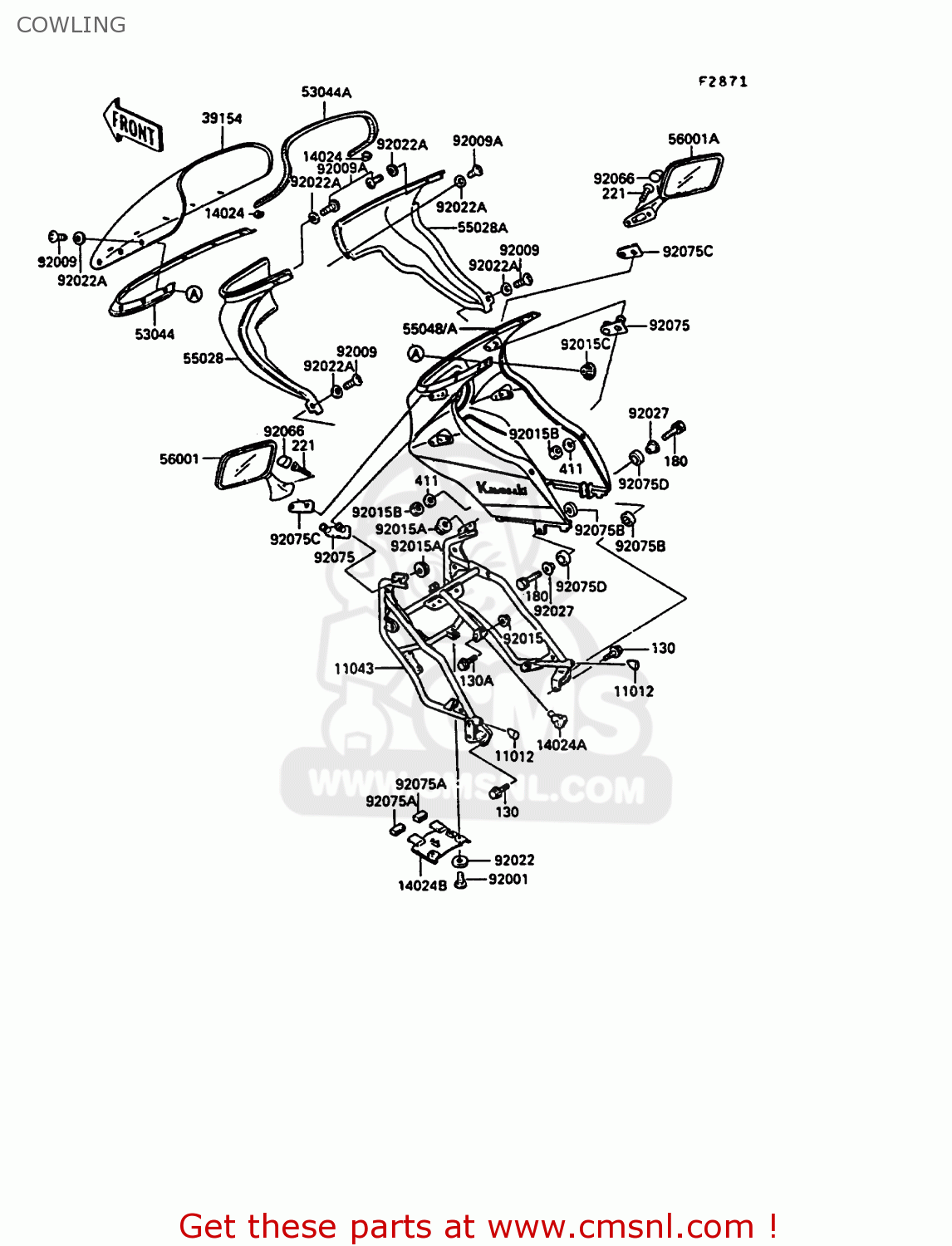

Cowling diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

COWLING ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
COWLING ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
COWLING ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
prices are in EUR
ref
part #
description
quantity
130
130J0812
ref: 130
BOLT-FLANGED
130J0812
€ 0.50
130A
130J0830
ref: 130A
BOLT-FLANGED,8X30
130J0830
€ 2.50
180
180B0625
ref: 180
BOLT-UPSET-WS
180B0625
€ 2.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
221C0630
€ 1.00
411
411B0500
ref: 411
WASHER-PLAIN,5MM
411B0500
€ 0.50
11012
110121401
ref: 11012
CAP,COWLING BRACKET
110121401
€ 6.50
11043
110431452
ref: 11043
BRACKET,COWLING BODY
110431452
€ 295.00
14024
140241730
ref: 14024
COVER,TRIM END
140241730
€ 3.00
14024A
140251718
ref: 14024A
COVER,COWLING BRACKET
140251718
€ 9.50
14024B
140251823
ref: 14024B
COVER,HEAD LAMP
140251823
€ 26.50
39154
391541091
ref: 39154
WINDSHIELD
391541091
€ 222.00
53044
530441119
ref: 53044
TRIM,INNER COWLING
530441119
€ 39.50
53044A
530441229
ref: 53044A
TRIM
530441229
€ 13.50
55028
550281066
ref: 55028
COWLING,UPP,INNER,LH
550281066
€ 52.50
55028A
550281067
ref: 55028A
COWLING,UPP,INNER,RH
550281067
€ 45.50
55048
550485359J3
ref: 55048
COWLING.,UPP,OUTER,EB
€ 771.50
55048A
550485407T4
ref: 55048A
EUFGNRSPUK
COWLING.,UPP,OUTER,EB
€ 848.50
55048A
550485407T4
ref: 55048A
EUFGNRUK
COWLING.,UPP,OUTER,EB
€ 848.50
56001
560011305
ref: 56001
MIRROR-ASSY,LH
560011305
€ 69.50
56001A
560011306
ref: 56001A
MIRROR-ASSY,RH
560011306
€ 69.50
92001
920011782
ref: 92001
BOLT,6X14
920011782
€ 2.50
92009
920091301
ref: 92009
SCREW,5X16
920091301
€ 0.50
92009A
920091335
ref: 92009A
SCREW,5X10
920091335
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
920151193
€ 0.50
92015B
920151259
ref: 92015B
NUT,FLANGED,5MM
920151259
€ 2.50
92015C
920151343
ref: 92015C
NUT,5MM,COWLING
920151343
€ 3.00
92022
920221342
ref: 92022
WASHER,6.5X16X2
920221342
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92066
920661280
ref: 92066
PLUG
920661280
€ 3.00
92075
920751492
ref: 92075
DAMPER,MIRROR
920751492
€ 5.00
92075A
920751602
ref: 92075A
DAMPER,COWLING
920751602
€ 3.00
92075B
92075174
ref: 92075B
DAMPER,MALE
92075174
€ 3.00
92075C
920751745
ref: 92075C
DAMPER,MIRROR
920751745
€ 5.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
92075175
€ 2.50
