METER
ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

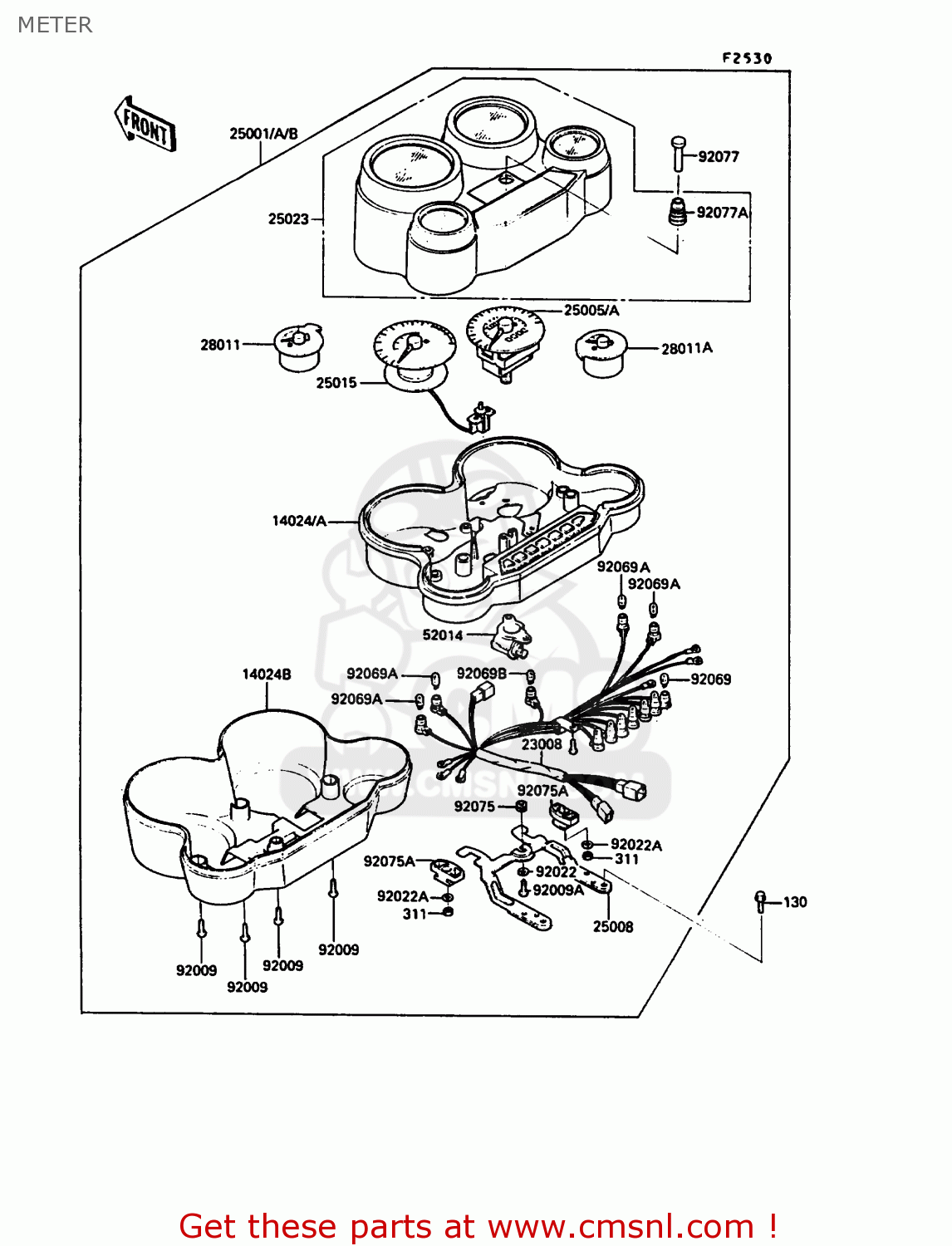

Meter diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
METER ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
×
prices are in EUR
ref
part #
description
quantity
130
130C0614
ref: 130
BOLT-FLANGED,6X14
€ 1.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
14024
140241678
ref: 14024
EUFGSPUK
COVER,METER HOUSING
€ 35.50
14024
140241678
ref: 14024
EUFGUK
COVER,METER HOUSING
€ 35.50
14024A
140241688
ref: 14024A
NRSD
COVER,METER HOUSING
€ 44.50
14024B
140251878
ref: 14024B
COVER,METER CASE,LWR
€ 41.00
23008
230081441
ref: 23008
SOCKET-ASSY,METER
€ 161.00
25001
250011805
ref: 25001
EUFGSP
METER-ASSY,KPH
€ 2,308.50
25001
250011805
ref: 25001
EUFG
METER-ASSY,KPH
€ 2,308.50
25001A
250011806
ref: 25001A
UK
METER-ASSY,MPH
€ 2,308.50
25001B
250011807
ref: 25001B
NRSD
METER-ASSY,KPH
€ 2,306.00
25005
250051449
ref: 25005
EUFGNRSDSP
SPEEDOMETER,KPH
€ 154.00
25005
250051449
ref: 25005
EUFGNRSD
SPEEDOMETER,KPH
€ 154.00
25005A
250051450
ref: 25005A
UK
SPEEDOMETER,MPH
€ 154.00
25008
250081108
ref: 25008
BRACKET-METER
€ 69.00
25015
250151291
ref: 25015
TACHOMETER,X1000R/MIN
€ 357.00
25023
250231171
ref: 25023
COVER-METER CASE,UPP
€ 114.50
28011
280111108
ref: 28011
METER,FUEL
€ 118.00
28011A
280111109
ref: 28011A
METER,TEMP
€ 114.50
52014
520141006
ref: 52014
ELBOW,SPEEDOMETER GEA
€ 35.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091326
ref: 92009A
SCREW,3X12
€ 2.50
92022
920221374
ref: 92022
WASHER,3MM
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92069B
920691059
ref: 92069B
BULB,12V 1.7W
€ 2.50
92075
920751435
ref: 92075
DAMPER,METER BRACKET
€ 4.00
92075A
920751495
ref: 92075A
DAMPER,METER BRACKET
€ 8.00
92077
920771083
ref: 92077
KNOB,TRIP RESET
€ 6.00
92077A
920771087
ref: 92077A
KNOB,TRIP RESET
€ 6.00
