FRAME
ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

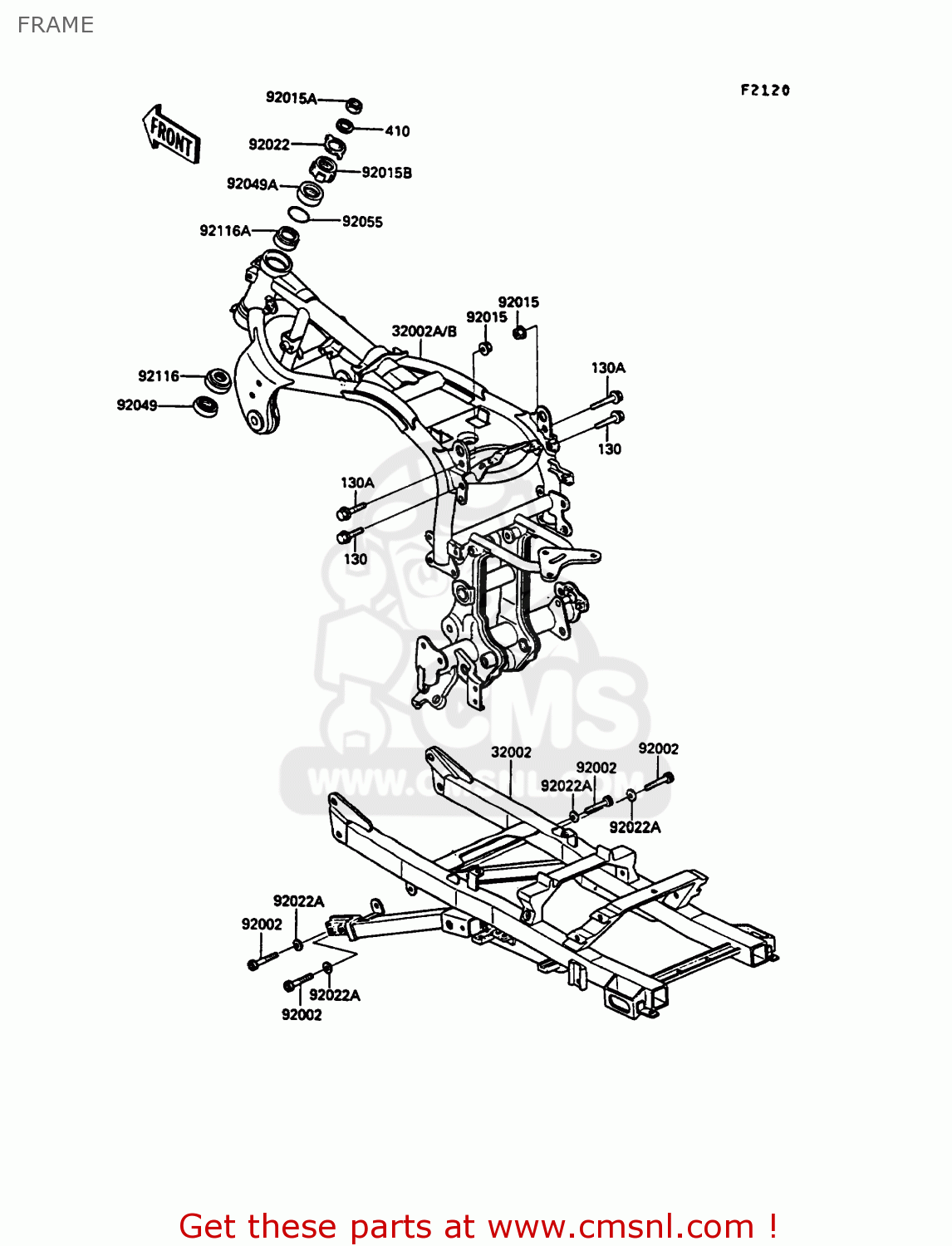

Frame diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
FRAME ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
×
prices are in EUR
ref
part #
description
quantity
130
130G0820
ref: 130
BOLT,FLANGED,8X20
€ 0.50
130A
130G0825
ref: 130A
BOLT,FLANGED,8X25
€ 0.50
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
32002
32002171210
ref: 32002
FRAME-COMP,AL,RR
€ 826.00
32002A
320021842
ref: 32002A
EUSPUK
FRAME-COMP,FR
€ 1,039.50
32002A
320021842
ref: 32002A
EUUK
FRAME-COMP,FR
€ 1,039.50
32002B
320021843
ref: 32002B
FGNRSD
FRAME-COMP,FR
€ 972.00
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
€ 3.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151404
ref: 92015A
NUT,18MM
€ 15.50
92015B
920151546
ref: 92015B
NUT,25MM,T=12
€ 14.50
92022
920221555
ref: 92022
WASHER,CLAW,18.5X30X2
€ 4.50
92022A
920221595
ref: 92022A
WASHER,8.5X16X2.5
€ 1.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92055
920551459
ref: 92055
RING-O,ID=24.5
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161056
ref: 92116A
BEARING-ROLLER
€ 48.50
