CLUTCH
ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

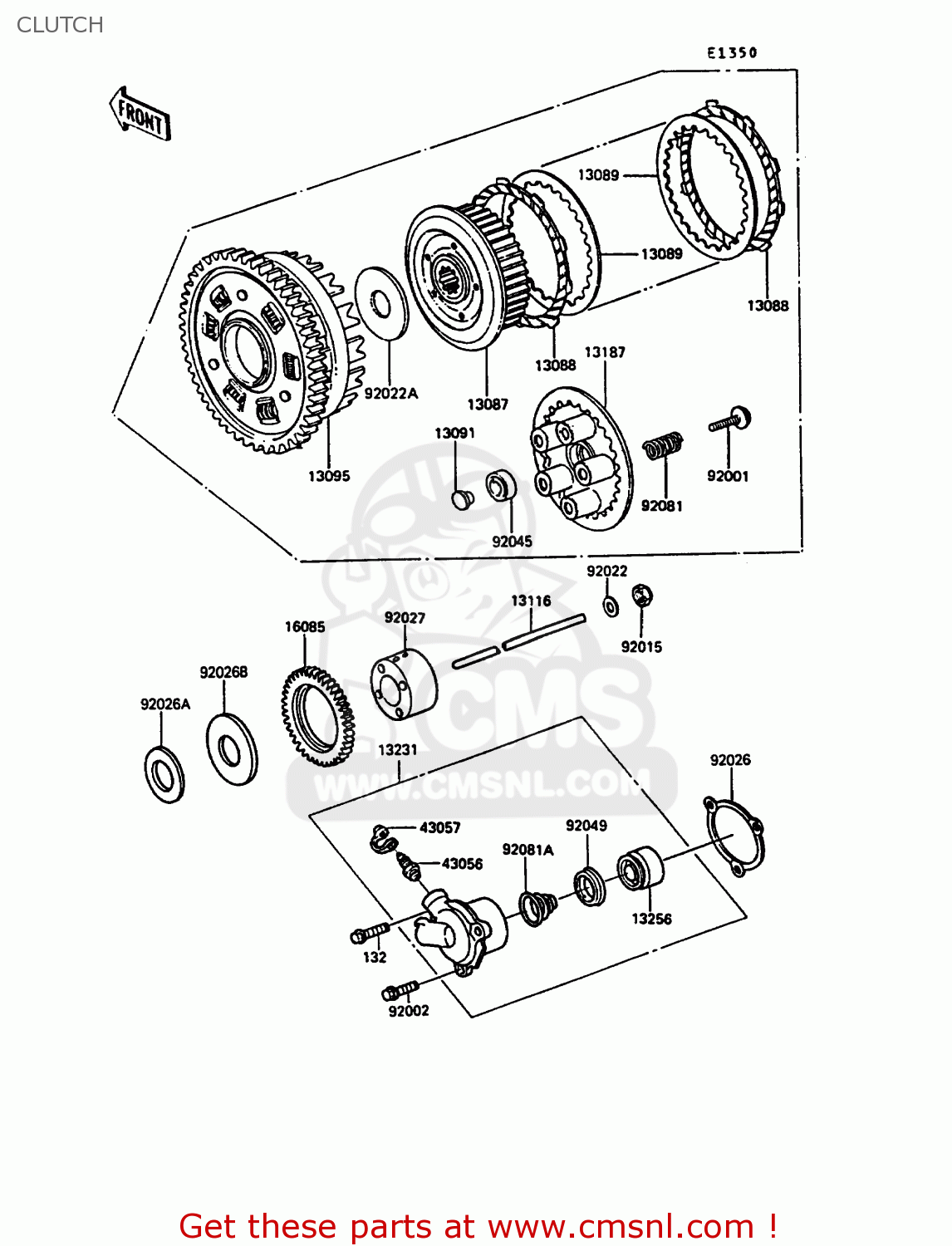

Clutch diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
CLUTCH ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
×
prices are in EUR
ref
part #
description
quantity
132
132J0680
ref: 132
BOLT-FLANGED-SMALL
€ 4.00
13087
13087042
ref: 13087
HUB,CLUTCH
€ 133.00
13088
130881013
ref: 13088
PLATE-FRICTION (NAS)
€ 12.50
13089
13089027
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13091
130911085
ref: 13091
HOLDER,CLUTCH PUSH RO
€ 6.50
13095
130951245
ref: 13095
HOUSING-COMP-CLUTCH
€ 413.50
13116
131161104
ref: 13116
ROD-PUSH,CLUTCH
€ 22.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 58.00
13231
132311066
ref: 13231
RELEASE-ASSY-CLUTCH
€ 124.50
13256
132561051
ref: 13256
PISTON,CLUTCH RELEASE
€ 38.50
16085
160851108
ref: 16085
GEAR,OIL PUMP
€ 117.00
43056
430561052
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92002
920021344
ref: 92002
BOLT,6X25
€ 1.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92022A
920221592
ref: 92022A
WASHER,CLUTCH THRUST
€ 24.00
92026
920261263
ref: 92026
SPACER,CLUTCH RELEASE
€ 11.50
92026A
920261306
ref: 92026A
SPACER
€ 12.50
92026B
920261307
ref: 92026B
SPACER
€ 12.50
92027
920271710
ref: 92027
COLLAR
€ 61.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92081
920811033
ref: 92081
SPRING,CLUTCH
€ 6.50
92081A
920811644
ref: 92081A
SPRING,CLUTCH RELEASE
€ 5.50
