COWLING LOWERS)

ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

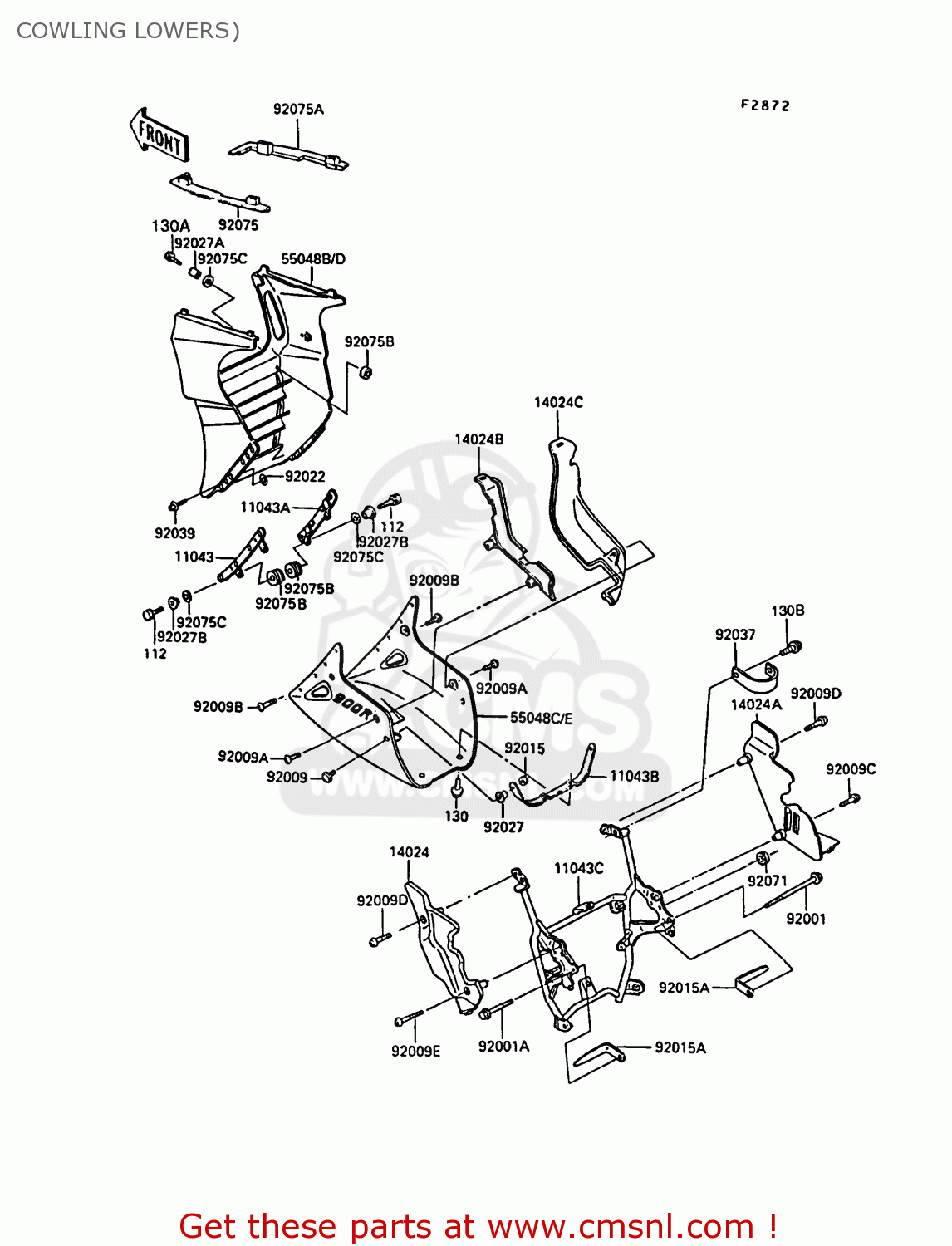

Cowling lowers) diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

COWLING LOWERS) ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
COWLING LOWERS) ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
COWLING LOWERS) ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
prices are in EUR
ref
part #
description
quantity
11043
110431630
ref: 11043
BRACKET,CENTER COWLIN
110431630
€ 13.00
11043A
110431631
ref: 11043A
BRACKET,CENTER COWLIN
€ 13.00
11043B
110431632
ref: 11043B
BRACKET,COWLING,LWR
110431632
€ 33.50
11043C
110431873
ref: 11043C
BRACKET,COWLING,LWR,C
€ 269.50
14024
140251893
ref: 14024
COVER,COWLING BRACKET
140251893
€ 28.00
14024A
140251894
ref: 14024A
COVER
140251894
€ 28.00
14024B
140251896
ref: 14024B
COVER,COWLING,LWR,LH
140251896
€ 41.00
14024C
140251897
ref: 14024C
COVER,COWLING,LWR,RH
140251897
€ 36.50
112
112B0625
ref: 112
BOLT-UPSET,6X25
€ 4.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
55048B
550485360J3
ref: 55048B
COWLING.,CNT,EBONY/RE
€ 444.00
55048C
550485361B1
ref: 55048C
COWLING.,LWR,F.RED
550485361B1
€ 279.50
55048D
550485408T4
ref: 55048D
EUFGNRSPUK
COWLING.,CNT,EBONY/GR
€ 431.50
55048D
550485408T4
ref: 55048D
EUFGNRUK
COWLING.,CNT,EBONY/GR
€ 431.50
55048E
550485409H8
ref: 55048E
EUFGNRSPUK
COWLING.,LWR,EBONY
€ 302.00
55048E
550485409H8
ref: 55048E
EUFGNRUK
COWLING.,LWR,EBONY
€ 302.00
92001
920011617
ref: 92001
BOLT,FLANGED,10X60
920011617
€ 6.50
92001A
920011844
ref: 92001A
BOLT,FLANGED,10X41,BL
920011844
€ 5.00
92009
920091256
ref: 92009
SCREW,6X22,BLACK
920091256
€ 1.50
92009A
920091301
ref: 92009A
SCREW,5X16
920091301
€ 0.50
92009B
920091306
ref: 92009B
SCREW,6X18
€ 2.00
92009C
920091351
ref: 92009C
SCREW,6X35
920091351
€ 2.50
92009D
920091352
ref: 92009D
SCREW,6X40
920091352
€ 3.50
92009E
920091353
ref: 92009E
SCREW,6X55
920091353
€ 3.50
92015
920151339
ref: 92015
NUT,LOCK,FLANGED,6MM
920151339
€ 1.00
92015A
920151478
ref: 92015A
NUT
920151478
€ 9.00
92022
920221516
ref: 92022
WASHER,3.3X8X0.5
920221516
€ 1.50
92027
920271166
ref: 92027
COLLAR,FRONT FENDER
920271166
€ 4.00
92027A
920271450
ref: 92027A
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92027B
92027251
ref: 92027B
COLLAR,L=13.1
92027251
€ 1.00
92037
92037113
ref: 92037
CLAMP
92037113
€ 4.00
92039
920391041
ref: 92039
RIVET
920391041
€ 2.50
92071
92071024
ref: 92071
GROMMET
92071024
€ 3.00
92075
920751645
ref: 92075
DAMPER,COWLING,LH
920751645
€ 14.00
92075A
920751646
ref: 92075A
DAMPER,COWLING,RH
920751646
€ 14.50
92075B
92075174
ref: 92075B
DAMPER,MALE
92075174
€ 3.00
92075C
92075175
ref: 92075C
DAMPER,FEMALE
92075175
€ 2.50
