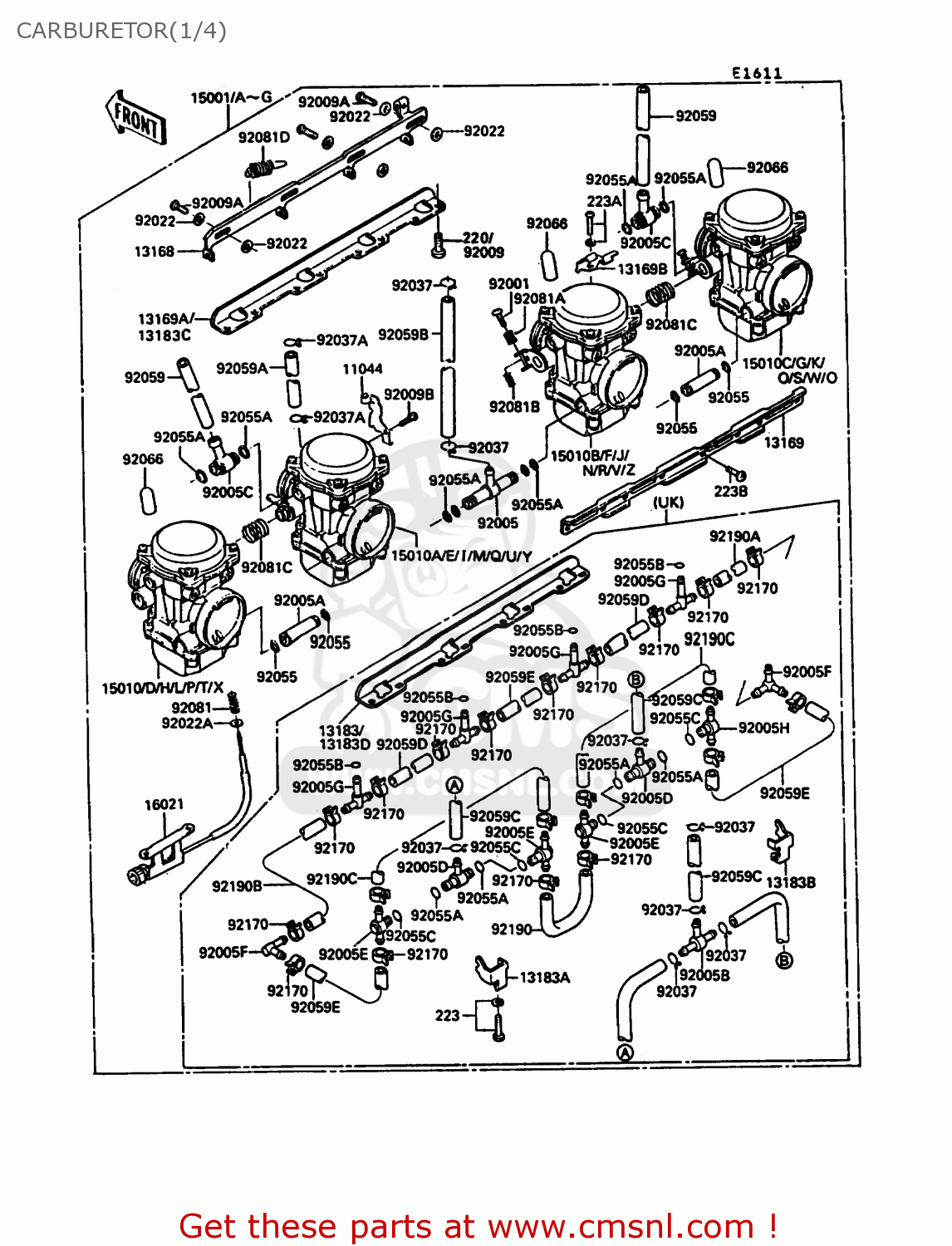

CARBURETOR(1/4)

ref

part #

description

quantity

11044

110441546
ref: 11044

BRACKET,THROTTLE CABL

€ 41.00

13168

131681245
ref: 13168

LEVER,STARTER

€ 95.50

13169

131691869
ref: 13169

PLATE,CARBURETOR STAY

€ 80.50

13169A

131691870
ref: 13169A
EUFGNRSDSP

PLATE,CARBURETOR STAY

€ 72.00

13169A

131691870
ref: 13169A
EUFGNRSD

PLATE,CARBURETOR STAY

€ 72.00

13169B

131691871
ref: 13169B

PLATE,STARTER CABLE

€ 16.00

13183

131831331
ref: 13183
UK

PLATE,CARBURETOR STAY

€ 44.50

13183A

131831468
ref: 13183A
UK

PLATE,LH

€ 10.00

13183B

131831469
ref: 13183B
UK

PLATE,RH

€ 9.00

13183C

131831760
ref: 13183C
EUFGNRSDSP

PLATE,CARBURETOR STAY,LWR,5MM

€ 0.00

13183C

131831760
ref: 13183C
EUFGNRSD

PLATE,CARBURETOR STAY,LWR,5MM

€ 0.00

13183D

131831779
ref: 13183D
UK

PLATE,CARBURETOR STAY,LWR,5MM

€ 0.00

15001

150011626
ref: 15001
EUNRSP

CARBURETOR-ASSY

€ 2,273.00

15001A

150011627
ref: 15001A
FG

CARBURETOR-ASSY,100PS

€ 1,865.00

15001B

150011628
ref: 15001B
UK

CARBURETOR-ASSY

€ 2,038.50

15001C

150011651
ref: 15001C
SD

CARBURETOR-ASSY,88PS

€ 1,412.50

15001D

150011738
ref: 15001D
EUNR

CARBURETOR-ASSY

€ 2,231.00

15001E

150011739
ref: 15001E
FG

CARBURETOR-ASSY,100PS

€ 2,231.00

15001F

150011740
ref: 15001F
UK

CARBURETOR-ASSY

€ 2,387.00

15001G

150011741
ref: 15001G
SD

CARBURETOR-ASSY,88PS

€ 2,231.00

15010

150101063
ref: 15010
EUNRSPUK

CARBURETOR,LH,OUTSIDE

€ 615.50

15010A

150101064
ref: 15010A
EUNRSPUK

CARBURETOR,LH,INSIDE

€ 487.00

15010B

150101065
ref: 15010B
EUNRSPUK

CARBURETOR,RH,INSIDE

€ 487.00

15010C

150101066
ref: 15010C
EUNRSPUK

CARBURETOR,RH,OUTSIDE

€ 487.00

15010D

150101067
ref: 15010D
FG

CARBURETOR,LH,OUTSIDE

€ 487.00

15010E

150101068
ref: 15010E
FG

CARBURETOR,LH,INSIDE

€ 487.00

15010F

150101069
ref: 15010F
FG

CARBURETOR,RH,INSIDE

€ 487.00

15010G

150101070
ref: 15010G
FG

CARBURETOR,RH,OUTSIDE

€ 450.00

15010H

150101075
ref: 15010H
SD

CARBURETOR,LH,OUTSIDE

€ 382.00

15010I

150101076
ref: 15010I
SD

CARBURETOR,LH,INSIDE

€ 382.00

15010J

150101077
ref: 15010J
SD

CARBURETOR,RH,INSIDE

€ 382.00

15010K

150101078
ref: 15010K
SD

CARBURETOR,RH,OUTSIDE

€ 382.00

15010L

150101192
ref: 15010L
EUNR

CARBURETOR,LH,OUTSIDE

€ 673.50

15010M

150101193
ref: 15010M
EUNR

CARBURETOR,LH,INSIDE

€ 673.50

15010N

150101194
ref: 15010N
EUNR

CARBURETOR,RH,INSIDE

€ 673.50

15010O

150101195
ref: 15010O
EUNR

CARBURETOR,RH,OUTSIDE

€ 673.50

15010P

150101196
ref: 15010P
FG

CARBURETOR,LH,OUTSIDE

€ 673.50

15010Q

150101197
ref: 15010Q
FG

CARBURETOR,LH,INSIDE

€ 673.50

15010R

150101198
ref: 15010R
FG

CARBURETOR,RH,INSIDE

€ 673.50

15010S

150101199
ref: 15010S
FG

CARBURETOR,RH,OUTSIDE

€ 673.50

15010T

150101200
ref: 15010T
UK

CARBURETOR,LH,OUTSIDE

€ 720.50

15010U

150101201
ref: 15010U
UK

CARBURETOR,LH,INSIDE

€ 720.50

15010V

150101202
ref: 15010V
UK

CARBURETOR,RH,INSIDE

€ 720.50

15010W

150101203
ref: 15010W
UK

CARBURETOR,RH,OUTSIDE

€ 720.50

15010X

150101204
ref: 15010X
SD

CARBURETOR,LH,OUTSIDE

€ 673.50

150100

150101207
ref: 150100
SD

CARBURETOR,RH,OUTSIDE

€ 673.50

15010Y

150101205
ref: 15010Y
SD

CARBURETOR,LH,INSIDE

€ 673.50

15010Z

150101206
ref: 15010Z
SD

CARBURETOR,RH,INSIDE

€ 673.50

16021

160211101
ref: 16021

SCREW-THROTTLE STOP

€ 83.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051108
ref: 92005
EUFGNRSDSP

FITTING,FUEL,T-TYPE

€ 16.50

92005

920051108
ref: 92005
EUFGNRSD

FITTING,FUEL,T-TYPE

€ 16.50

92005A

920051109
ref: 92005A
EUFGNRSDSP

FITTING,FUEL,I-TYPE

€ 25.00

92005A

920051109
ref: 92005A
EUFGNRSD

FITTING,FUEL,I-TYPE

€ 25.00

92005B

920051119
ref: 92005B
UK

FITTING,T-TYPE

€ 17.50

92005C

920051125
ref: 92005C

FITTING,T-TYPE

€ 18.00

92005D

920051190
ref: 92005D
UK

FITTING,T-TYPE

€ 17.50

92005E

920051192
ref: 92005E
UK

FITTING,T-TYPE

€ 17.50

92005F

920051193
ref: 92005F
UK

FITTING

€ 12.00

92005G

920051194
ref: 92005G
UK

FITTING,WATER

€ 22.50

92005H

920051199
ref: 92005H
UK

FITTING,T-TYPE

€ 7.50

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091262
ref: 92009A

SCREW

€ 4.00

92009B

920091365
ref: 92009B

SCREW

€ 4.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371075
ref: 92037
EUFGNRSDSP

CLAMP,FUEL INLET TUBE

€ 2.50

92037

920371075
ref: 92037
UK

CLAMP,FUEL INLET TUBE

€ 2.50

92037

920371075
ref: 92037
EUFGNRSD

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371477
ref: 92037A

CLAMP,TUBE

€ 3.00

92055

920551004
ref: 92055
EUFGNRSDSP

O RING

€ 2.50

92055

920551004
ref: 92055
EUFGNRSD

O RING

€ 2.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

223

223C0418
ref: 223
UK

SCREW-PAN-WS-CROS

€ 2.50

223A

223C0420
ref: 223A

SCREW-PAN-WS-CROS

€ 3.00

223B

223C0510
ref: 223B

SCREW-PAN-WS-CROS

€ 2.50

92055A

920551223
ref: 92055A
EUFGNRSDSP

RING-O,FUEL FITTING

€ 3.50

92055A

920551223
ref: 92055A
UK

RING-O,FUEL FITTING

€ 3.50

92055A

920551223
ref: 92055A
EUFGNRSD

RING-O,FUEL FITTING

€ 3.50

92055B

920551427
ref: 92055B
UK

RING-O,4.5X1.5

€ 3.00

92055C

920551454
ref: 92055C
UK

RING-O

€ 4.00

92059

920591376
ref: 92059

TUBE,6.5X9.5X290

€ 20.50

92059A

920591377
ref: 92059A

TUBE,5X9X180

€ 16.50

92059B

920591492
ref: 92059B
EUFGNRSDSP

TUBE,7.3X12.5X260

€ 25.00

92059B

920591492
ref: 92059B
EUFGNRSD

TUBE,7.3X12.5X260

€ 25.00

92059C

920591719
ref: 92059C
UK

TUBE,7.3X12.5X170

€ 25.00

92059D

920591976
ref: 92059D
UK

TUBE,4X10X59

€ 9.00

92059E

920591977
ref: 92059E
UK

TUBE,4X10X70

€ 9.00

92066

92068006
ref: 92066

RUBBER PLUG

€ 2.50

92081

920811617
ref: 92081

SPRING,THROTTLE STOP

€ 3.50

92081A

920811620
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811621
ref: 92081B

SPRING,THROTTLE ADJUS

€ 3.00

92081C

920811622
ref: 92081C

SPRING,THROTTLE ADJUS

€ 6.50

92081D

920811762
ref: 92081D

SPRING,STARTER LEVER

€ 14.00

92170

921701054
ref: 92170
UK

CLAMP,TUBE

€ 5.00

92190

921901028
ref: 92190
UK

TUBE

€ 7.50

92190A

921901032
ref: 92190A
UK

TUBE,L=40

€ 3.50

92190B

921901033
ref: 92190B
UK

TUBE,L=25

€ 9.00

92190C

921901038
ref: 92190C
UK

TUBE,L=320

€ 9.00

all assemblies
