FENDER
ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP

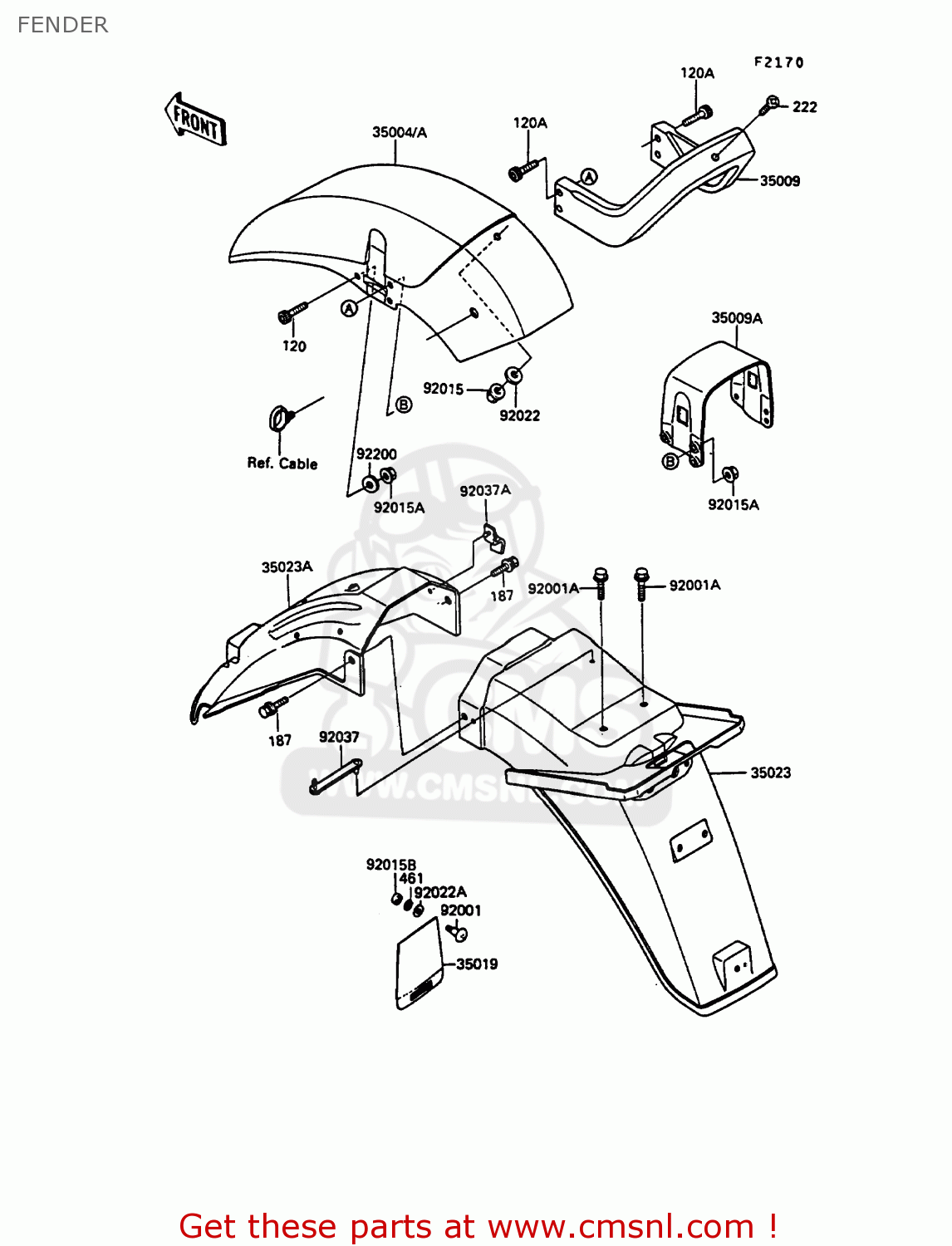

Fender diagram ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
FENDER ZX900A7 GPZ900R 1990 EUROPE UK FG NR SD SP
×
prices are in EUR
ref
part #
description
quantity
120
120P0630
ref: 120
BOLT,SOCKET,6X30
€ 4.50
120A
120P0635
ref: 120A
BOLT,SOCKET,6X35
€ 1.50
187
187B0622
ref: 187
BOLT-UPSET-WSP
€ 2.50
222
222B0620
ref: 222
SCREW-OVL CNTSNK,6X20
€ 2.50
461
461L0500
ref: 461
WASHER-SPRING
€ 0.50
35004
350041263M1
ref: 35004
FENDER-FRONT,BLACK/RE
€ 154.50
35004A
350041263P3
ref: 35004A
EUFGNRSPUK
FENDER-FRONT,BLACK/EB
€ 159.50
35004A
350041263P3
ref: 35004A
EUFGNRUK
FENDER-FRONT,BLACK/EB
€ 159.50
35009
350091054
ref: 35009
BRACE,FENDER
€ 74.50
35009A
350091084
ref: 35009A
BRACE
€ 59.00
35019
350191005
ref: 35019
FLAP,FENDER,RR
€ 15.50
35023
350231325
ref: 35023
FENDER-REAR,RR
€ 57.00
35023A
350231326
ref: 35023A
FENDER-REAR,FR
€ 63.00
92001
92001134
ref: 92001
BOLT,5X12
€ 3.00
92001A
920011870
ref: 92001A
BOLT,6X25
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151365
ref: 92015A
NUT,6MM
€ 3.00
92015B
920151446
ref: 92015B
NUT,5MM
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221581
ref: 92022A
WASHER,5.5X20X1.2
€ 1.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371532
ref: 92037A
CLAMP,HARNESS
€ 3.00
92200
922001013
ref: 92200
WASHER,10.3X20X1
€ 3.00
