TAIL LAMP
ZX900A1 1984 EUROPE UK FR GR IT NR SD

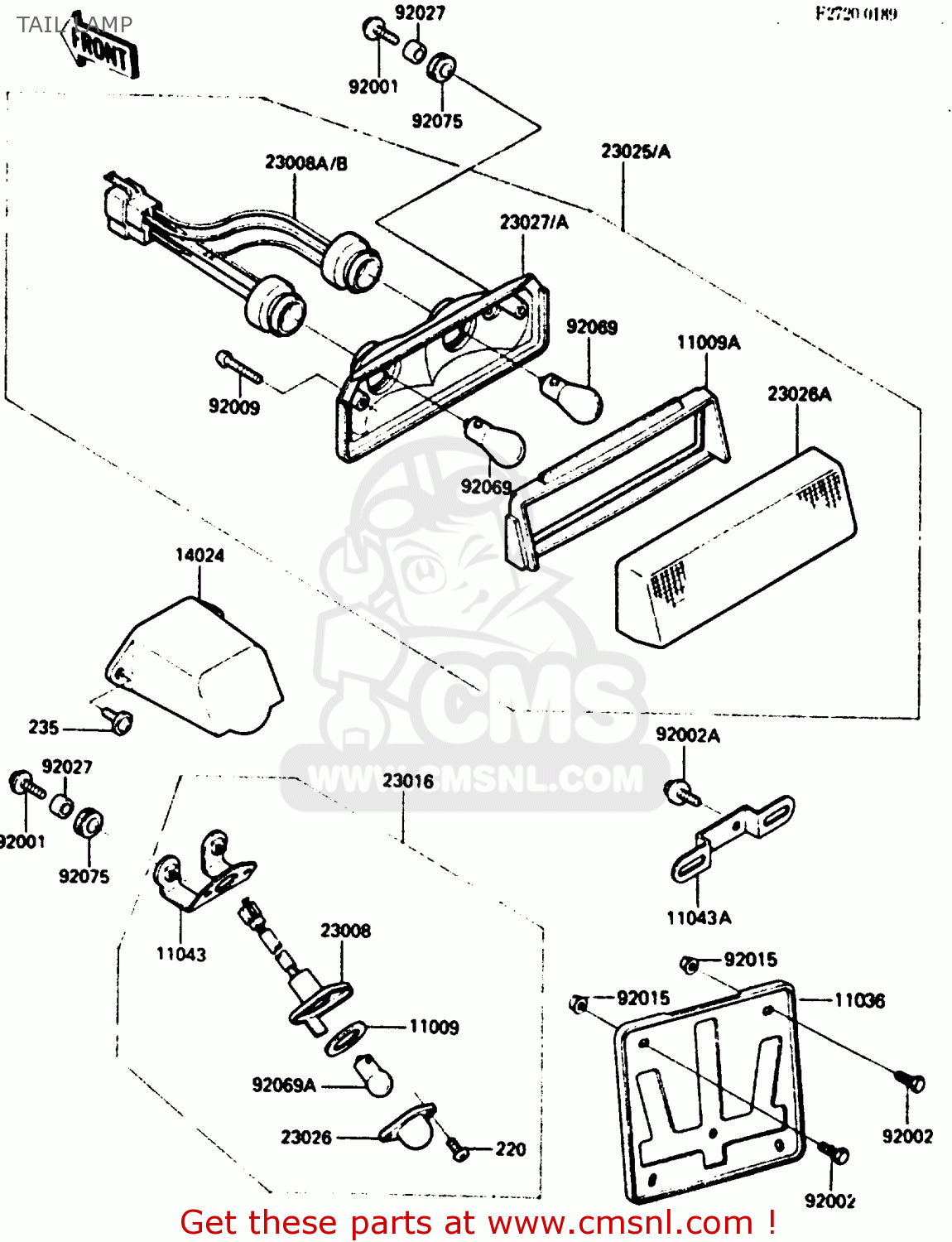

Tail lamp diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD
TAIL LAMP ZX900A1 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091404
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 13.00
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
€ 13.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
1043A
110431499
ref: 1043A
BRACKET,REFLECTOR
€ 12.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081225
ref: 23008A
EU, FR, GR, IT, NR,
SOCKET-ASSY,TAIL LAMP
€ 29.50
23008B
230081238
ref: 23008B
ST, WG
SOCKET-ASSY,TAIL LAMP
€ 22.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251106
ref: 23025
EU, FR, GR, IT, NR,
LAMP-TAIL
€ 192.50
23025A
230251107
ref: 23025A
ST, WG
LAMP-TAIL
€ 192.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261056
ref: 23026A
LENS,TAIL LAMP
€ 22.50
23027
230271055
ref: 23027
ST, WG
BODY-COMP-TAIL LAMP
€ 29.00
23027A
230271056
ref: 23027A
EU, FR, GR, IT, NR,
BODY-COMP-TAIL LAMP
€ 48.00
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021351
ref: 92002A
BOLT
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
€ 0.50
92027
92027120
ref: 92027
COLLAR
€ 3.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075222
ref: 92075
DAMPER RUBBER,CASE
€ 4.50
9220
220B0410
ref: 9220
SCREW-PAN-CROS
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
