MUFFLER
ZX900A1 1984 EUROPE UK FR GR IT NR SD

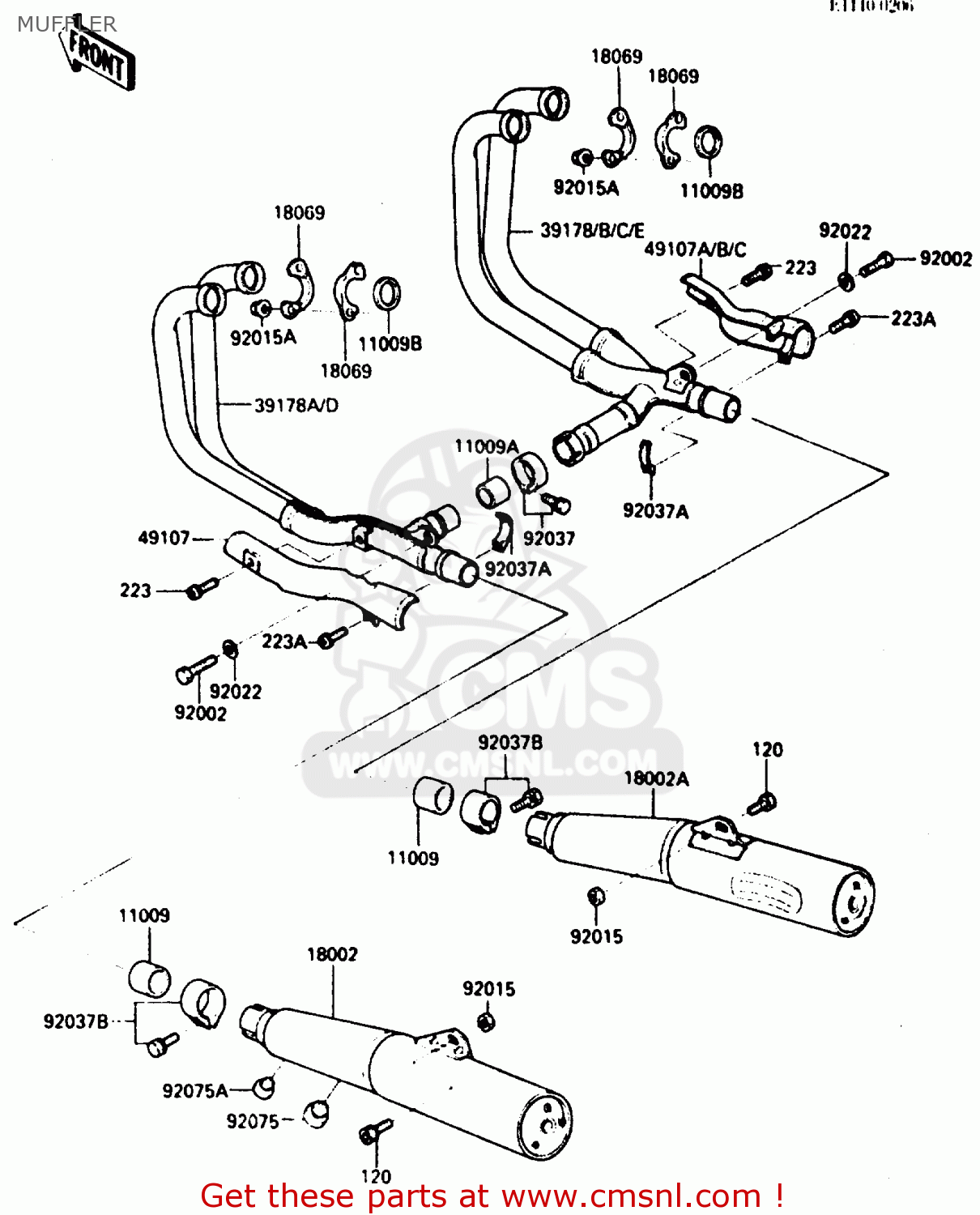

Muffler diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD
MUFFLER ZX900A1 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091104
ref: 11009
GASKET,MUFFLER (MCA)
€ 20.50
11009A
110091504
ref: 11009A
GASKET,EXHAUST PIPE C (MCA)
€ 20.00
11009B
18067013
ref: 11009B
GASKET-EXHAUST PIPE (NAS)
€ 7.00
18002
180021560
ref: 18002
BODY-COMP-MUFFLER,LH
€ 318.00
18002A
180021561
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 318.00
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
39178
391781055
ref: 39178
EU, FR, GR, IT, NR,
MANIFOLD-COMP-EXHAUST
€ 370.00
39178A
391781067
ref: 39178A
EU, FR, GR, IT, NR,
MANIFOLD-COMP-EXHAUST
€ 418.50
39178C
391781068
ref: 39178C
EU, FR, GR, IT, NR,
MANIFOLD-COMP-EXHAUST
€ 370.00
39178D
391781071
ref: 39178D
ST
MANIFOLD-COMP-EXHAUST
€ 329.50
39178E
391781072
ref: 39178E
ST
MANIFOLD-COMP-EXHAUST
€ 298.50
49107
491071053
ref: 49107
COVER-EXHAUST PIPE,LH
€ 73.00
49107A
491071054
ref: 49107A
COVER-EXHAUST PIPE,RH
€ 120.50
49107C
491071058
ref: 49107C
COVER-EXHAUST PIPE,RH
€ 73.00
92002
920021371
ref: 92002
BOLT
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151397
ref: 92015A
NUT,FLANGED,8MM
€ 2.50
92022
920221594
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92037A
920371506
ref: 92037A
CLAMP,EXHAUST PIPE CO
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
€ 4.00
120
120Z0820
ref: 120
BOLT-SOCKET,8X20
€ 2.50
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223C0620
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
