ENGINE COVER
ZX900A1 1984 EUROPE UK FR GR IT NR SD

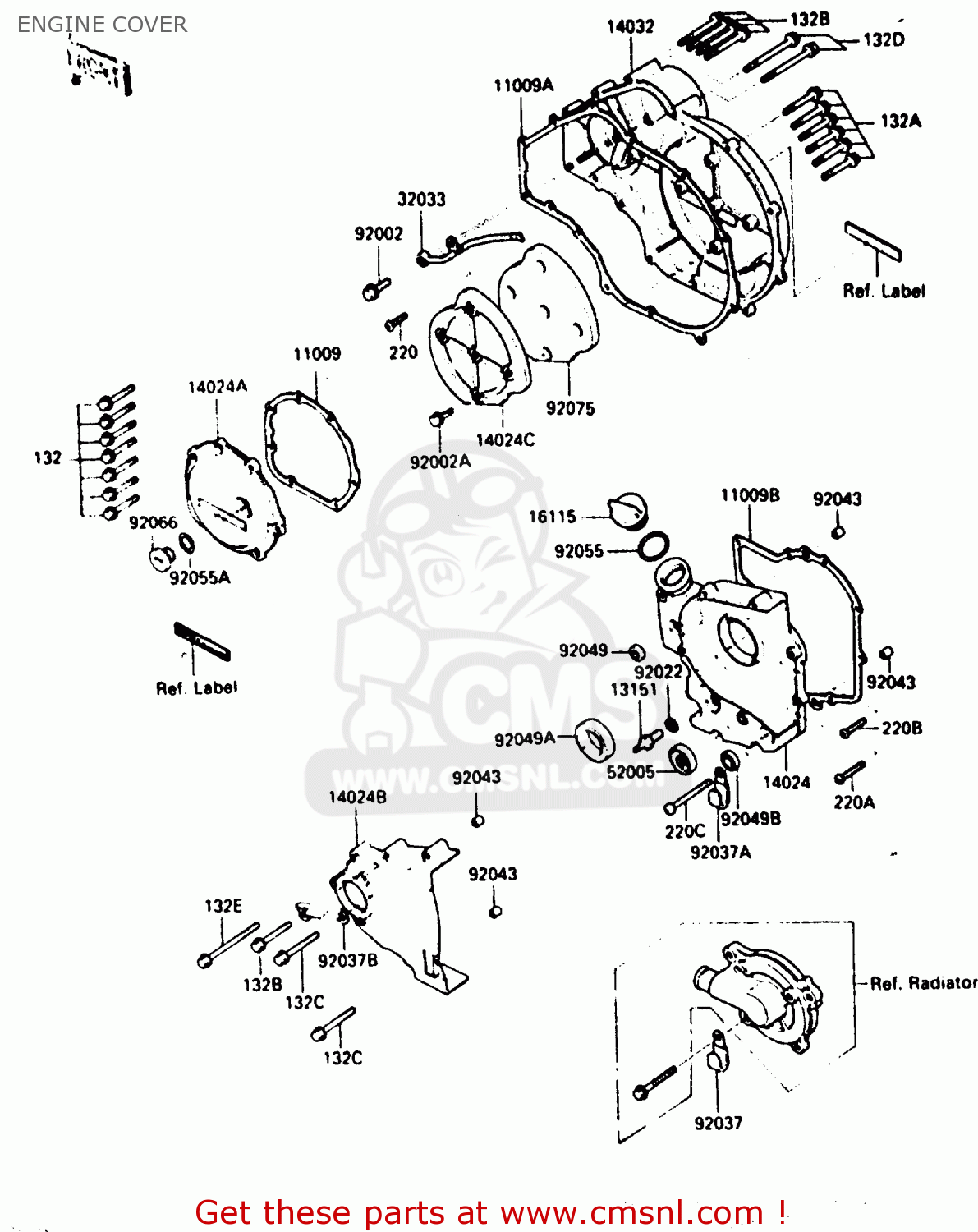

Engine cover diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD
ENGINE COVER ZX900A1 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091387
ref: 11009
GASKET,COVER,LH (MCA)
€ 6.50
11009A
110091388
ref: 11009A
GASKET,CLUTCH (MCA)
€ 9.50
11009B
110091391
ref: 11009B
GASKET,MISSION COVER (MCA)
€ 12.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
14024
140241166
ref: 14024
COVER,TRANSMISSION
€ 148.50
14024A
140251806
ref: 14024A
COVER,LH
€ 111.50
14024B
140251809
ref: 14024B
COVER,CHAIN
€ 114.00
14024C
140251895
ref: 14024C
COVER,SOUND ARRESTER
€ 14.50
14032
140321179
ref: 14032
COVER-CLUTCH
€ 240.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
€ 20.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92002
920011855
ref: 92002
BOLT,BANJO,8X20
€ 5.50
92002A
920021449
ref: 92002A
BOLT,6X10
€ 2.50
92022
920221208
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
€ 3.00
92037B
920371541
ref: 92037B
CLAMP,OIL HOSE
€ 9.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920661163
ref: 92066
PLUG,COVER,LH
€ 10.00
92075
920751633
ref: 92075
DAMPER,CLUTCH COVER
€ 81.00
132
132W0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132W0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0640
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132W0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132W0655
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132W0680
ref: 132E
BOLT-FLANGED-SMALL
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
€ 2.50
220B
220B0525
ref: 220B
SCREW-PAN-CROS,5X25
€ 2.50
220C
220B0650
ref: 220C
SCREW-PAN HEAD,6X50
€ 2.00
