FRONT FORK
ZX900A1 1984 EUROPE UK FR GR IT NR SD

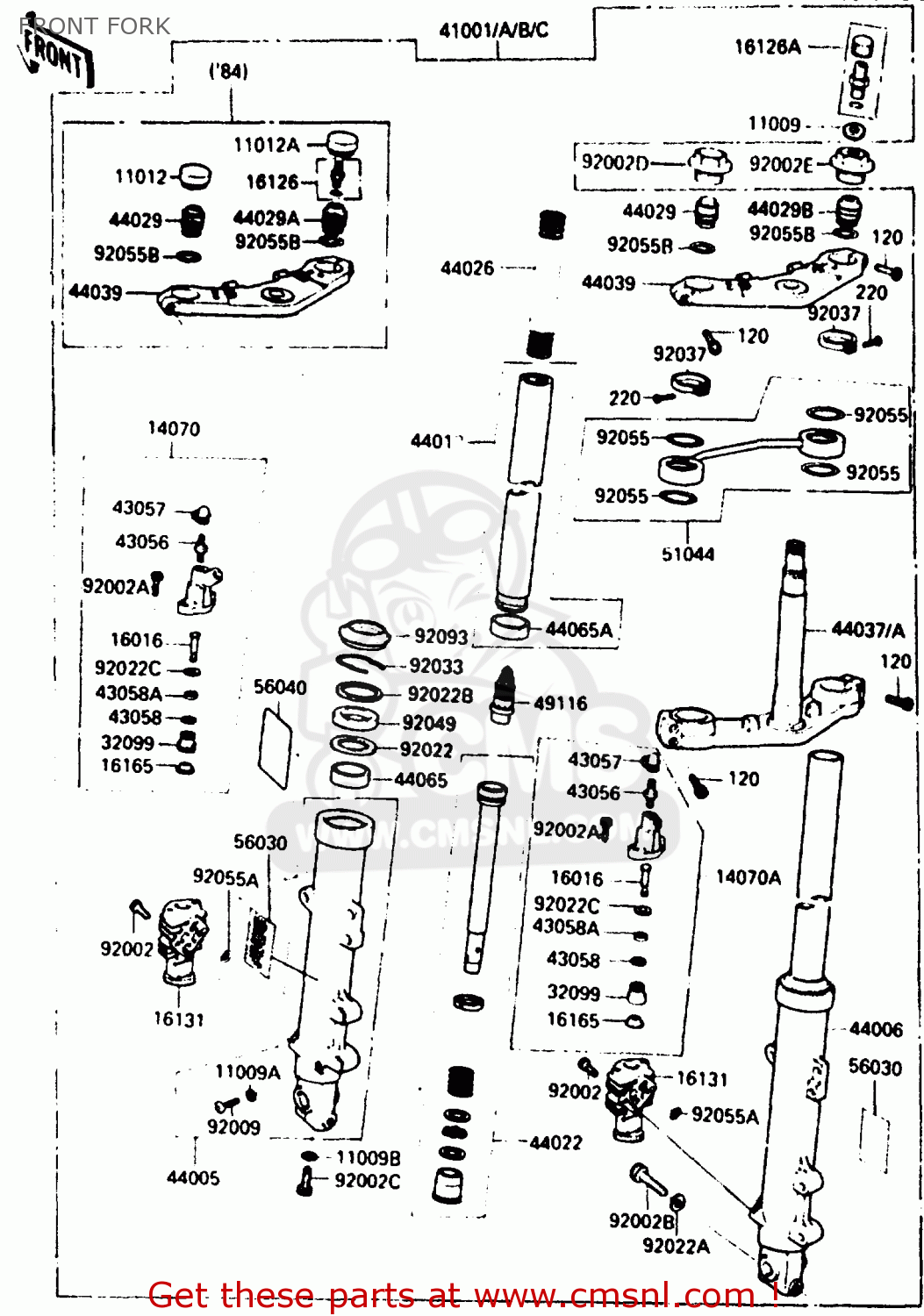

Front fork diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD
FRONT FORK ZX900A1 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11012
110121404
ref: 11012
CAP,FORK
€ 10.50
11012A
110121413
ref: 11012A
CAP,FORK
€ 10.00
14070
140701056
ref: 14070
BODY-BREATHER,ANTI-DI
€ 165.00
14070A
140701057
ref: 14070A
BODY-BREATHER,ANTI-DI
€ 165.00
16016
160161063
ref: 16016
PLUNGER,ANTI-DIVE
€ 22.00
16126
161261050
ref: 16126
VALVE AIR
€ 22.00
16131
161311057
ref: 16131
BODY-VALVE
€ 150.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
€ 6.00
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
€ 29.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
€ 2.50
44001
440011523
ref: 44001
E, FR, GR, IT, NR, S
FORK-FRONT
€ 1,621.00
44001A
440011551
ref: 44001A
SD
FORK-FRONT
€ 1,055.50
44005
440051217
ref: 44005
PIPE-LEFT FORK OUTER
€ 329.50
44006
440061217
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131219
ref: 44013
PIPE-FORK INNER
€ 296.00
44022
440221167
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261277
ref: 44026
SPRING-FRONT FORK
€ 54.00
44029
440291109
ref: 44029
SEAT-FORK SPRING,LH
€ 27.00
44029A
440291110
ref: 44029A
SEAT-FORK SPRING
€ 30.50
44037
440371156
ref: 44037
EU, FR, GR, IT, NR,
HOLDER-FORK UNDER
€ 276.00
44037A
440371167
ref: 44037A
SD
HOLDER-FORK UNDER
€ 276.00
44039
440391103
ref: 44039
HOLDER-FORK UPPER
€ 203.50
44065
440651012
ref: 44065
BUSHING,FORK OUT PIPE
€ 17.00
44065A
440651057
ref: 44065A
BUSHING,FRON.PIPE
€ 31.50
49116
491161055
ref: 49116
VALVE-ASSY,FORK
€ 80.00
51044
510441059
ref: 51044
TUBE-ASSY,AIR,FORK
€ 64.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
€ 2.50
56040
560401110
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92002
920021166
ref: 92002
BOLT,SOCKET,6X16
€ 4.50
92002A
920021289
ref: 92002A
BOLT,SOCKET,5X12
€ 2.50
92002B
920021316
ref: 92002B
BOLT
€ 3.50
92002C
920021317
ref: 92002C
BOLT
€ 4.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92022B
920221599
ref: 92022B
WASHER,FORK OUTER PIP
€ 4.50
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371277
ref: 92037
CLAMP,FRONT FORK
€ 6.00
92049
920491178
ref: 92049
SEAL-OIL,FORK
€ 18.50
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92055A
920551201
ref: 92055A
RING-O,AND
€ 1.00
92055B
920551250
ref: 92055B
RING-O,FORK SPRING SE
€ 2.50
92093
920931162
ref: 92093
SEAL,FORK
€ 18.00
120
120S0825
ref: 120
BOLT-SOCKET
€ 3.00
220
220E0414
ref: 220
SCREW-PAN-CROS
€ 2.00
