SUSPENSION

ZX900A1 1984 EUROPE UK FR GR IT NR SD

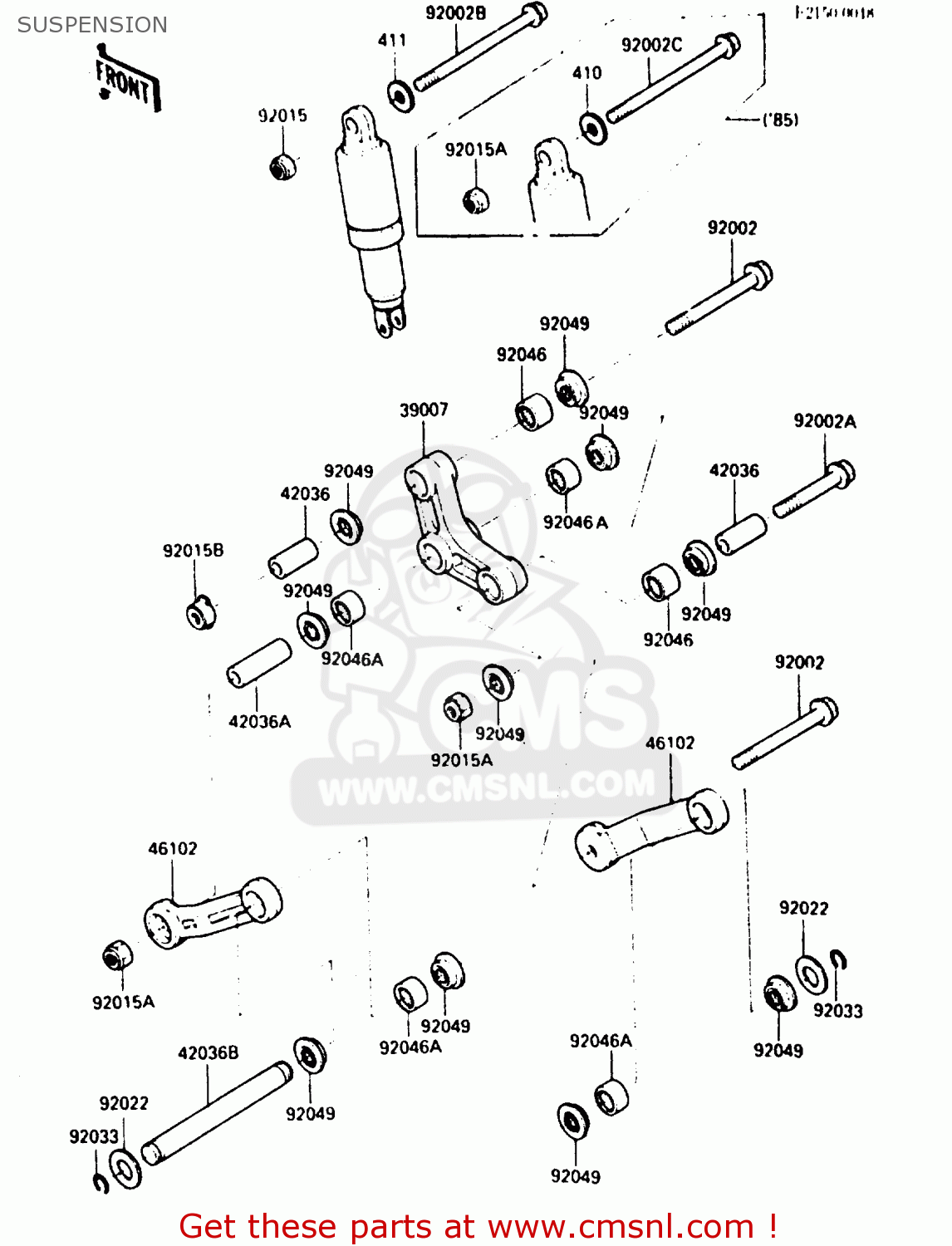

Suspension diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD

SUSPENSION ZX900A1 1984 EUROPE UK FR GR IT NR SD
SUSPENSION ZX900A1 1984 EUROPE UK FR GR IT NR SD
SUSPENSION ZX900A1 1984 EUROPE UK FR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
39007
390071055
ref: 39007
ARM-SUSP,UNI TRAK
390071055
€ 171.00
42036
420361108
ref: 42036
SLEEVE,12.1X20X40
420361108
€ 14.00
42036A
420361111
ref: 42036A
SLEEVE,12.5X20X50
420361111
€ 15.00
42036B
420361137
ref: 42036B
SLEEVE,L=146.9
420361137
€ 44.50
46102
461021108
ref: 46102
ROD,UNI TRAK
€ 142.50
92002
920021463
ref: 92002
BOLT,FLANGED,12X85
920021463
€ 12.50
92002A
920021464
ref: 92002A
BOLT,FLANGED,12X60
920021464
€ 8.50
92002B
920021465
ref: 92002B
BOLT,FLANGED,10X130
920021465
€ 8.00
92015
920151186
ref: 92015
NUT,SPRING ADJUST
€ 51.00
92015A
920151190
ref: 92015A
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92015B
920151482
ref: 92015B
NUT,12MM
€ 8.50
92022
920221590
ref: 92022
WASHER
920221590
€ 4.50
92033
920331168
ref: 92033
RING-SNAP,18.3MM
920331168
€ 3.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
411B1000
€ 0.50
