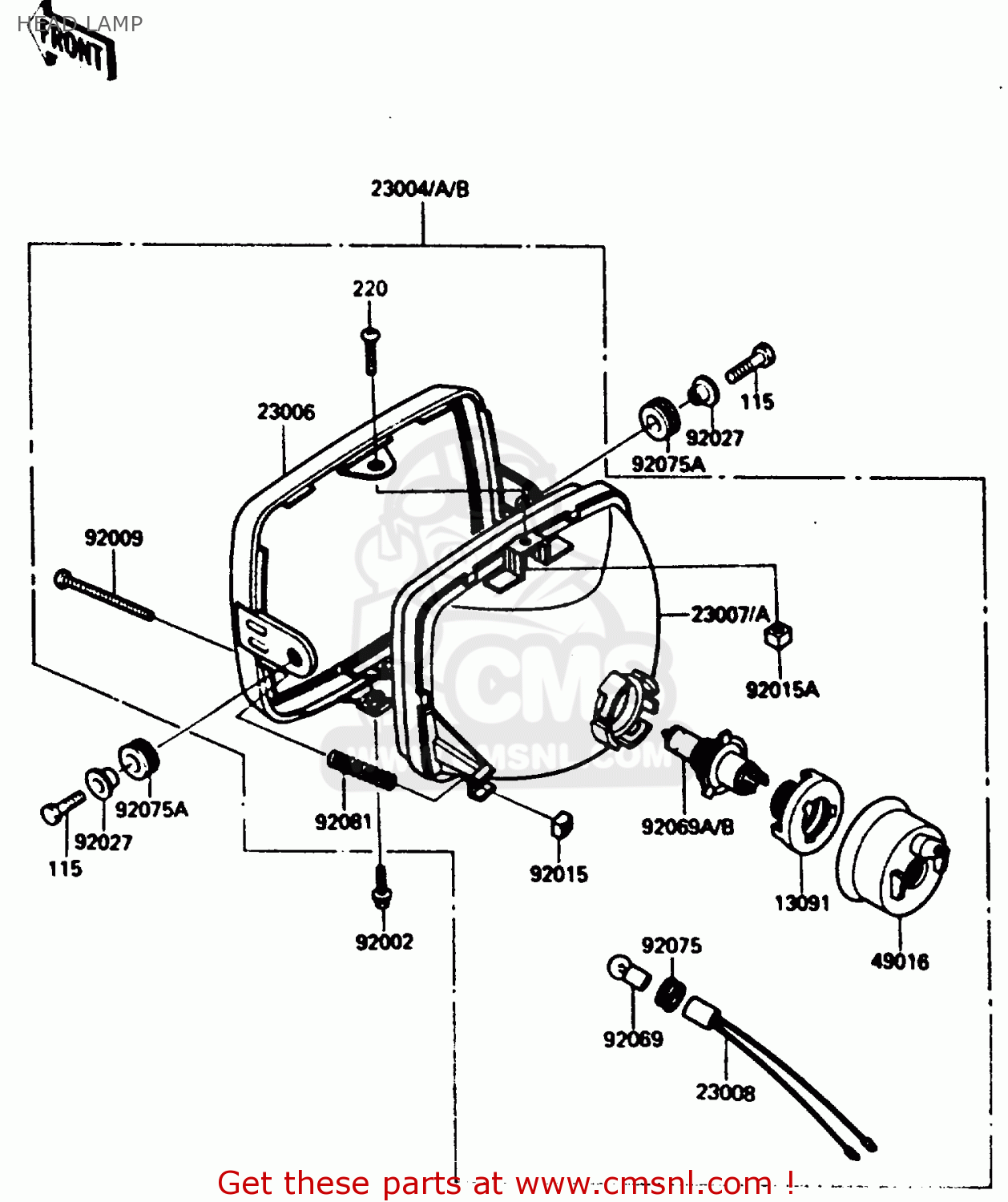

HEAD LAMP

ref

part #

description

quantity

13091

130911036
ref: 13091

HOLDER,HEAD LAMP SOCK

€ 12.50

23004

230041166
ref: 23004
EU, GR, IT, NR, SD,

LAMP-HEAD

€ 633.00

23004A

230041167
ref: 23004A
FR

LAMP-HEAD

€ 653.50

23004B

230041168
ref: 23004B
UK

LAMP-HEAD

€ 822.00

23006

230061054
ref: 23006

RIM-LAMP

€ 78.50

23007

230071113
ref: 23007
EU, FR, GR, IT, NR,

LENS-COMP

€ 142.00

23007A

230071114
ref: 23007A
UK

LENS-COMP

€ 153.00

23008

23008038
ref: 23008

SOCKET-ASSY,PARKING L

€ 7.50

49016

490161023
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.50

92002

920021350
ref: 92002

BOLT

€ 2.50

92009

920091047
ref: 92009

SCREW,HEAD LAMP LENS

€ 3.00

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151157
ref: 92015A

NUT,5MM

€ 3.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92069

ref: 92069

92069A

920691002
ref: 92069A
EU, GR, IT, NR, SD,

BULB,12V-60155W

€ 15.00

92069B

ref: 92069B
FR

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751569
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.50

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

115

115B0825
ref: 115

BOLT SMALL UPSET 8X25

€ 3.00

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

all assemblies
