Genuine ZX Kawasaki Parts delivered quickly!


FENDER

ZX900A1 1984 EUROPE UK FR GR IT NR SD

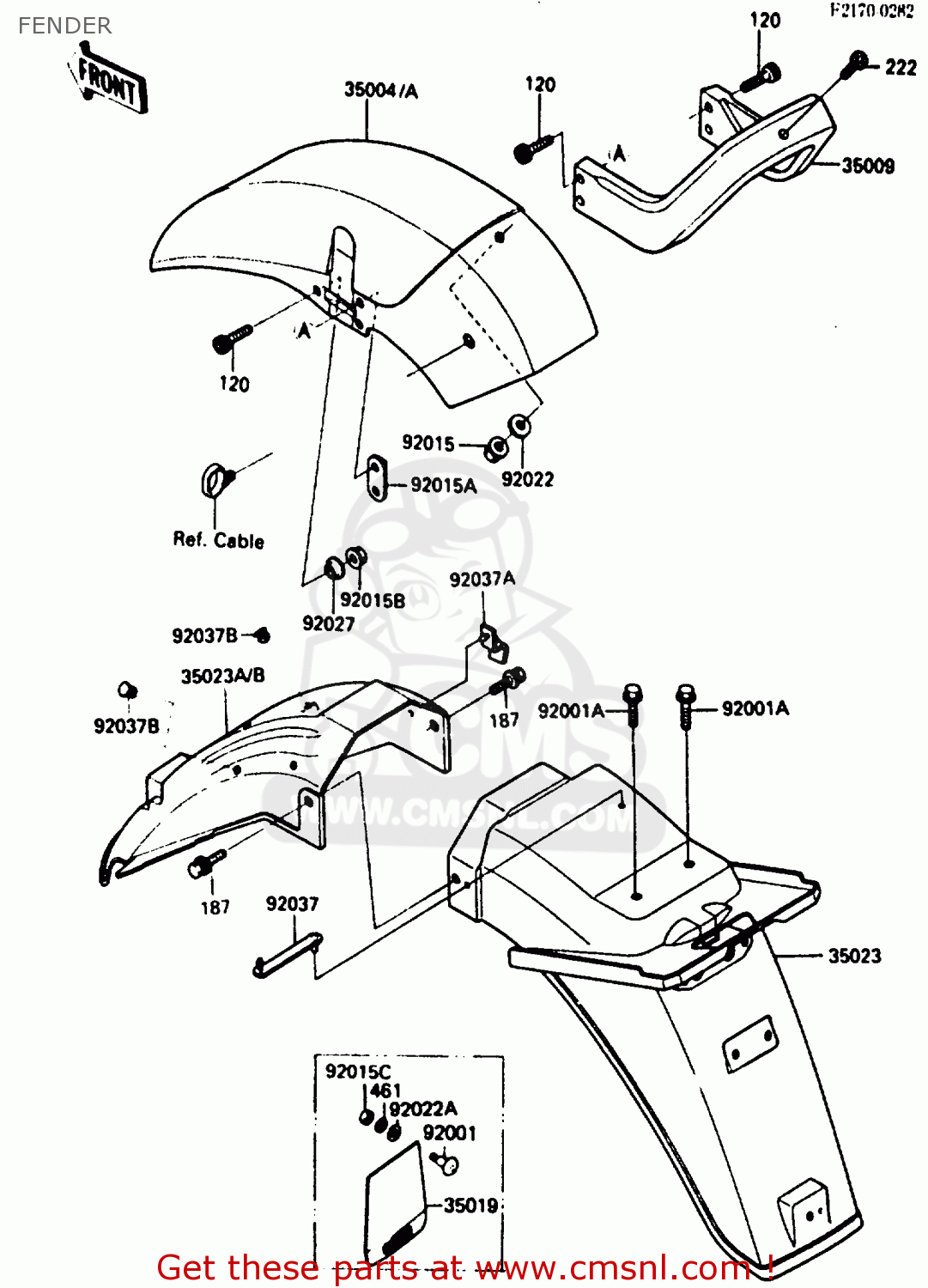

Fender diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD

FENDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
FENDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
FENDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
35004
350041155M1
ref: 35004
FENDER-FRONT,F.BLACK/
350041155M1
€ 167.00
35004A
350041155M3
ref: 35004A
FENDER-FRONT,F.BLACK/
€ 167.00
35009
350091054
ref: 35009
BRACE,FENDER
350091054
€ 74.50
35019
350191005
ref: 35019
FLAP,FENDER,RR
350191005
€ 15.50
35023
3502311076Z
ref: 35023
FENDER-REAR,RR,BLACK
3502311076Z
€ 57.00
35023A
350231122
ref: 35023A
FENDER-REAR,FR
350231122
€ 59.00
92001
92001134
ref: 92001
BOLT,5X12
92001134
€ 3.00
92001A
920011870
ref: 92001A
BOLT,6X25
920011870
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151345
ref: 92015A
NUT,FENDER
920151345
€ 8.00
92015B
920151365
ref: 92015B
NUT,6MM
920151365
€ 3.00
92015C
920151446
ref: 92015C
NUT,5MM
920151446
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
920221581
ref: 92022A
WASHER,5.5X20X1.2
920221581
€ 1.50
92027
92027118
ref: 92027
COLLAR-CRANKSHAFT
92027118
€ 2.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037A
920371352
ref: 92037A
CLAMP,OIL TUBE
€ 2.00
92037B
920371379
ref: 92037B
CLAMP
920371379
€ 7.00
120
120P0630
ref: 120
BOLT,SOCKET,6X30
120P0630
€ 4.50
187
187B0622
ref: 187
BOLT-UPSET-WSP
€ 2.50
222
222B0620
ref: 222
SCREW-OVL CNTSNK,6X20
222B0620
€ 2.50
461
461L0500
ref: 461
WASHER-SPRING
€ 0.50
