REAR MASTER CYLINDER

ZX900A1 1984 EUROPE UK FR GR IT NR SD

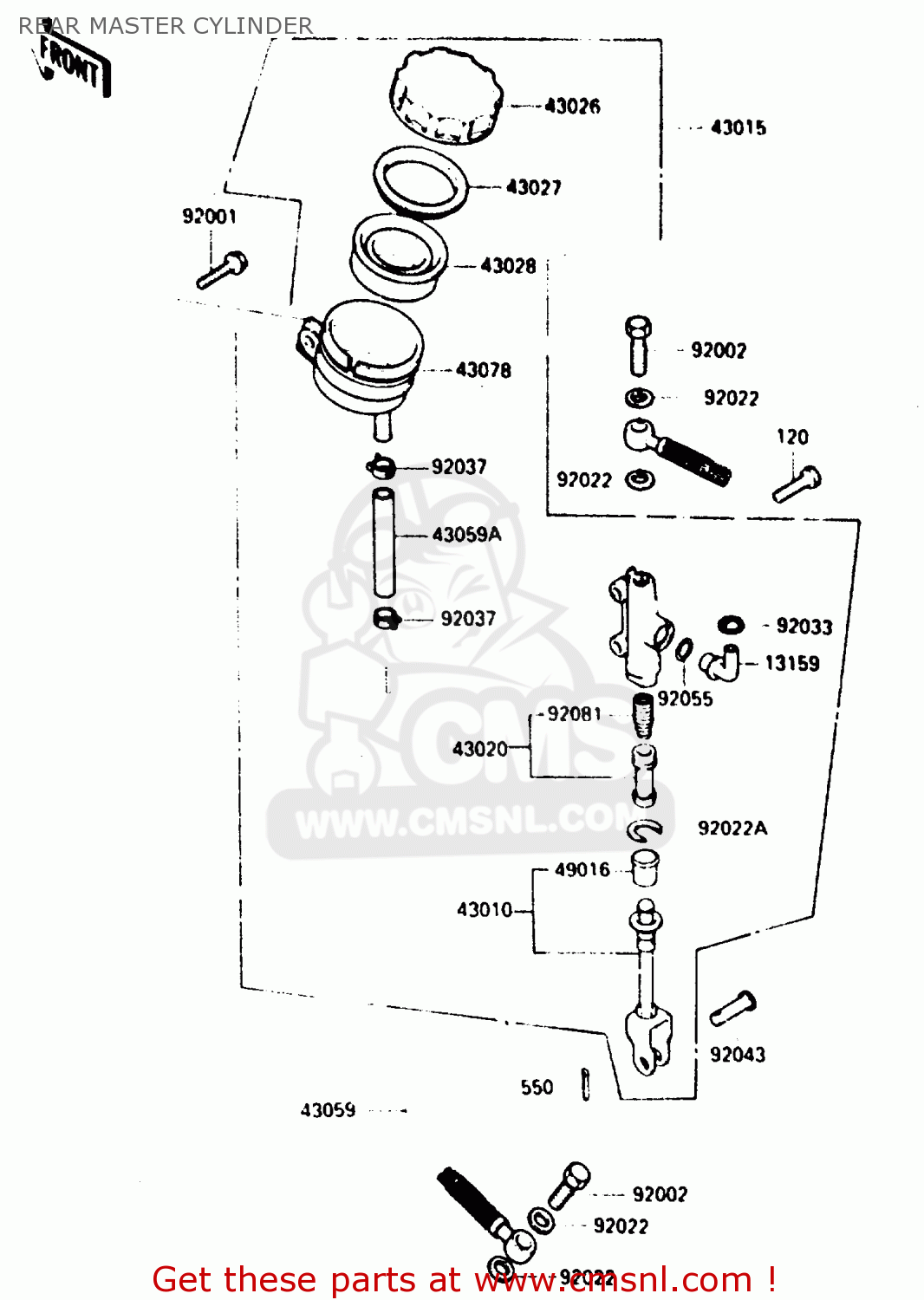

Rear master cylinder diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD

REAR MASTER CYLINDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
REAR MASTER CYLINDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
REAR MASTER CYLINDER ZX900A1 1984 EUROPE UK FR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101053
ref: 43010
ROD-ASSY-BRAKE
430101053
€ 55.00
43015
430151261
ref: 43015
CYLINDER-ASSY-MASTER,
€ 366.50
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591261
ref: 43059
HOSE-BRAKE,RR,L=520
430591261
€ 62.00
43059A
430591283
ref: 43059A
HOSE-BRAKE,L=50
430591283
€ 17.00
43078
430781054
ref: 43078
RESERVOIR
€ 19.00
49016
490161103
ref: 49016
COVER-SEAL
490161103
€ 11.00
92001
920011460
ref: 92001
BOLT,6X20
920011460
€ 2.50
92002
920011900
ref: 92002
BOLT,OIL,L=23
920011900
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
120
120P0835
ref: 120
BOLT-SOCKET,8X35
120P0835
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
