RADIATOR
ZX900A1 1984 EUROPE UK FR GR IT NR SD

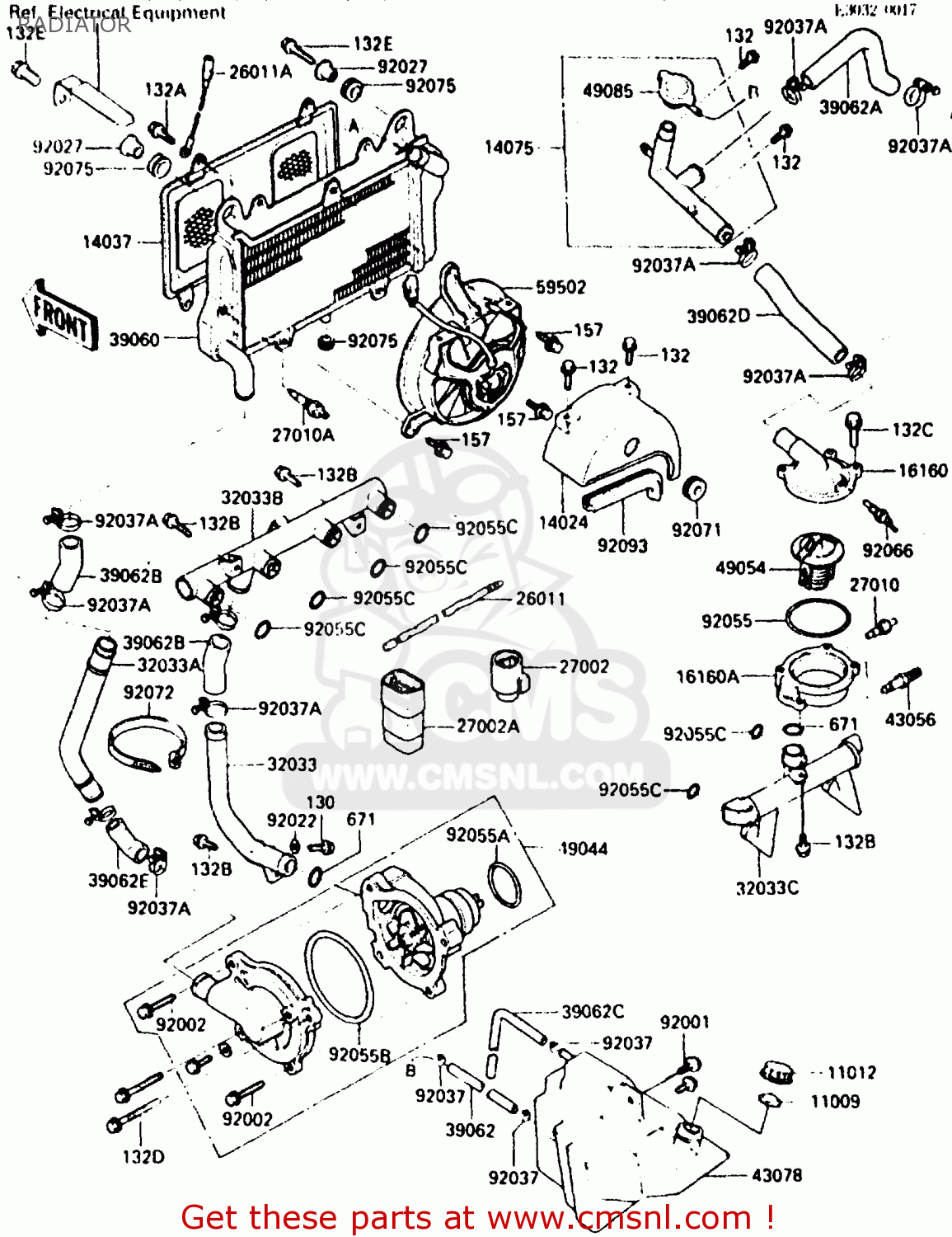

Radiator diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD
RADIATOR ZX900A1 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140251892
ref: 14024
COVER,FAN
€ 111.00
14037
140371063
ref: 14037
SCREEN,RADIATOR
€ 62.50
14075
140751055
ref: 14075
CAP-ASSY,RADIATOR
€ 160.00
16160
161601067
ref: 16160
BODY,THERMOSTAT,UPP
€ 52.00
16160A
161601068
ref: 16160A
BODY,THERMOSTAT,LWR
€ 63.50
26011
260111204
ref: 26011
WIRE-LEAD,OIL TEMPERA
€ 8.00
26011A
260111282
ref: 26011A
WIRE-LEAD
€ 7.50
27002
270021054
ref: 27002
RELAY-ASSY
€ 31.50
27002A
270021055
ref: 27002A
RELAY-ASSY
€ 53.00
27010
270101036
ref: 27010
SWITCH,FAN
€ 75.00
27010A
270101167
ref: 27010A
SWITCH,FAN
€ 108.50
32033
320331206
ref: 32033
PIPE
€ 98.00
32033A
320331207
ref: 32033A
PIPE
€ 50.00
32033B
320331262
ref: 32033B
PIPE
€ 124.50
32033C
320331719
ref: 32033C
PIPE
€ 102.00
39060
390601059
ref: 39060
RADIATOR-ASSY
€ 718.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621070
ref: 39062A
HOSE-COOLING
€ 23.50
39062B
390621072
ref: 39062B
HOSE-COOLING
€ 14.00
39062C
390621075
ref: 39062C
HOSE-COOLING
€ 17.50
39062D
390621091
ref: 39062D
HOSE-COOLING
€ 25.50
39062E
390621092
ref: 39062E
HOSE-COOLING
€ 14.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781053
ref: 43078
RESERVOIR
€ 66.00
49044
490441058
ref: 49044
PUMP-WATER
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021053
ref: 59502
FAN-ASSY
€ 655.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371669
ref: 92037A
CLAMP,COOLING HOSE
€ 12.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
€ 7.00
92055C
920551282
ref: 92055C
RING-O
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92071
920711116
ref: 92071
GROMMET
€ 3.50
92072
920721197
ref: 92072
BAND
€ 5.00
92075
920751569
ref: 92075
DAMPER,HEAD LAMP FITT
€ 3.50
92093
920931168
ref: 92093
SEAL,FAN COVER
€ 15.00
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
132
132W0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0610
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132W0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132W0620
ref: 132C
BOLT-FLANGED-SMALL
€ 2.00
132D
132W0640
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132W0825
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
157
157J0616
ref: 157
BOLT-WSP
€ 1.00
671
671B2525
ref: 671
O RING,25MM
€ 3.00
