Genuine ZX Kawasaki Parts delivered quickly!


COWLING (ZX900-A1)

ZX900A1 1984 EUROPE UK FR GR IT NR SD

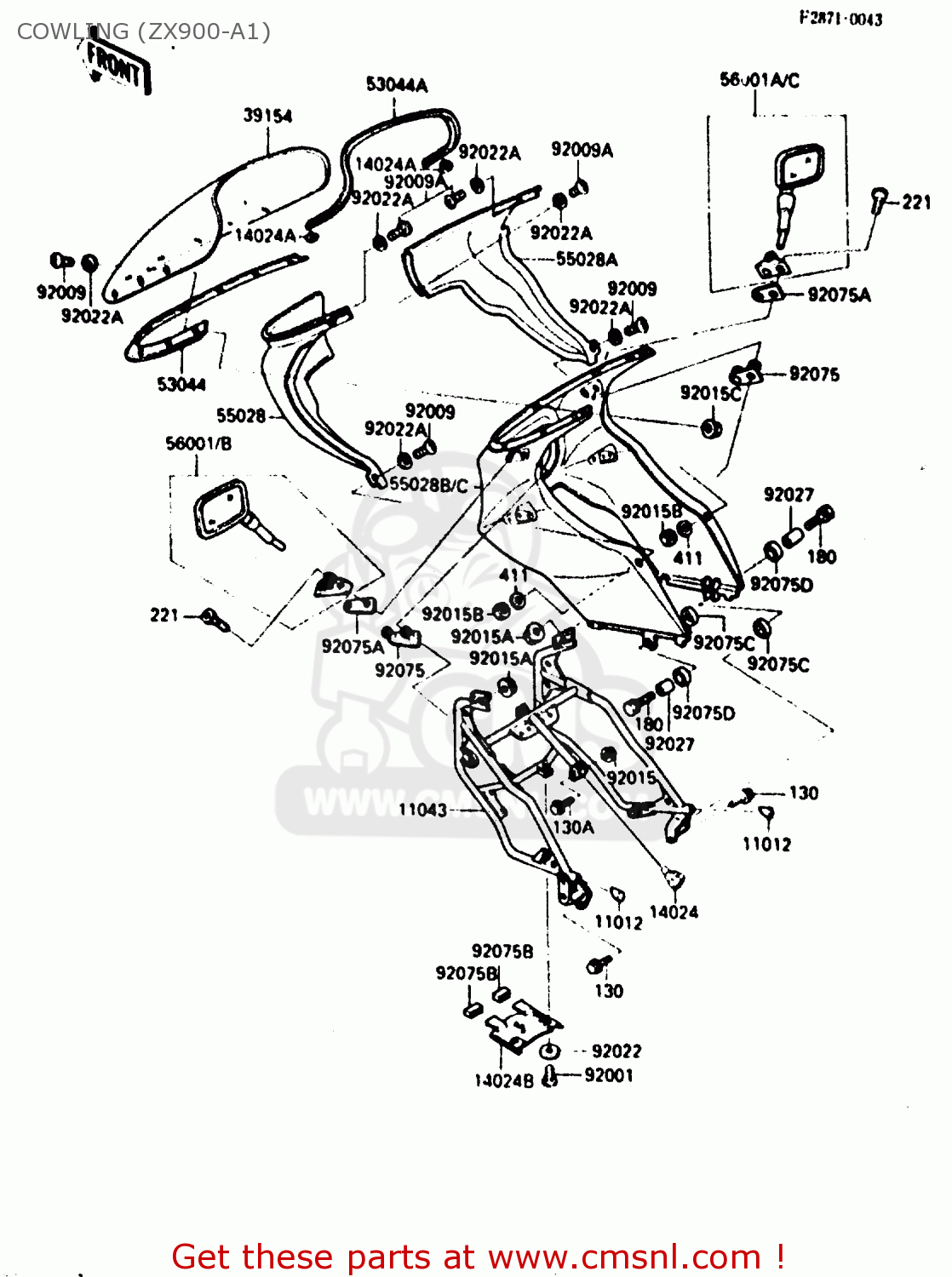

Cowling (zx900-a1) diagram ZX900A1 1984 EUROPE UK FR GR IT NR SD

COWLING (ZX900-A1) ZX900A1 1984 EUROPE UK FR GR IT NR SD
COWLING (ZX900-A1) ZX900A1 1984 EUROPE UK FR GR IT NR SD
COWLING (ZX900-A1) ZX900A1 1984 EUROPE UK FR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11012
110121401
ref: 11012
CAP,COWLING BRACKET
110121401
€ 6.50
11043
110431452
ref: 11043
BRACKET,COWLING BODY
110431452
€ 295.00
14024
140251718
ref: 14024
COVER,COWLING BRACKET
140251718
€ 9.50
14024A
140251756
ref: 14024A
COVER,TRIM END
140251756
€ 4.50
14024B
140251823
ref: 14024B
COVER,HEAD LAMP
140251823
€ 26.50
39154
391541051
ref: 39154
WINDSHIELD
€ 222.00
53044
530441119
ref: 53044
TRIM,INNER COWLING
530441119
€ 39.50
53044A
530441120
ref: 53044A
TRIM,WINDSHIELD
530441120
€ 20.50
55028
550281066
ref: 55028
COWLING,UPP,INNER,LH
550281066
€ 52.50
55028A
550281067
ref: 55028A
COWLING,UPP,INNER,RH
550281067
€ 45.50
55028B
550285049B1
ref: 55028B
COWLING,UPP,OUTER,F.R
550285049B1
€ 991.00
55028C
550285051M4
ref: 55028C
COWLING,UPP,OUTER,L.P
€ 991.00
56001
560011221
ref: 56001
FR, UK
MIRROR-ASSY,LH
560011221
€ 61.50
56001A
560011222
ref: 56001A
FR, UK
MIRROR-ASSY,RH
€ 61.50
56001B
560011224
ref: 56001B
EU, GR, IT, NR, SD,
MIRROR-ASSY,LH
560011224
€ 61.50
56001C
560011225
ref: 56001C
EU, GR, IT, NR, SD,
MIRROR-ASSY,RH
560011225
€ 61.50
92001
920011782
ref: 92001
BOLT,6X14
920011782
€ 2.50
92009
920091301
ref: 92009
SCREW,5X16
920091301
€ 0.50
92009A
920091335
ref: 92009A
SCREW,5X10
920091335
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015B
920151259
ref: 92015B
NUT,FLANGED,5MM
920151259
€ 2.50
92015C
920151343
ref: 92015C
NUT,5MM,COWLING
920151343
€ 3.00
92022
920221342
ref: 92022
WASHER,6.5X16X2
920221342
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92075
920751492
ref: 92075
DAMPER,MIRROR
920751492
€ 5.00
92075A
920751500
ref: 92075A
DAMPER,MIRROR
920751500
€ 5.50
92075B
920751602
ref: 92075B
DAMPER,COWLING
920751602
€ 3.00
92075C
92075174
ref: 92075C
DAMPER,MALE
92075174
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
92075175
€ 2.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0830
ref: 130A
BOLT-FLANGED,8X30
130J0830
€ 2.50
180
180B0625
ref: 180
BOLT-UPSET-WS
180B0625
€ 2.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
221C0630
€ 1.00
411
411B0500
ref: 411
WASHER-PLAIN,5MM
411B0500
€ 0.50
