MUFFLER
ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

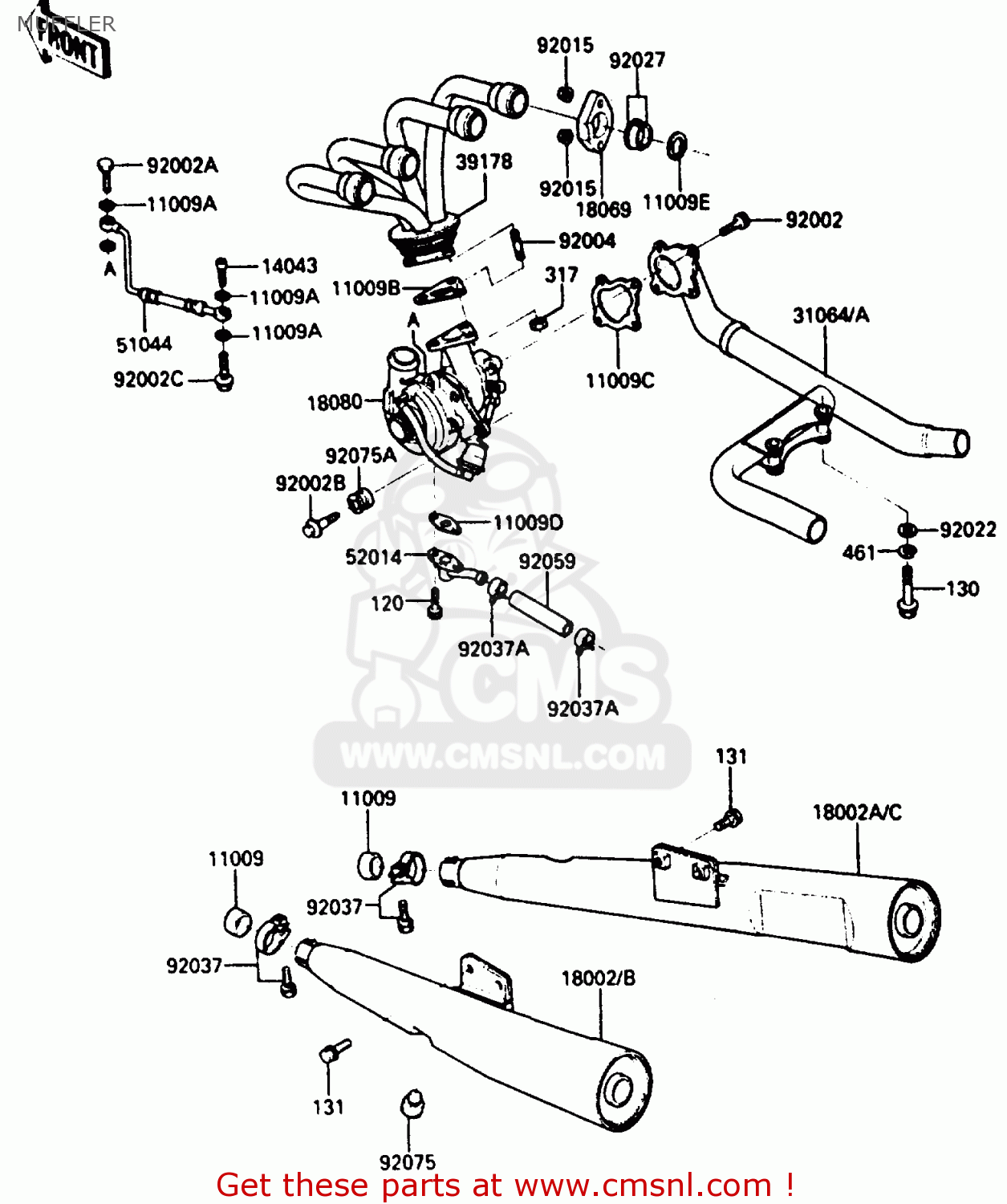

Muffler diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
MUFFLER ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091002
ref: 11009
GASKET,EXH PIPE CONT (MCA)
€ 20.50
11009A
110091105
ref: 11009A
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009B
110091353
ref: 11009B
GASKET,EXHAUST MANIFO (NAS)
€ 4.50
11009C
110091354
ref: 11009C
GASKET,PIPE COMP (NAS)
€ 12.50
11009D
110091358
ref: 11009D
GASKET,ELBOW (MCA)
€ 3.00
11009E
110091408
ref: 11009E
GASKET,EXHAUST PIPE H (MCA)
€ 12.50
14043
140431052
ref: 14043
FILTER,OIL
€ 16.50
18002
180021510
ref: 18002
EU, FR, GR, IT, NR,
BODY-COMP-MUFFLER,LH
€ 333.00
18002A
180021511
ref: 18002A
EU, FR, GR, IT, NR,
BODY-COMP-MUFFLER,RH
€ 333.00
18002B
180021512
ref: 18002B
SD
BODY-COMP-MUFFLER,LH
€ 164.00
18002C
180021513
ref: 18002C
SD
BODY-COMP-MUFFLER,RH
€ 232.00
18069
180691029
ref: 18069
HOLDER-EXHAUST PIPE,F
€ 15.00
18080
180801052
ref: 18080
TURBOCHARGER-ASSY
€ 2,779.00
31064
310641055
ref: 31064
EU, FR, GR, IT, NR,
PIPE-COMP
€ 260.50
31064A
310641056
ref: 31064A
ST
PIPE-COMP
€ 221.50
39178
391781073
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 412.50
51044
510441051
ref: 51044
TUBE-ASSY
€ 70.50
52014
520141051
ref: 52014
ELBOW
€ 31.50
92002
920021146
ref: 92002
BOLT,SOCKET,8X16
€ 2.50
92002A
920021147
ref: 92002A
BOLT,BANJO,10X26
€ 6.00
92002B
920021148
ref: 92002B
BOLT
€ 6.00
92002C
920021172
ref: 92002C
BOLT,10X35
€ 7.00
92004
920041130
ref: 92004
STUD,8X18
€ 6.50
92015
920151360
ref: 92015
NUT,10MM
€ 3.00
92022
920221341
ref: 92022
WASHER,10.5X26X2.3,BL
€ 2.00
92027
920271456
ref: 92027
COLLAR,L=14.5,BLACK
€ 3.00
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92037A
920371460
ref: 92037A
CLAMP
€ 7.50
92059
920591360
ref: 92059
TUBE,15X22.4X95
€ 15.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
920751563
ref: 92075A
DAMPER
€ 3.50
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
130
130J0855
ref: 130
BOLT-FLANGED,8X55
€ 2.50
131
131J0825
ref: 131
BOLT-FLANGED,8X20,BLA
€ 2.00
317
317R0800
ref: 317
NUT-HEX-SMALL
€ 1.00
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
